Open the housing as described previously (6.1.1 How
to open the housing, page 6).

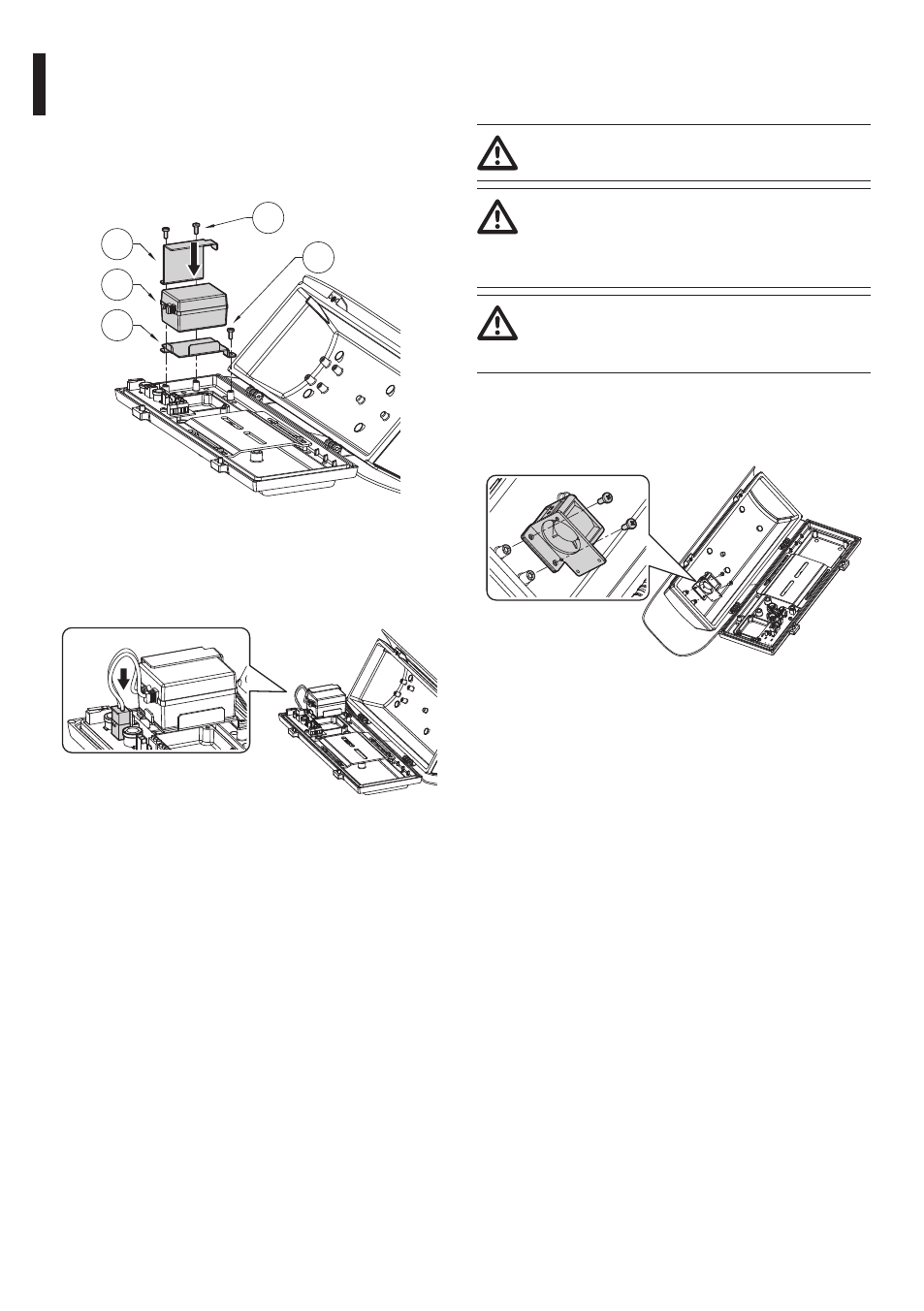

Fix the support bracket (02) using the screw (01).
Place the power supply (03) on the support bracket.
Secure it all with the screws (04) and the corner fixing
bracket.
04
02
03
05
01
Fig. 11
Plug the multipolar female connector into the
corresponding male connector (J7, 6.1.3 Board
description, page 7).
Fig. 12
Close the housing.
7.3 Blower
7.3.1 Blower installation
Not usable in housings with cooling device
and wiper installed.
Pay attention to the voltage value used
when the circuit is powered. Depending on
requirements use the correct power supply
kit.
The blower kit should be assembled
according to the instructions to ensure a
correct air circulation inside the housing.
Open the housing as described previously (6.1.1 How
to open the housing, page 6).
Fix the blower using the corner bracket and screws.
Fig. 13
Plug the multipolar female connector into the
corresponding male connector (J8, 6.1.3 Board
description, page 7).
Close the housing.
