Instruc
tions manual - English - EN
5
10 Troubleshooting
Ask for assistance from skilled personnel if:
• The unit is damaged after being dropped;
• There is noticeable deterioration in performance
of the unit.
• The unit does not work properly, even though
all the instructions in this handbook have been
followed.
PROBLEM There is no power.
CAUSE Fuses blown.
SOLUTION Make sure the power supply data
plate values coincide with the values
for the installation. Check whether
the green LED inside the box comes
on. Make sure there are no current
overloads or short circuits. Change
the fuses.
PROBLEM The unit does not allow the
Day/Night changeover of the
P&T.
CAUSE Incorrect wiring or incorrect
trimmer regulation
SOLUTION Ensure that the board STATUS
contacts and the alarm contacts are
connected. Reset the dusk sensor
sensitivity.
11 Technical data
11.1 General
Plastic box, colour RAL7035
11.2 Mechanical
Dimensions (WxHxL): 226x167x280mm (8.9x6.6x11in)
Unit weight: 5.1kg (11lb)
11.3 Electrical
IN 230Vac, 50/60Hz - OUT 24Vac, 8A
Consumption: 200W max (powering two spots on
maximum power)
Built-in dusk sensor for automatic ON/OFF operation
Day/Night (STATUS): clean contact NO
Input cables size: AWG 12-14
Dimensions of signal cables: AWG 20-26
11.4 Environment
Indoor/Outdoor
IP56
Operating temperature: -25°C / +60°C (-13°F / +140°F)

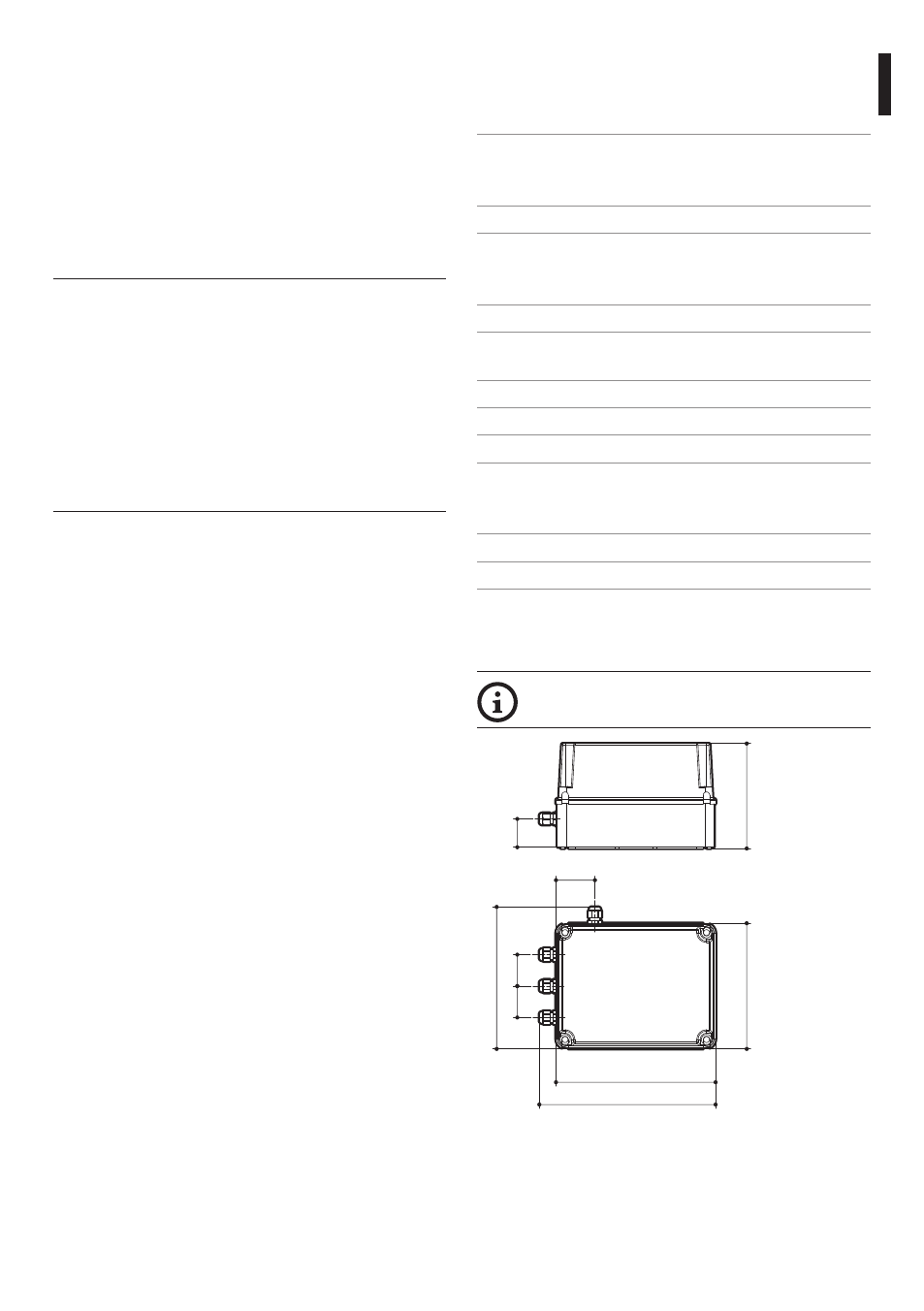

12 Technical drawings
The dimensions of the drawings are in
millimetres.
226
280
254
62
50
45
200
167
50
Fig. 3 UPTIRPS230.
