Fix the lower bracket to the upper one using the 6
screws and washers; add Loctite 238 threadlocks or
equivalent.

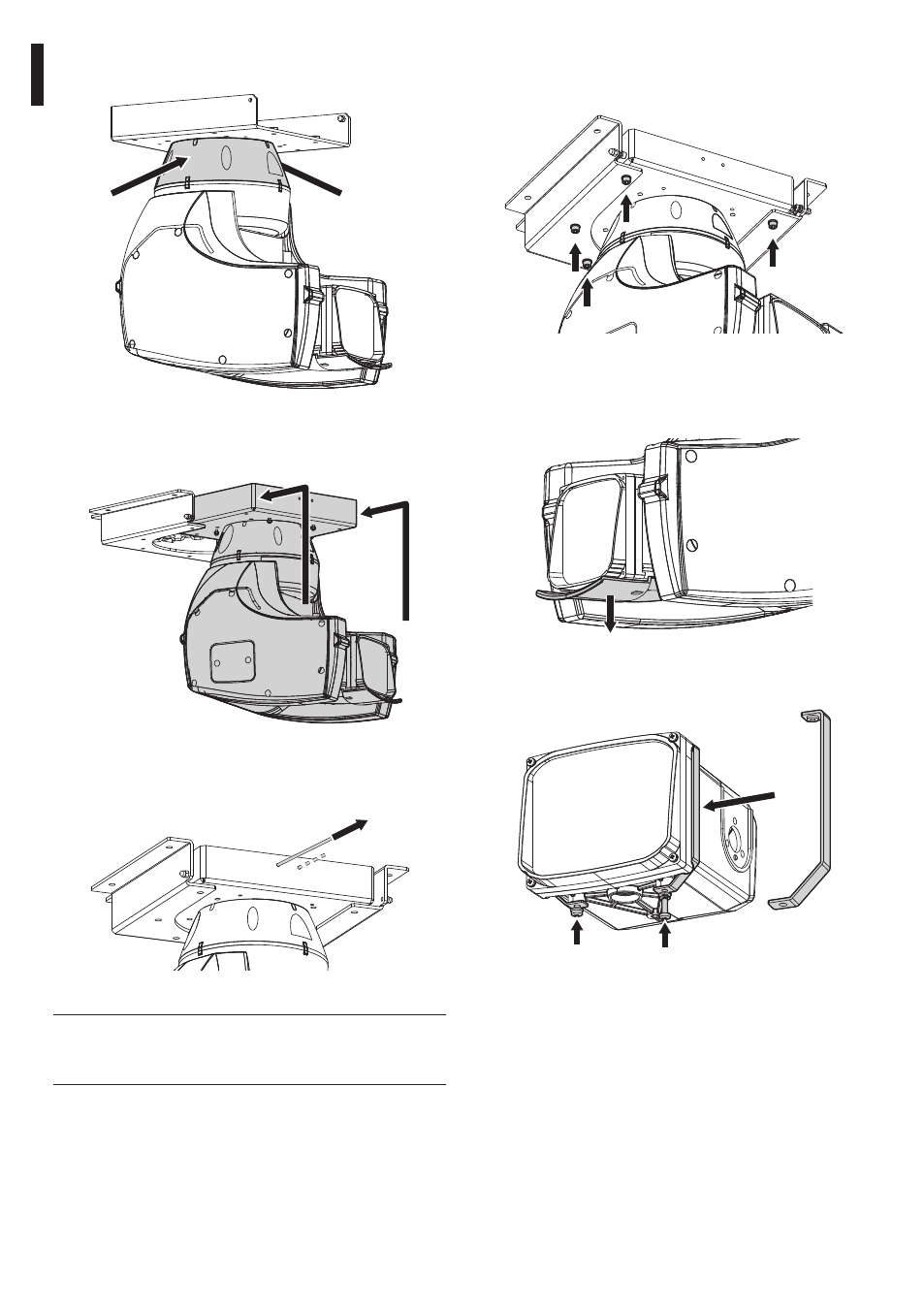

Fig. 23
6.1.2 Fixing the sunshield
Remove the sunshield from the casing.
Fig. 24
Fix the two brackets to the case.
Fig. 25
Grip the pan & tilt with two hands in the area around
the base.
Fig. 20
Insert the lower bracket into the upper one as in the
figure.
Fig. 21
Recover the cables before pushing the lower bracket
completely into the upper bracket.
Fig. 22
h h During this phase, prevent that chain and
cables remaining entangled between the
two brackets.
