Donaldson Company, Inc.
18
Outrigger Pack
Note: Outrigger pack is for use with dust drawer
models only.
1. Center the unit on the outrigger pack aligning
the appropriate bolt patterns.
2. Fasten the four mounting tabs to the outrigger
base using four 5/16-18 x 4-in bolts, washers,
and nuts. Tighten securely.
3. Drill four .312-in diameter holes in the cabinet
base using the mounting tab holes as a guide.
4. Attach the cabinet base to the mounting tabs
using four 5/16-18 x 3/4-in bolts, washers, and
nuts. Tighten securely.

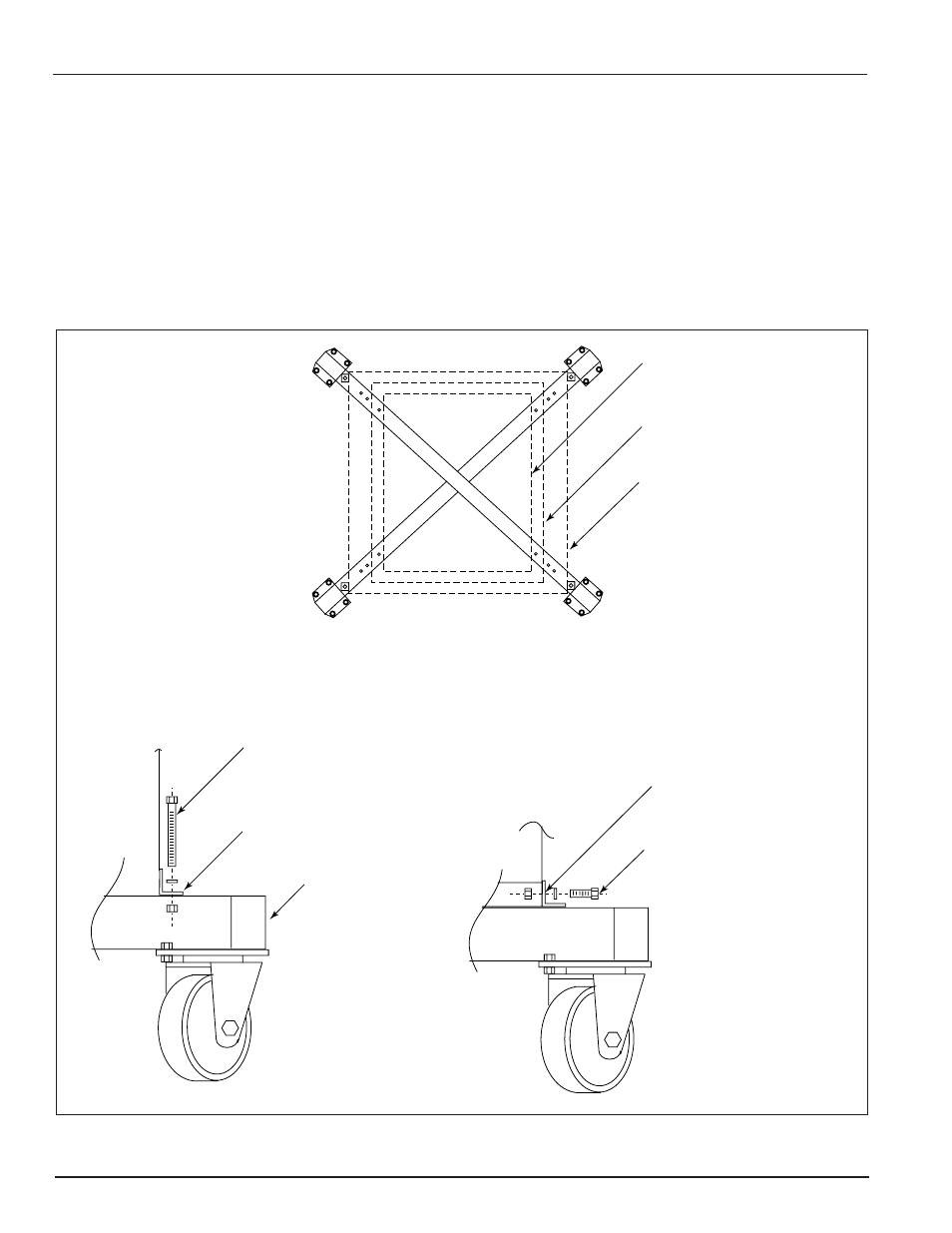

Outrigger Pack Assembly
fasten mounting tabs
to outrigger base using
5/16-18 x 4-in bolts,
flat washers, and hex nuts
mounting tab
outrigger base
fasten cabinet base
to mounting tabs using
5/16-18 x 3/4-in bolts,
flat washers, and hex nuts
Center the unit on the outrigger pack
aligning the appropriate bolt patterns.
match drill .312-in
diameter holes in
cabinet base
Series 50
Series 60 and 70
Series 80
