Cabinet Dust Collector, Series 50 to 80

Outdoor Exhaust Deflector

1. Remove the top door assembly and set aside.
2. Place a piece of non-combustible cloth over the

filters in the clean-air chamber to protect them
from drilling chips.

3. Use a .218-in diameter drill bit to drill eight

holes as shown.

4. Position the indoor exhaust deflector on the

cabinet top, align holes and fasten using eight
#10-24 x 1/2-in bolts, washers, and nuts
supplied. Tighten securely.

5. Apply sealant around outside edge of the

exhaust deflector.

6. Carefully remove the cloth protecting the

filters. Replace the top door assembly and
tighten securely by hand.

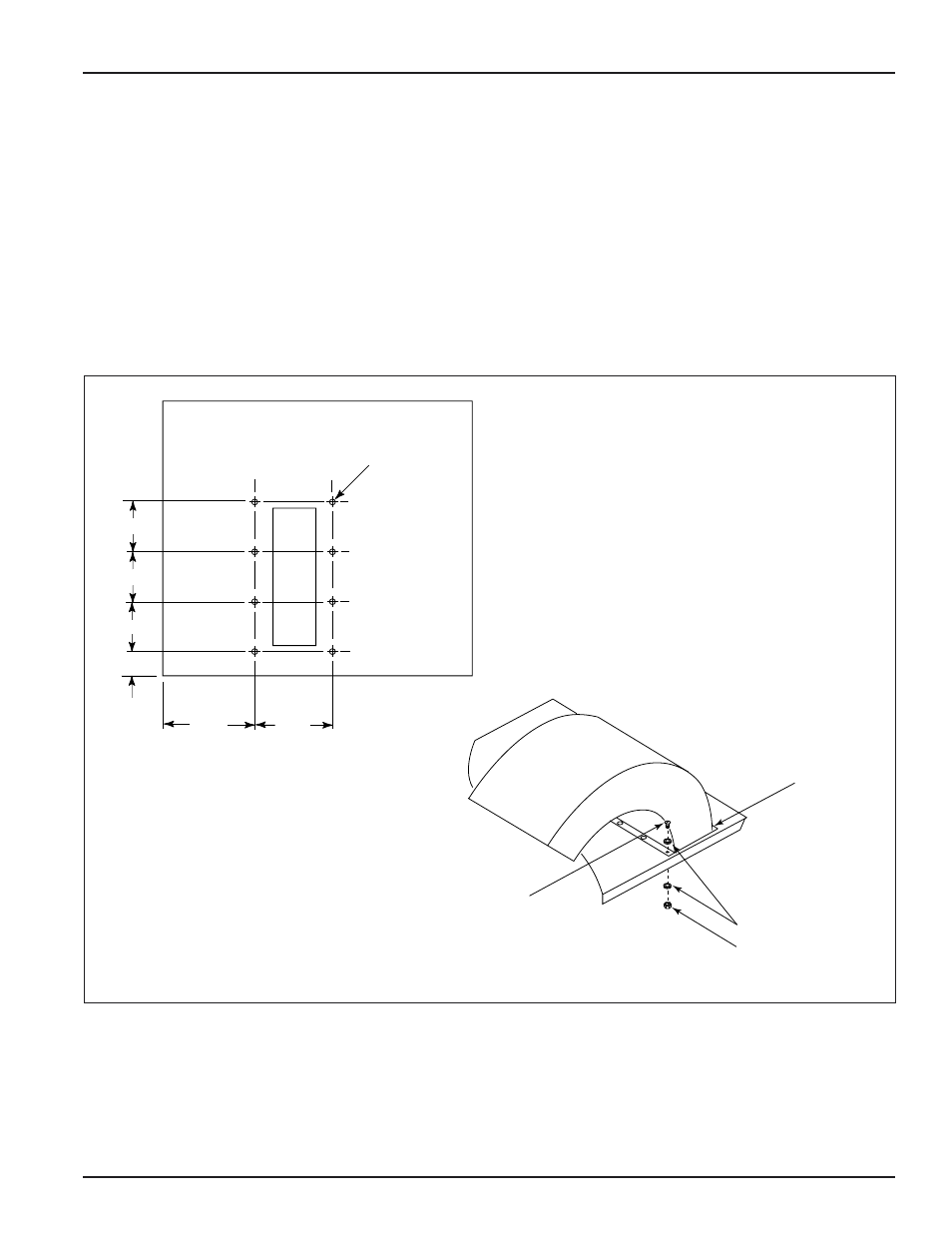

Outdoor Exhaust Deflector

3.25

7.31

.218
8x

2.37

8.94

sealant

10-24 x 1/2-in

slot-head screw

#10 flat washer

10-24 hex nut
