DNX7230DAB/DNX5230DAB/DNX5230BT/DNX4230DAB/DNX4230BT

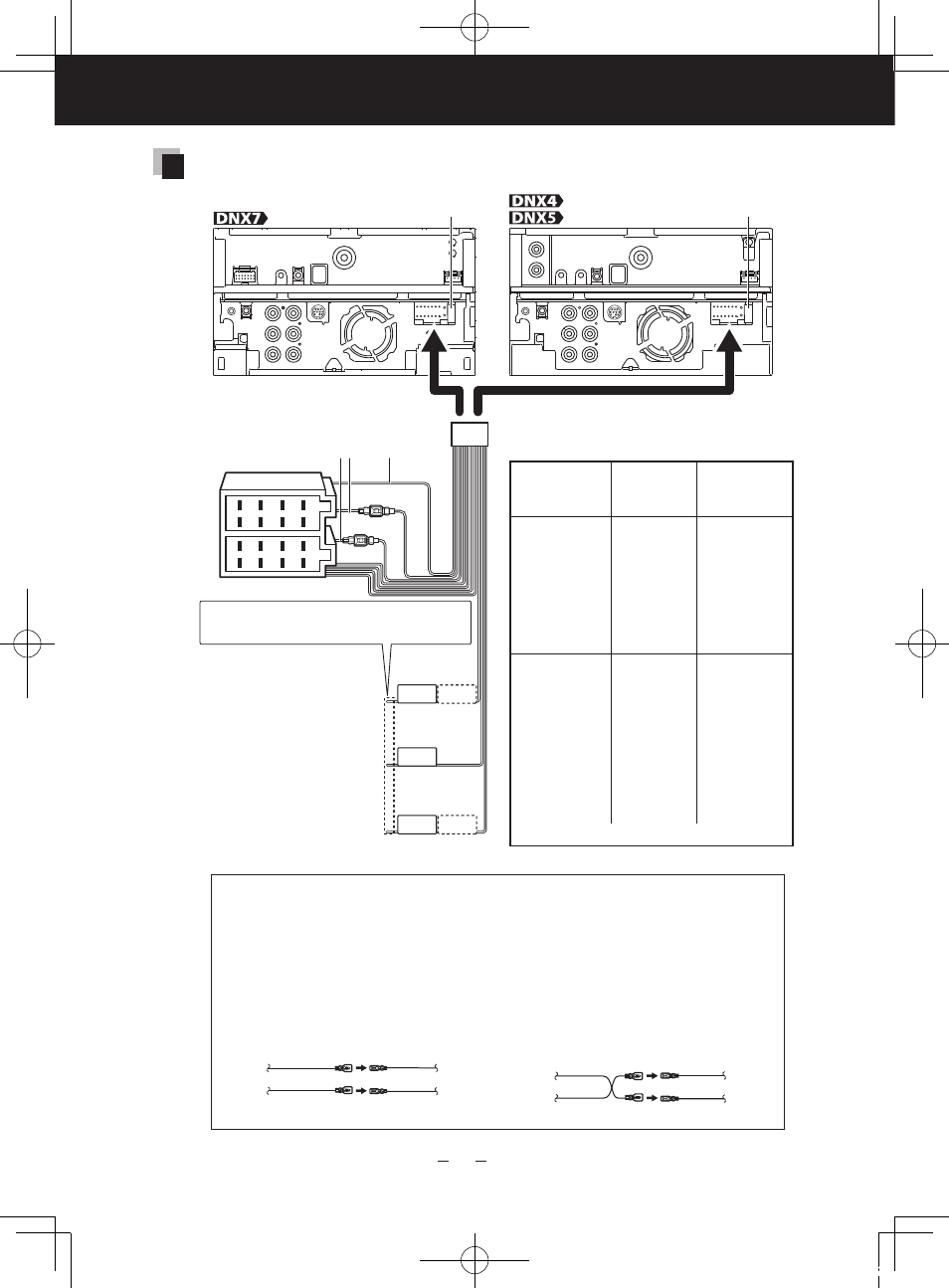

Connecting wires to terminals
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
P.CONT
ANT.
CONT
MUTE
REMOTE CONT REMOTE INPUT
STEERING WHEEL
Fuse (10A) Fuse (10A)
Accessory 1
A B C
C: Red
(Ignition wire)
A: Black
(Ground wire)
B: Yellow
(Battery wire)
2 WARNING for Connecting the ISO Conncetor
The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the
proper connections to prevent damage to the unit. The default connection for the wiring harness is described in
(1) below. If the ISO connector pins are set as described in (2), make the connection as illustrated. Please be sure
to reconnect the cable as shown (2) below to install this unit to the Volkswagen vehicles etc.
(2)
The red (A-7 pin) of the vehicle’s ISO connector is
connected to the constant power supply, and the
yellow (A-4 pin) is linked to the ignition.
(1): Default setting
The red (A-7 pin) of the vehicle’s ISO connector is
linked with the ignition, and the yellow (A-4 pin) is
connected to the constant power supply.
Red (Ignition cable)
Unit Vehicle
Yellow (Battery cable) Yellow (A-4 pin)
Red (A-7 pin)
Red (Ignition cable)
Unit Vehicle
Yellow (Battery cable) Yellow (A-4 pin)
Red (A-7 pin)
Pin Numbers
for ISO
Connectors Cable Color Functions
External Power
Connector
A-4 Yellow Battery
A-5 Blue/White Power Control
A-6 Orange/White Dimmer
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground)
Connection
Speaker
Connector
B-1 Purple Rear Right (+)
B-2 Purple/Black Rear Right (–)
B-3 Gray Front Right (+)
B-4 Gray/Black Front Right (–)
B-5 White Front Left (+)
B-6 White/Black Front Left (–)
B-7 Green Rear Left (+)
B-8 Green/Black Rear Left (–)
*Speaker Impedance: 4-8 Ω
Connect either to the power control
terminal when using the optional
power amplifier, or to the power
terminal for the booster amplifier
of the film-type or short pole type
antenna.
If no connections are made, do not let the
wire come out from the tab.
Connect to the terminal that is
grounded when either the telephone
rings or during conversation.
To use the steering wheel remote
control feature, an exclusive remote
adapter (not supplied) that matches
your car is required.
Blue/White (Power
control/ Antenna
control wire)
Brown (Mute control
wire)
Light Blue/Yellow
(Steering remote
control wire)
