Connection

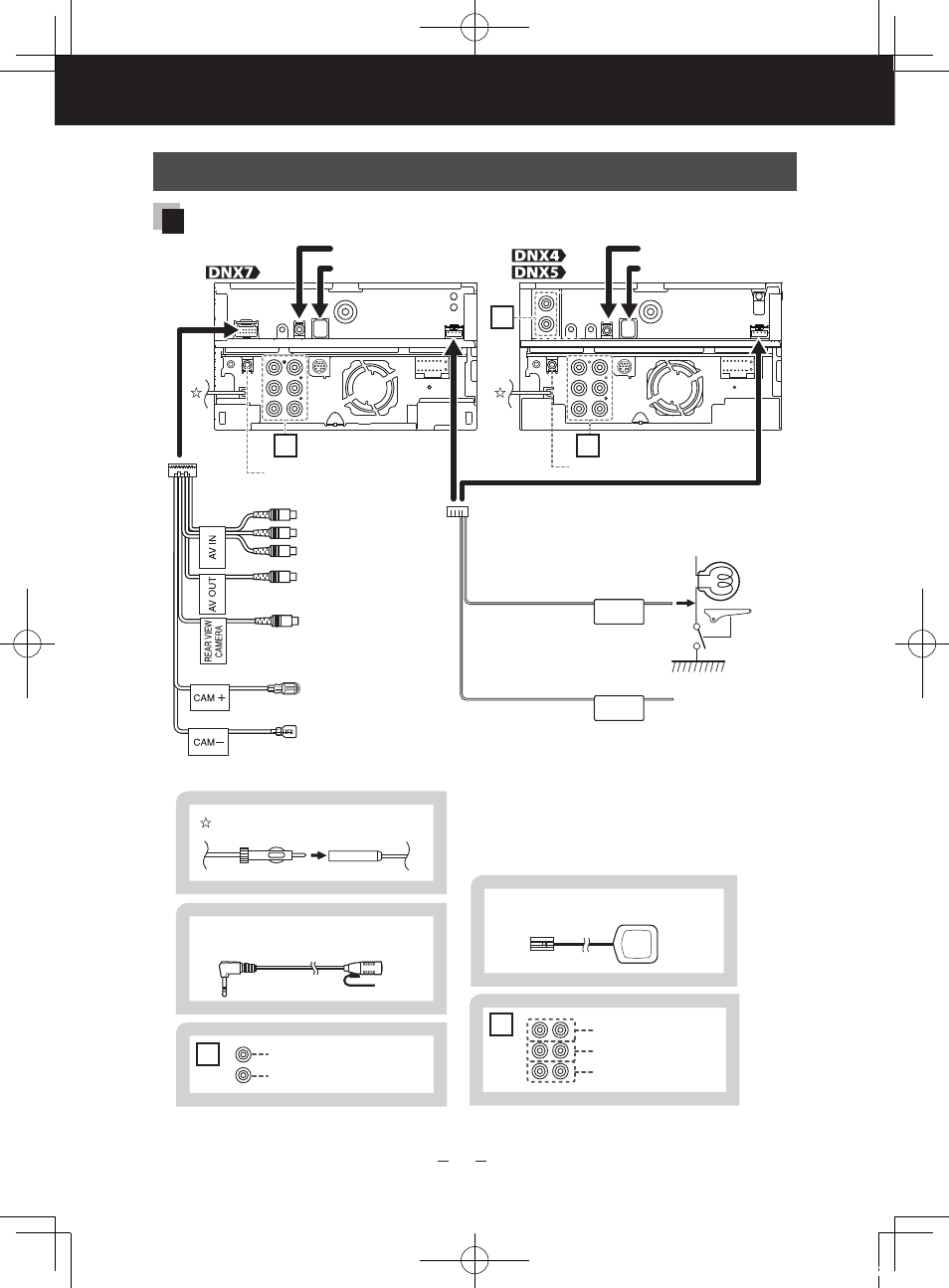

System connection

PRK SW

REVERSE

AV Audio output

AV Audio output

2

2

1

Connect to the vehicle’s

parking brake detection

switch harness.

For best safety, be sure to connect the

parking sensor.

Light Green (Parking sensor wire)

Purple/White (Reverse sensor wire)

Connect to vehicle’s

reverse lamp harness

when using the

optional rear view

camera.

Accessory 2

Accessory 3

Accessory 8
Accessory 6

Accessory 6

Accessory 8

Rear View Camera Input

AV Video Output

1

Rear Audio Preout

Front Audio Preout
Subwoofer Preout

2

FM/AM antenna input

Accessory 8:
Bluetooth Microphone

Accessory 6: GPS Antenna

Green/Red

Green/White

Visual Output

Rear view

camera input

To CMOS-310/CMOS-300

(Optional Accessory)

camera control terminal

Audio/Visual

Input
