English
7
ENGLISH

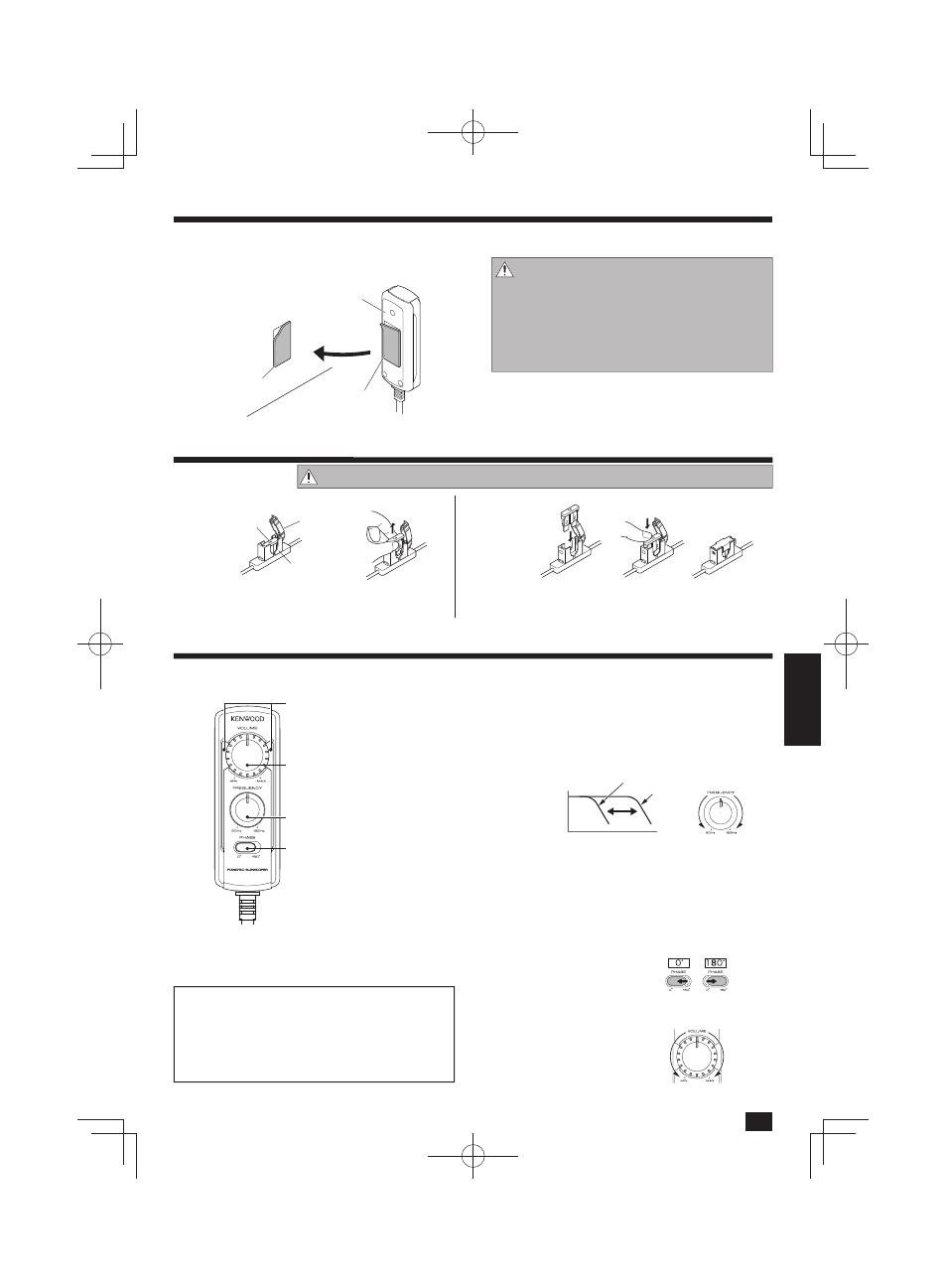

■ Removal ■ Insertion
1 Open the cover.
2 Grasp the fuse and pull up.
1 Insert the fuse gently into the fuse holder and push
in all the way with your finger.
2 Close the cover.
Exchange with the speci-
fied capacity fuse.
Operation p
Fuse exchange g
■ Adjusting the sound
(Remote
control operation)
1 Turn the FREQUENCY control knob to adjust the
cut-off frequency (frequencies higher than this
frequency are cut off).
Turn the FREQUENCY control knob to adjust the balance
between the bass from the rear speakers and the bass from this
unit as desired.
2 Adjust the low frequency phase.
The low frequency tone may be variable depending on the po-
sition of the unit, its orientation or the turn-over frequency. This
can be adjusted by changing the position of the PHASE switch.
Set this switch to either position according to your liking.
[0°] indicates the normal phase and [180°] means the reverse
phase.
3 Turn the VOLUME control knob to adjust the low
frequencies to the desired level.
■ Name of each part (Remote control )
The sound is output even when the remote control unit
is not connected, but the operations described in this
section are not available.
In this case, the volume, cut-off frequency and phase
are set to the predetermined default conditions, with
which the cut-off frequency is 125 Hz and the phase is
0º (positive).
■ Installing the remote control unit
Install the remote control unit on the vehicle by the
provided hook-and-loop fastener.
Frequency
Low High
50 Hz
125 Hz
Low High
To decrease
volume To increase
volume
0 1 A
Sound pressure
level
1 Remote control
(Rear panel)
9 Hook-and-loop
fastener
(Softer surface)
Vehicle
9 Hook-and-loop
fastener
(Harder surface)
PHASE switch
(Phase select switch)
FREQUENCY control knob
(Cut-off frequency control knob)
VOLUME control knob
(Input sensitivity control knob)
Illumination
When the power turns ON, the
illumination lights.
Fuse
Cover
Fuse holder
Replacement
fuse 10 A
Caution:
Install the remote control unit in a position that does not
come in the way of driving operations.
Avoid installing it in a place subject to direct sunlight or
direct hot wind from the heater. Otherwise, the product
may be degraded and a fire hazard may result.
Remove dirt from the installation position before attach-
ing the hook-and-loop fastener.
Caution: Be sure to replace with same capacity (amperage) as displayed on the fuse. This product is 10A.
