ENGLISH
4
English
Speaker input connection p p
Connect the subwoofer to the front speaker or rear speaker output cords of the center unit.
Notes:
• Read the instruction manuals for the connected components such as the center unit as well as this instruction manual.
• When the center unit incorporates a DSP, do not connect to the rear output, as the low-frequency reproduction effect may
be attenuated due to the DSP effect.

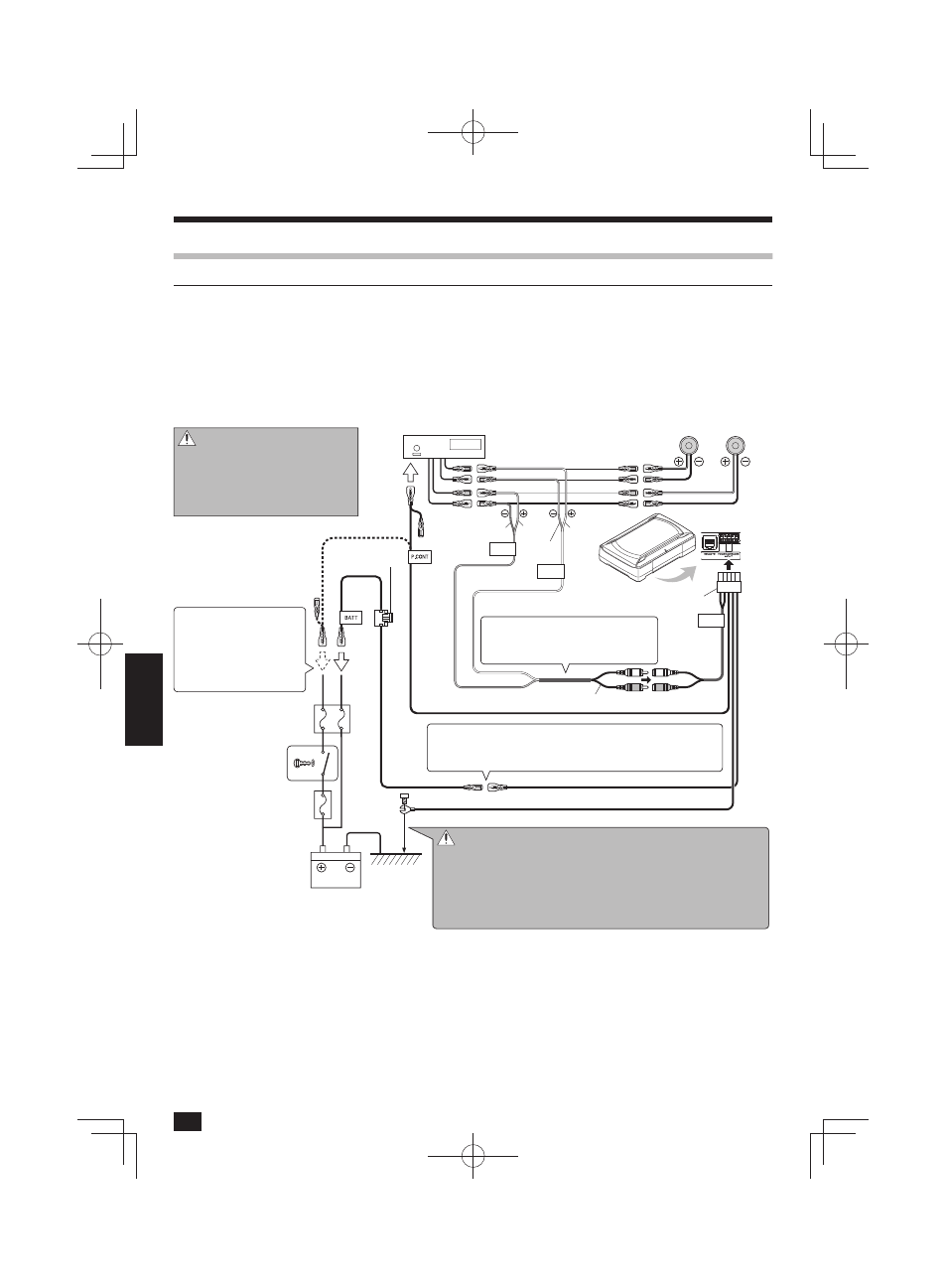

■ Examples
The following shows a typical connection for effective car stereo enjoyment. Connect your system by referring to the example.
Connection
LINE IN
SP.L
INPUT
SP.R
INPUT
※
Center unit
Front or rear speaker
Left Right
2 10-pin connector cord
White
White/
Black
Gray Gray/Black
Blue/White
Yellow Yellow
Black
Battery
Car fuse box
(Main fuse)
Car fuse box
Ignition key
switch
Fuse 10A
GND
3 Speaker cord
KSC-SW11
Caution:
Do not distribute the cords in the
paths where they may be caught by
a vehicle part or damaged. Other-
wise, an electric shock or a fire due to
short-circuiting may result.
If there is no power con-
trol terminal in the center
unit, connect the blue/
white wire to the acces-
sor y line (ignition key
switch ACC position line).
If buzzing noise is heard from the speakers when the engine
is running, attach a line noise filter (commercially available)
to the power lead.
Do not bend the vinyl-coated sec-
tion of the speaker cord. Otherwise,
malfunction may result.
Caution:
※ Connect the black lead wire ground terminal directly with a screw
to an unpainted metal part of the vehicle. Turning the power ON
without connecting this terminal is linked to damage of the stereo
system. Be sure to connect it.
Also, painted metal panels etc., are not grounded and will not
function correctly. Be careful.
