English
3
ENGLISH

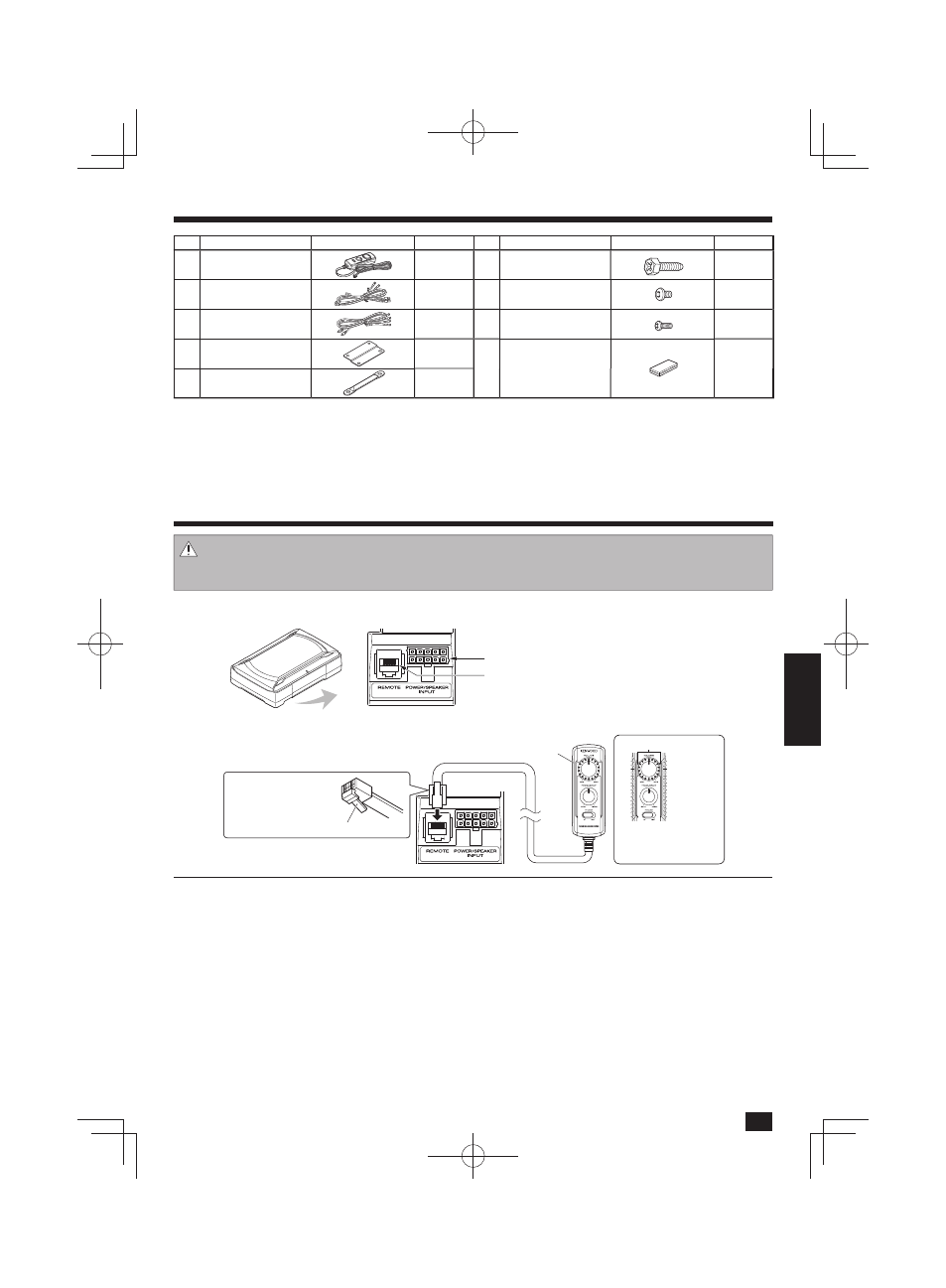

Parts included
Caution:
Before wiring, be sure to remove the wire from the negative terminal of the battery. After completing all wiring, check the
correct wirings again. After checking, connect the wire from the negative terminal of the battery.
■ Terminals of Subwoofer
■ Connecting the remote control unit
Notes:
• Be sure to connect the supplied remote control unit.
• If the cord is not connected properly, the illumination on the remote control unit do not light up.
• Do not insert the remote control connector upside down or forcibly. Otherwise, malfunction may result.
Connection
No.
Part Name
Outside Shape
Quantity
No.
Part Name
Outside Shape
Quantity
1
Remote control
(5 m / 16 ft)
1
6
Tapping screw
(ш 5 Ч 16 mm)
4
2
10-pin connector cord
(5 m / 16 ft)
1
7
Machine screw
(M4 × 5 mm)
4
3
Speaker cord
(4.3 m/ 14 ft)
1
8
Machine screw
(M3 × 8 mm)
2
4 Fixture A
2
9
Hook-and-loop fastener
(Double-side adhesive/
for Remote control)
1
5 Fixture B
1
POWER/SPEAKER INPUT terminal
REMOTE terminal
1 Remote control
When the power turns
ON, the illumination
lights.
Lights in blue.
Connect with the lock
part of remote control
jack facing down.
Lock part
