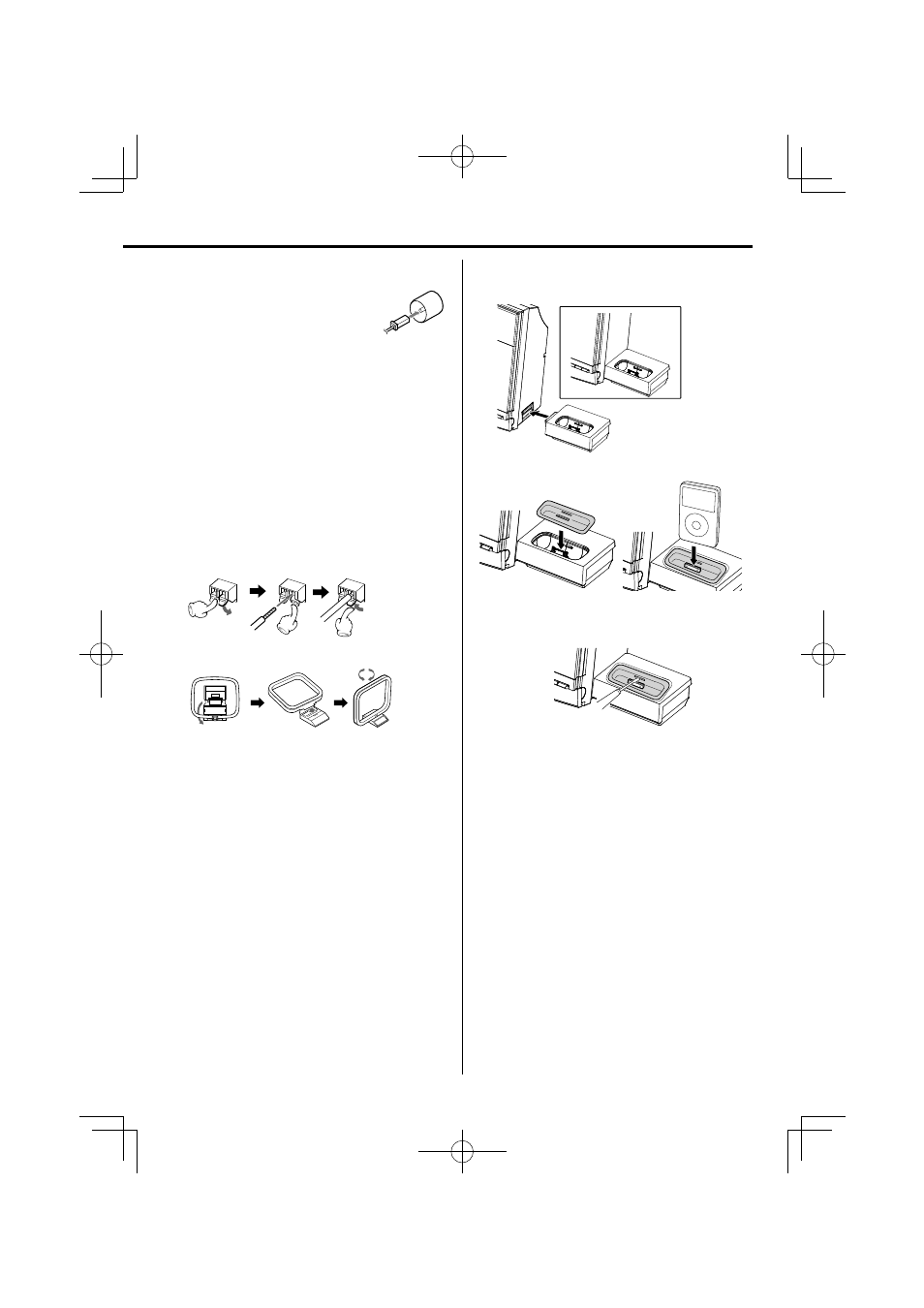

Connecting the FM antenna

1 Connect the lead to the [FM 75Ω] terminal.

2 Find the location that gives the best

reception.

3 Secure the antenna as high up as possible.

• The antenna supplied with the system is a basic antenna

for indoor use. For stable signal reception, the use of an
outdoor antenna (commercially available) is recommended.
Disconnect the indoor antenna first before connecting an
outdoor antenna.

CAUTION on installing an outdoor
antenna

• Since antenna installation necessitates skill and experience,

always consult your dealer before installation. The antenna
should be placed at a distance from the power distribution
wires. Otherwise, an electric shock accident may occur if the
antenna falls down.

Connecting the AM antenna

1 Connect the AM antenna cord to the [AM] and [

HGND]

terminals.

2 Setup the antenna in the position and the direction to be

able to receive AM broadcast.

• The antenna supplied with the system is for indoor use. Place

it as far away as possible from the system, your TV set, the
speaker cords, AC adapter and the power cord, and point it in
the direction that provides the best reception.

Connecting the iPod applied part

1 Connect the iPod applied part to iPod applied part

connector

2 Insert the Dock adapter into

unit.

3 Connect your iPod/iPhone.

To remove Dock adapter

• Insert a thin object such as the tip of a flat-blade screwdriver

into the slit on the dock adapter and lift it to remove.

• Connect an iPod dock adapter, which is provided with your

iPod/iPhone or commercially available in iPod dealers, to
the iPod dock of this unit. Note that the iPod adapter is not
provided with this unit.

• See page 9 for the supported iPod/iPhone models.

Connecting the HDMI terminal

1 When you use HDMI connection, you can change the

resolution (576p, 720p, 1080i, 1080p) for the HDMI output.
(See page 20)
The HDMI will be outputted at 576p resolution, even if you set
the resolution to 576i on the HDMI connection.

• When the no sound or noisy sound are outputted with HDMI

connection, set the HDMI AUDIO in DVD SETUP menu to
PCM. (See page 21)

• If there is noise or lines on the screen, please check the HDMI

cable.

• Not all HDCP-compatible DVI devices will work with this unit.
• If your HDMI TV does not support HDCP, the blue screen

appears on the screen.

• If the abnormal picture appears on the TV screen, turn off the

unit and then turn the unit on again.
