14
RV-7000/RV-6000/RA-5000
Co
n
n
e
c
ti
o
n
s

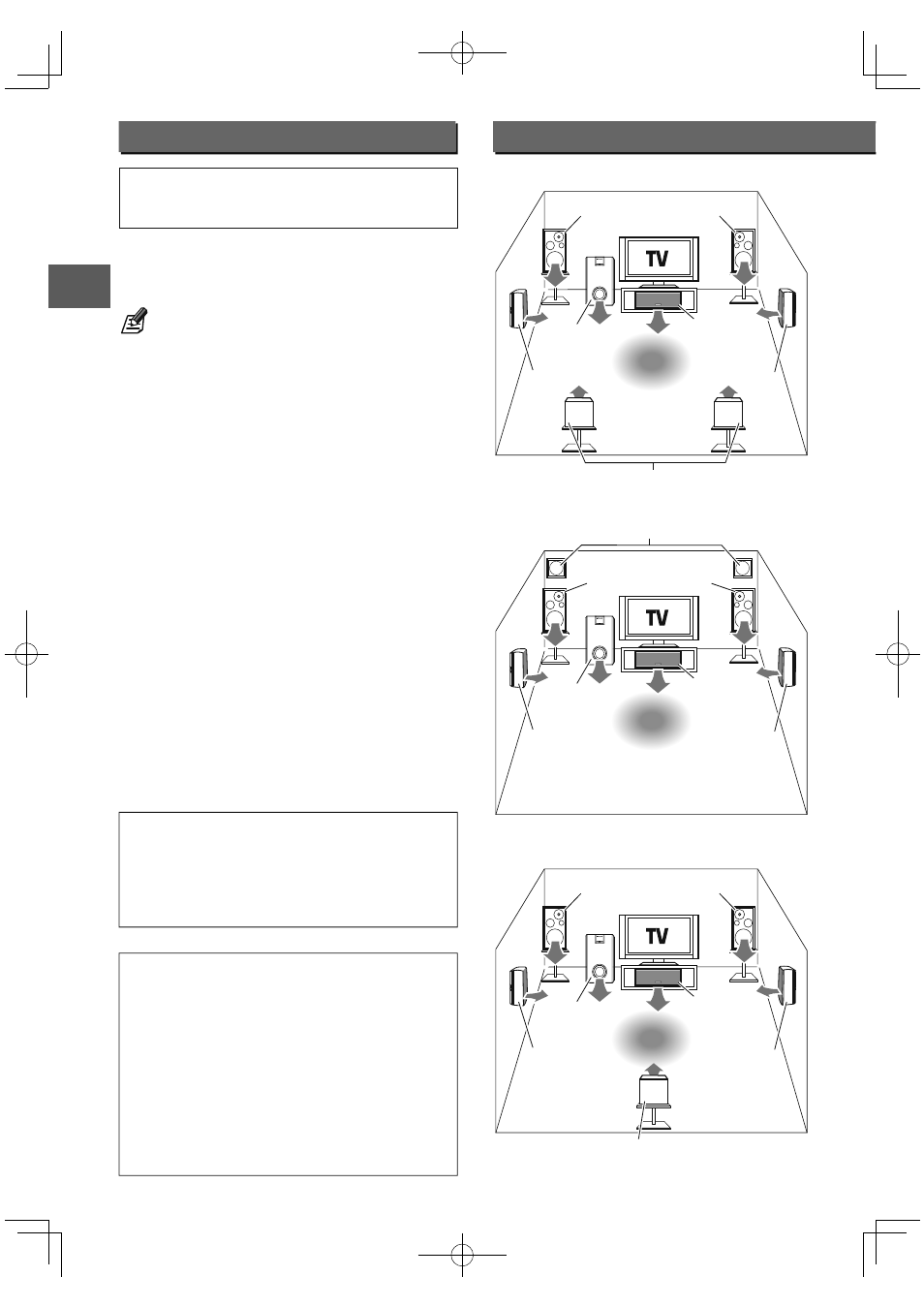

Speaker placement
RV-7000 (Surround Back speaker)
Center speaker
Front speaker
Subwoofer
Listening
position
Surround speaker
Front speaker
Surround speaker
Surround Back speaker
RV-7000 (Front Height speaker)
Center speaker
Front speaker
Subwoofer
Listening
position
Surround speaker
Front speaker
Surround speaker
Front Height speaker
RV-6000
Center speaker
Front speaker
Subwoofer
Listening
position
Surround speaker
Front speaker
Surround speaker
Surround Back speaker
Notes on connections
When connecting the related system components, be sure to
refer to the instruction manuals supplied with the components
you are connecting.
• Be sure to remove the power cord from the AC outlet
before plugging or unplugging any connection cords.
Plugging/unplugging connection cords without
disconnecting the power cord can cause malfunctions
and may damage the unit.
• Be sure to insert all connection cords securely. If their
connections are imperfect, the sound and video may not
be produced or there will be noise interference.
• If this unit is installed in the proximity of a source of
magnetism such as a magnet, color irregularities due to
interference with the speakers may be observed on the
TV monitor screen. Be careful in the installation.
Microcomputer malfunction
If operation is not possible or an erroneous display appears,
even though all connections have been made properly, reset the
microcomputer by referring to .
T
¤CAUTION
The power of this equipment will not be completely cut off
from the wall outlet when the power switch is turned off.
Install the equipment so that the wall outlet is easily
accessible and, in case of emergency, immediately unplug the
power cord from the wall outlet.
¤CAUTION
Be sure to adhere to the following, or proper ventilation
will be blocked causing damage or fire hazard.
• Do not install the unit on the rear, side or top panel.
• Do not cover the unit with a cloth or install the unit on a
carpet or mattress.
• Do not install the unit in a poorly ventilated place.
• Leave some space around the unit (from the largest outside
dimension including projection) equal to or greater than,
shown below.
Top panel : 50 cm
Side panel : 10 cm
Back panel : 10 cm
¤CAUTION
Do not connect the power cord to a wall outlet until all
connections are completed.
