23
Chapter 4
Network
This page shows information about the active network adapter. You can
select the network adapter from the combo box as shown in Figure
4.5.
Release the current IP and retrieve the new IP through the provided but-
ton, “Renew”.
Use the “Ping” button to ping a specified IP address if you wish to test the
connection.

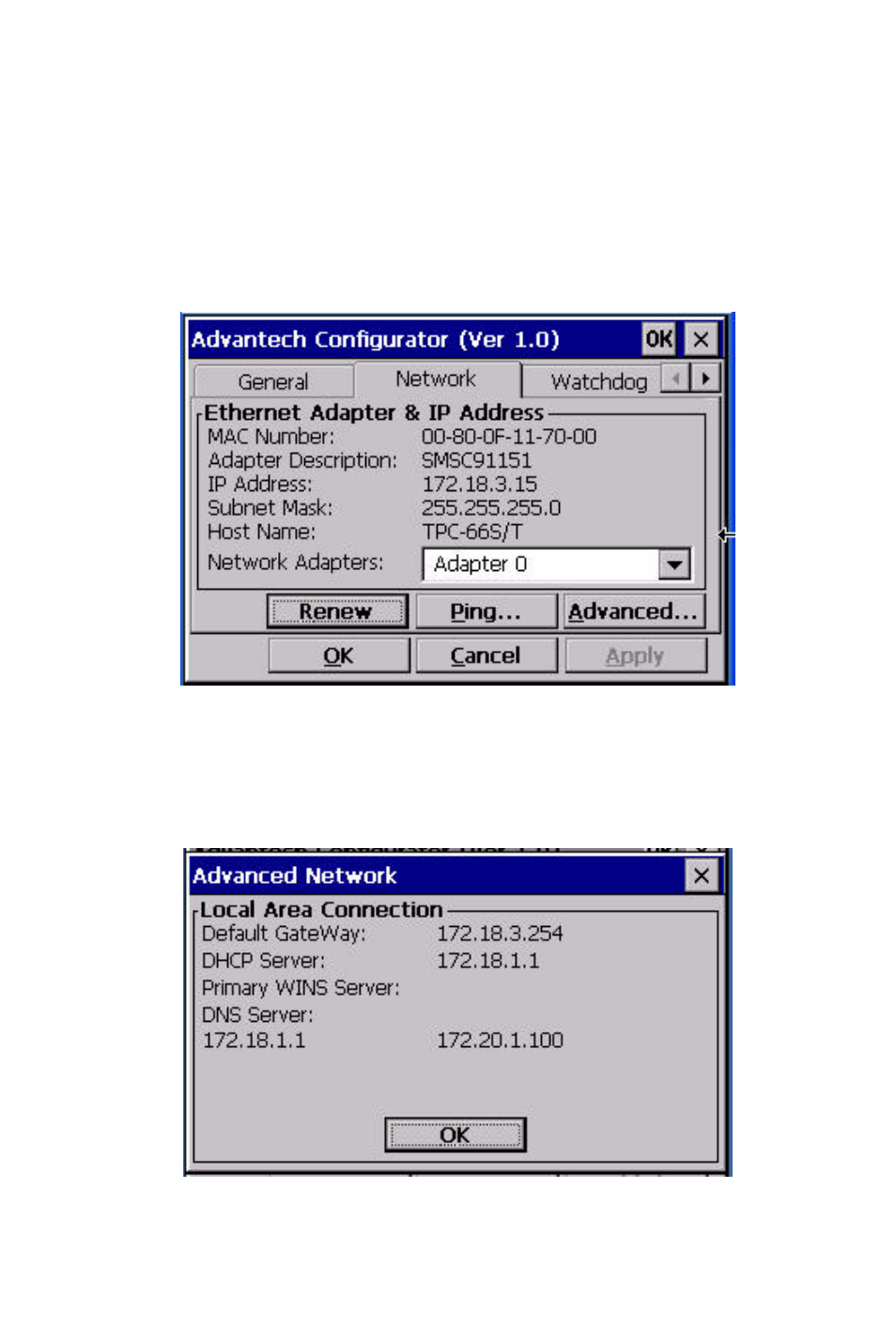

Figure 4.5: Network
You can get more detailed IP information through “Advanced Network”.
The information contains the default gateway, DHCP server, WINS and
DNS server address as shown in Figure
4.6 below.
Figure 4.6: Advanced Network
