Chapter 1
1.5 Power
• Input Voltage: 18 ~ 32 VDC
(The fuse will become an open circuit if input level exceeds 33 VDC)
• Maximum Current: 3.15 A (Typical 24 VDC at 0.8A)
1.6 I/O Ports Arrangement
TPC-66 panel computers provide 3 serial ports, 1 Ethernet LAN port and
2 USB ports. The arrangement of the I/O ports is shown in Figure 1.1.

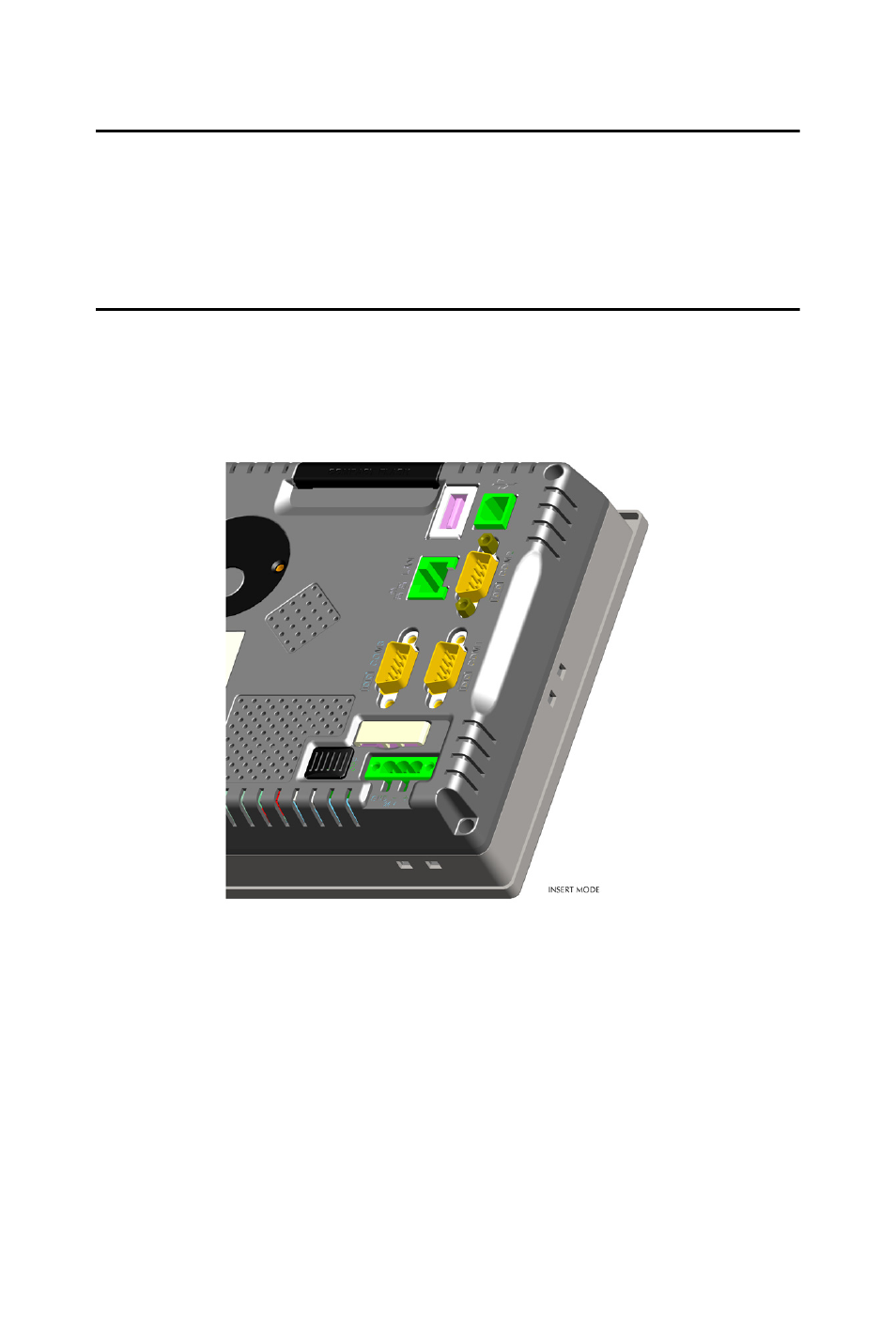

Figure 1.1: I/O Ports Arrangement
