Chapter 10. Toolbox
Asanté FriendlyNET FR1104-G
User’s Manual
79
10.6
T
OOLBOX
M
ISCELLANEOUS

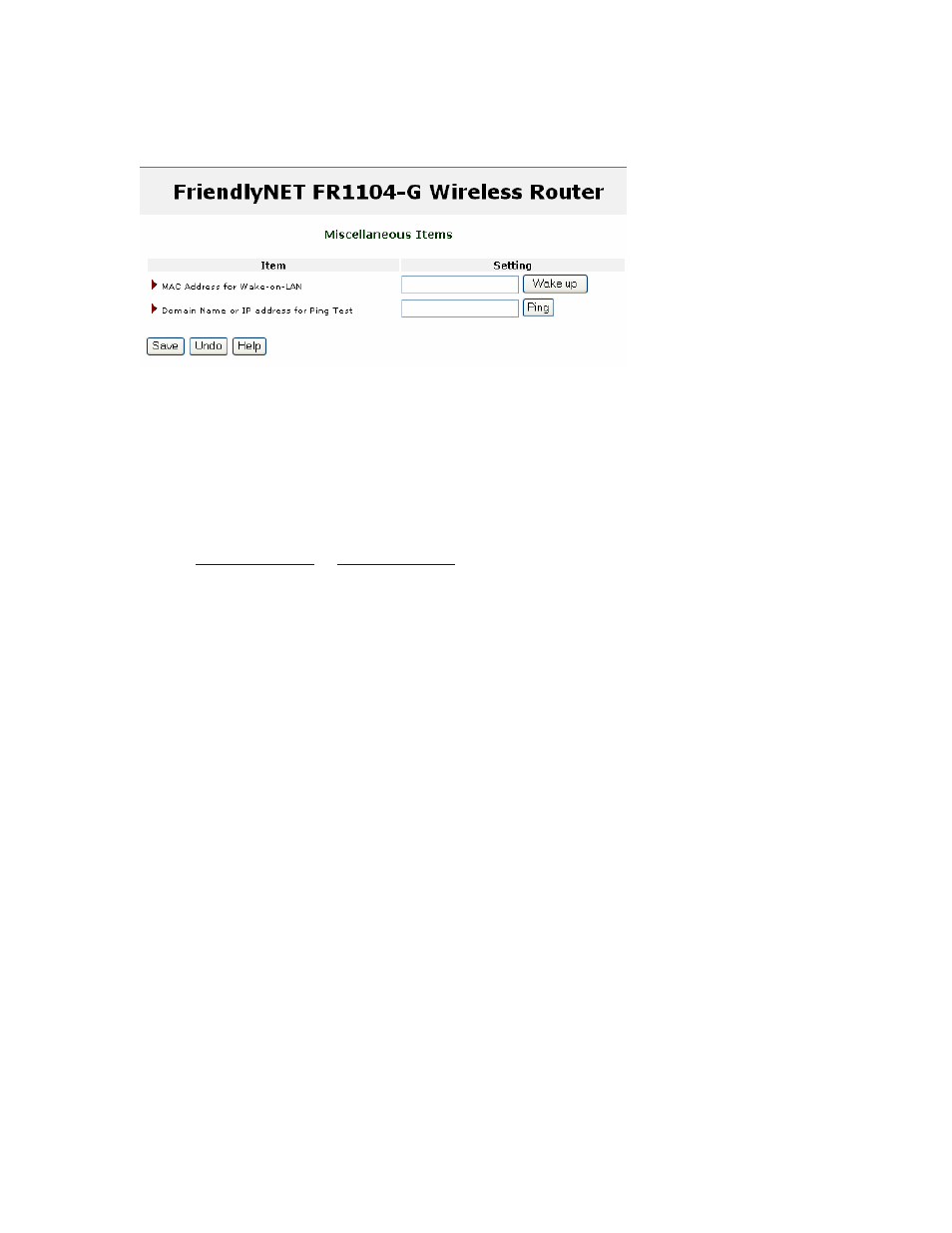

• MAC Address for Wake-on-LAN (WoL). This technology is used to power up a client from
another location on the local network. To use this feature, your target clients must be
WoL-enabled. Enter the MAC address for the client and click Wake up.
Tip: See Status > Clients List to wake up clients by name.
• Domain Name or IP address for Ping Test. This handy tool allows you to verify physical
and logical connections between the router and any local client (LAN or WLAN) or on the
Internet (WAN). Enter the IP address (e.g., 192.168.123.100) or domain name (e.g.,
www.asante.com
or
www.google.com
).
To save these addresses for the future, click Save.
To restore the last saved settings, click Undo.
To read on-screen information on this page, click Help.
