Kenwood DNX691HD - Manual (Page 22)

22 ñ
English

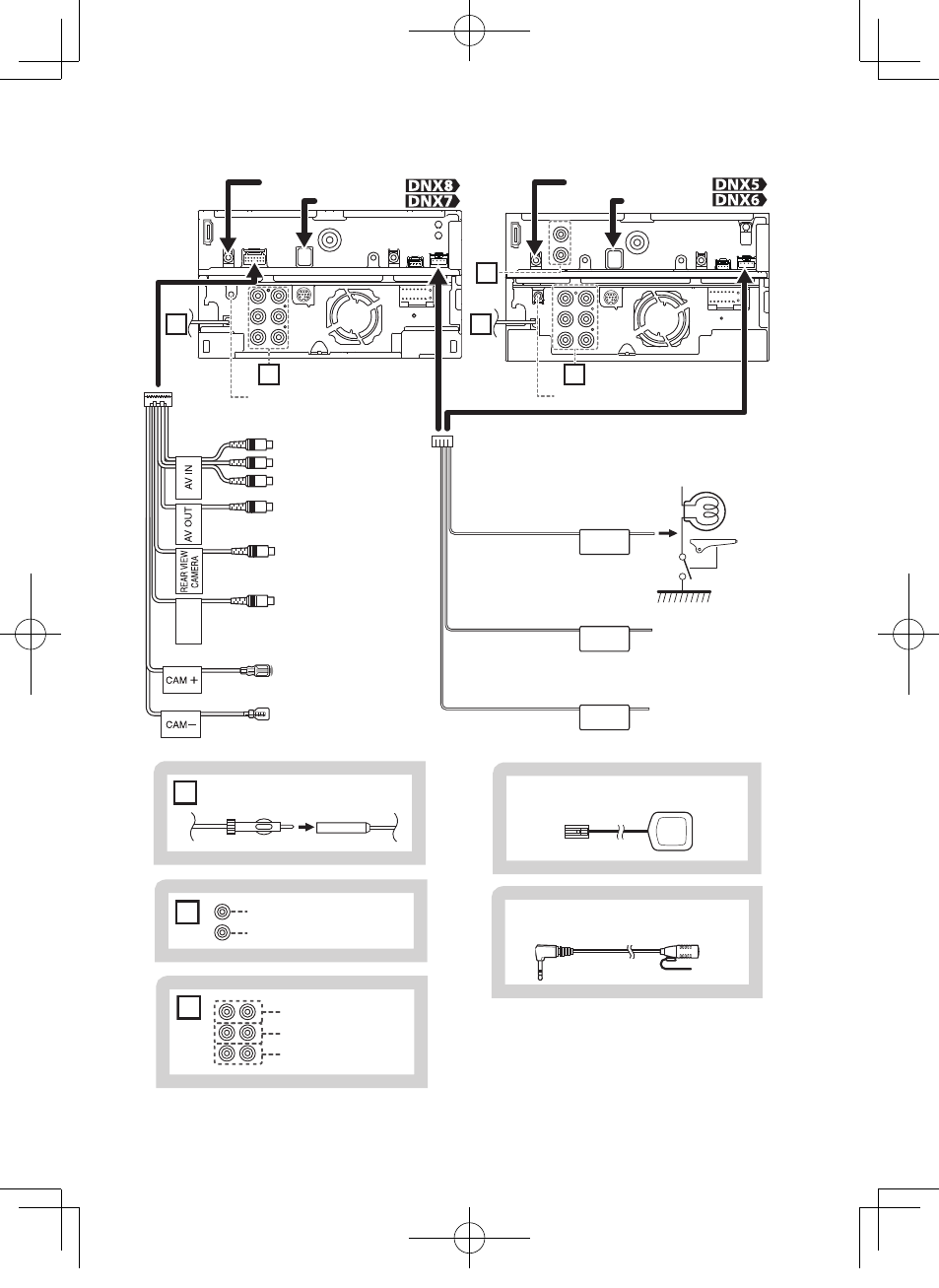

Ñ System connection
PRK SW
REVERSE
RELAY
FRONT VIEW
CAMERA
2
1 1
3 3
AV Audio output AV Audio output
Rear View Camera Input
AV Video Output
3
Rear Audio Preout
Front Audio Preout
Subwoofer Preout
2
Connect to the vehicle’s
parking brake detection
switch harness.
For best safety, be sure to connect
the parking sensor.
Light Green (Parking sensor wire)
Purple/White (Reverse sensor wire)
Accessory 2
Accessory 3
Accessory =
Accessory 0 Accessory 0
Accessory =
Blue/Red
(DNX891HD, DNX7710BT only)
Green/Red
Green/White
FM/AM antenna input
Accessory =:
Bluetooth Microphone
Accessory 0: GPS Antenna
Visual Output
Rear view
camera input
Front view camera input
(DNX891HD, DNX7710BT
only)
To CMOS-3xx series
(Optional Accessory)
camera control terminal
(DNX891HD, DNX7710BT,
DNX771HD only)
Audio/Visual
Input
1
Connect to vehicle’s reverse
lamp harness when using the
optional rear view camera.
To Relay Box.
If no connections are made,
do not let the cable come out
from the tab.
