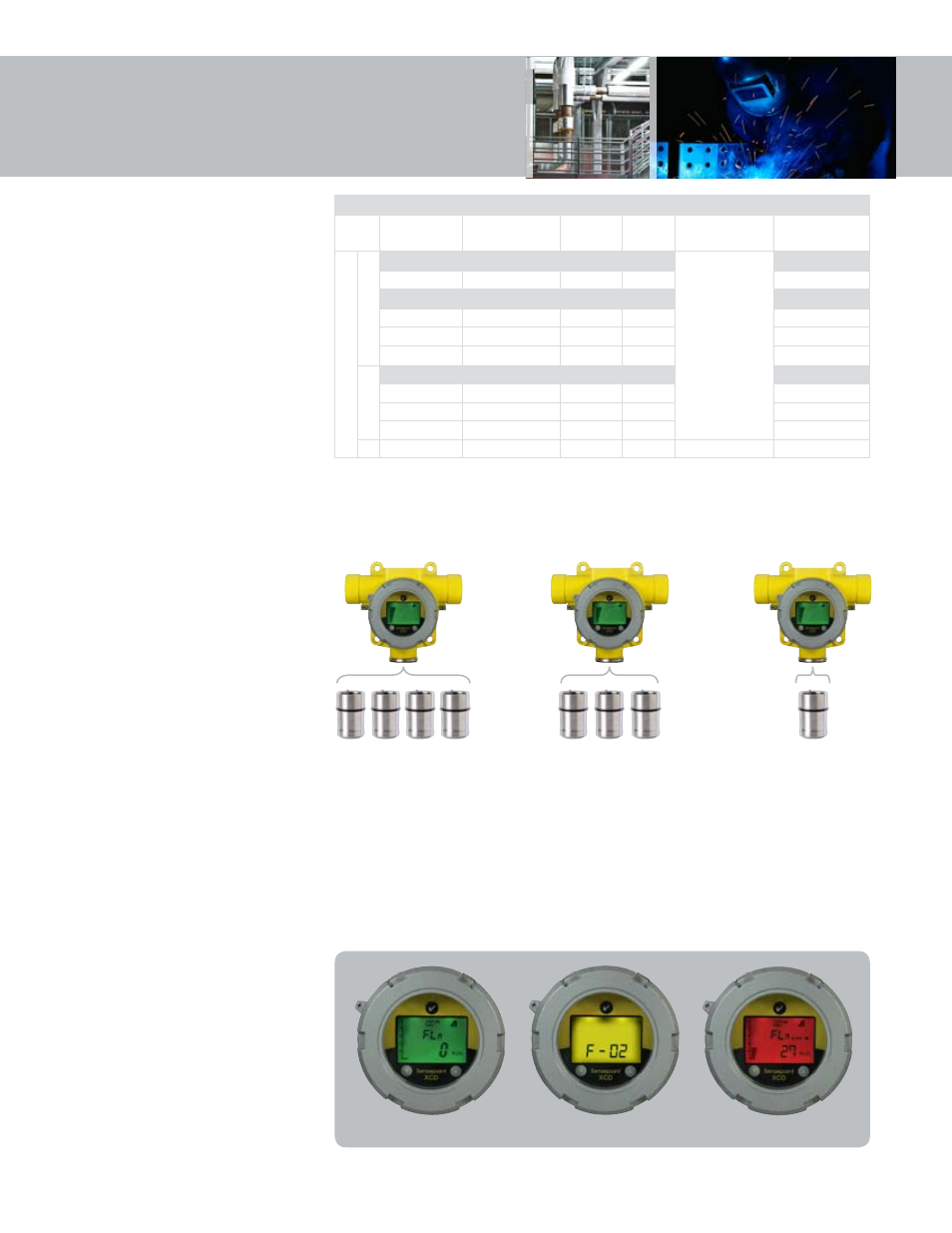

There are three different types of the XCD
transmitter for use with three different families
of sensors.
The mV type transmitter is for use with the
mV family of XCD sensors including catalytic
sensors to detect flammable gases in the
range 0-100%LEL and infrared (IR) sensors
for detection of Hydrocarbon gases in the
range 0-100%LEL and 0-100%Vol*, as well as
Carbon Dioxide (CO
2
) in the range 0-2%Vol.
The EC type transmitter is for use with
the EC family of XCD sensors including
Carbon Monoxide (CO), Hydrogen Sulfide,
(H
2
S) and Hydrogen (H
2
).
The Oxygen transmitter is for use with the
Oxygen (O
2
) XCD sensors.
A transmitter can auto-recognise any sensor
from within its sensor family. The sensor
simply plugs into the bottom of the transmitter
and the transmitter automatically configures
itself accordingly.
Ready, Steady, Go!
Sensepoint XCD uses three instantly
recognisable ‘traffic light’ colours to indicate
its status. The large tri-colour backlit LCD
is steady green to indicate normal operation,
flashes yellow to indicate a fault/warning
and flashes red to indicate an alarm. This
allows anyone in the area to clearly see at a
glance the status of any detector. This can be
particularly useful to identify detector status if
the detector is located in a difficult to access
area or if a number of detectors are located in
the same area.
Sensepoint XCD Sensor Families, Gases and Ranges
Gas
User Selectable
Full Scale Range
Default
Range
Steps
Selectable Cal
Gas Range
Default Cal Point
Sensor F
amily
mV
Catalytic Bead Sensors
30 to 70% of selected
full scale range
Flammable 1 to 8* 20.0 to 100.0%LEL 100%LEL 10%LEL 50%LEL
Infrared Sensors
Methane 20.0 to 100.0%LEL 100%LEL 10%LEL 50%LEL
Methane 20 to 100%Vol.* 100%Vol. 10%Vol. 50%Vol.
Carbon Dioxide 0.1 to 2%Vol. 2%Vol. 0.1%Vol. 1%Vol.
EC
Electrochemical Sensors
Hydrogen Sulfide 10.0 to 100.0ppm 50.0ppm 0.1ppm 10ppm
Carbon Monoxide 100 to 1,000ppm 300ppm 100ppm 100ppm
Hydrogen 1,000ppm only 1,000ppm n/a 500ppm
O 2
Oxygen 25.0%Vol. only 25.0%Vol. n/a 20.9%Vol. (Fixed) 20.9%Vol.
mV Transmitter
IR Methane %LEL IR Methane %V
ol*
IR Carbon Dioxide %V
ol
Catalytic Flammable 1* to 8* %LEL
(default CH
4
0-100%LEL)
EC Transmitter
EC H
2
S
EC CO EC H
2
O
2
Transmitter
EC O
2
Normal Fault/Warning Alarm
Sensepoint XCD Overview
