Please Note:
While every effort has been made to ensure
accuracy in this publication, no responsibility
can be accepted for errors or omissions.
Data may change, as well as legislation, and you
are strongly advised to obtain copies of the most
recently issued regulations, standards, and guidelines.
This publication is not intended to form the
basis of a contract.
© 2007 Honeywell Analytics

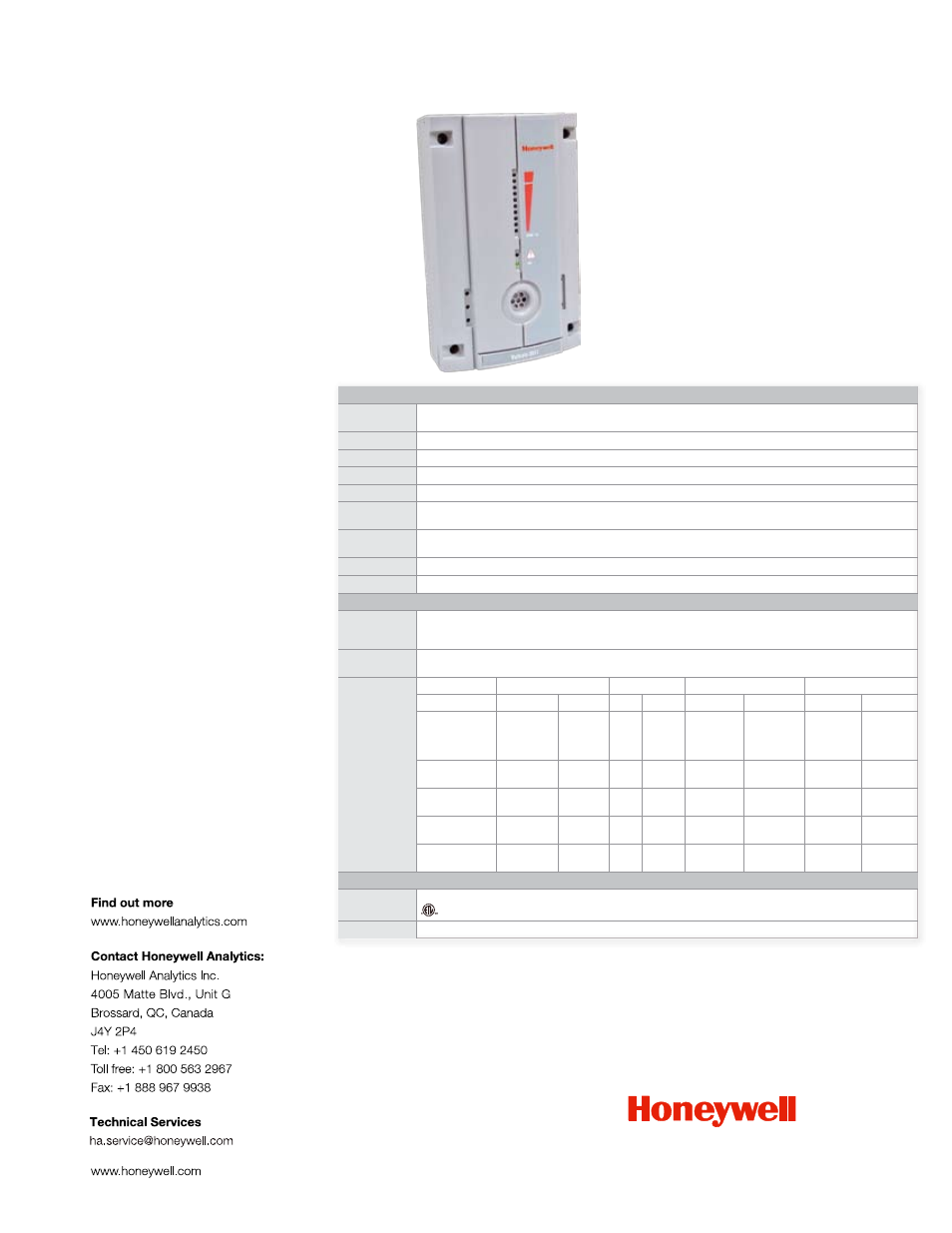

The 201T gas
detection transmitter
is designed to meet
or exceed safety
requirements in a
variety of commercial
and industrial
applications. User Friendly
10-step LED display •
Proven sensing technology •
Easy installation and operation •
Reliable
Field-proven protection •
Robust RS-485 Modbus communication •
Versatile
Stand-alone or network configuration •
Full compatibility with the Vulcain 301C •
controller
Original Architecture
Innovative and compact case design •
Beneficial Options
Optional 4-20 mA and one relay output •
Optional audible alarm and LCD display •
General Specification
Uses Work horse transmitter of a gas detection network to be used with the 301C controller providing a cost-effective solution to gas related hazards and energy
management
Power Requirement 7-27 VAC, 24-38 VDC, 250 mA
Size 8.4 x 5.3 x 2.25 in. (21.3 x 13.4 x 5.7 cm)
Weight 0.88 lb (0.4kg)
Display 10-step LED or LCD
Visual Indicators Failure Indication: Yellow LED (Available in network configuration only)
Normal Operation: Green LED
Relay Output
Rating 5A, 30VDC or 250 VAC (resistive load)
Audible Alarm 65 dBA at 3 ft. / 1 m
Optional Outputs RS-485 Modbus, 4-20mA, Alarm relay
Sensing Technology
Q1-type Sensor Toxic: Electrochemical
Combustibles: Catalytic
Oxygen: Diffusion fuel cell
Q2-type Sensor Refrigerants: Solid-state
Carbon Monoxide: Electrochemical
Detection Gas Detected Detection Range Accuracy Operating Humidity Range Operating Temperature Range
Q1 Q2 Q1 Q2 Q1 Q2 Q1 Q2
Carbon Monoxide (CO) 0-50 ppm
0-100 ppm
0-250 ppm (std)
0-500 ppm
0-250 ppm +/- 3% +/- 5% 0 - 90% RH
non-condensing 10 - 95% RH
non-condensing -4 to 122°F
(-20 to +50°C) -4 to 122°F
(-20 to +50°C)
Nitrogen Dioxide (NO
2
) 0-10 ppm — +/- 3% — 15 - 90% RH,
continuous — -22 to 122°F
(-30 to +50°C) —
Oxygen (O
2
) 0-1 ppm — +/- 3% — 5 - 95% RH,
continuous — -4 to 131°F
(-20 to +55°C) —
Combustibles 0-100% LEL — +/- 3% +/- 5% — 0 - 95% RH,
non-condensing — 4 to 104°F
(-10 to +40°C)
Refrigerants (R134a) — 0-2000 ppm — +/- 10% — 40 - 100% RH,
non-condensing — 32 to 122°F
(0 to +50°C)
Ratings and Certifications:
Certified to CAN/CSA C22.2 No. 61010-1
116662
Conforms to ANSI/UL 61010-1
The 201T series transmitters are
able to detect a wide range of toxic
and explosive gases. The 201T gas
detection transmitter can work in an
addressable network mode with the
301C controller through an RS-485
Modbus link. They can also be used
in a stand-alone configuration with
an optional 4-20mA or alarm relay
outputs.
The catalytic sensors of the 201T
can be used to detect hundreds of
different gasses and inflammable
vapour concentrations. Toxic
gasses are detected by way
of electrochemical cells, while
metal-air battery cells are used to
detect oxygen. Moreover, a second
generation of semi-conductor
detectors offer a highly effective
solution for a variety of different
applications.
