12/10/07 Model LE13A Text 20
4. Set the switch to bundle cutting (item 13 pages 11).
5. Position the work piece for bundle cutting.
Allowable clamping width: 7 inches (180mm)
6. Roughly align the center of the multi-vise cylinders with the center of the work
pieces to be cut and tighten the lock nuts.
7. Turn the multi-vise handles so that there is 1/4” of clearance between the work
retaining plate and the material.
8. For subsequent operations, refer to the instructions for manual operation and
automatic operation, and perform the bundle cutting.

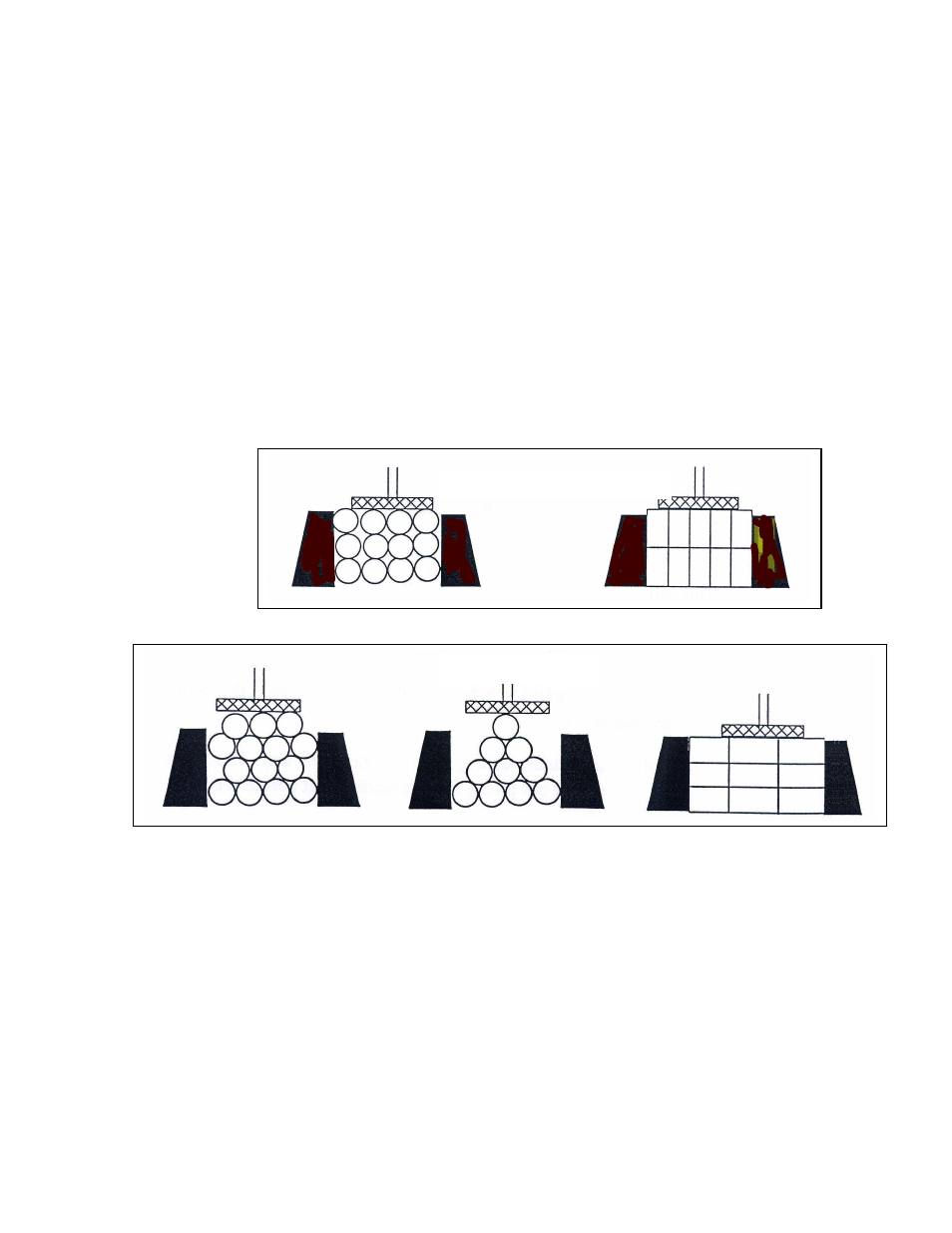

EXAMPLE:
BLADE BREAK IN OPERATION
When a new saw blade is used, be sure to first break in the blade before using it for
actual extended operation. Failure to break in the blade will shorten the life of the
blade and result in less than optimum efficiency. To break in the blade, proceed as
follows:
1. Lengthen the time required for cutting 2-3 times that of normal.
CORRECT
INCORRECT
