Dake Model LE 13A User Manual
Page 13
12/10/07 Model LE13A Text
13
13. Vise shut off switch.
When this switch is off the counter will not work.
14. FEEDING-TIMES PRESET COUNTER
When a cutting length of more than 23” (600mm) is required, preset the required
number of feeds on this counter. The counter is capable of being set to the
maximum of nine feeds. 9*15.74=141.66 (9 x 400mm = 3600mm)
15. WORKING LIGHT
Turn this knob to the left to have the work light on, turn the knob to the right to have
the work light off.
16. REAR VISE STOP POSITION SWITCH
For bundle cutting, set this switch to the multiple picture, so that the rear vise
remains at the forward limit position. For single cutting, set this switch to the single
picture, so that the rear vise stays at the backward limit position.
NOTE: When the switch is set for bundle cutting, the blade will not start
unless the rear vise is at the forward limit positionBLADE SPEED ADJUSTING
BUTTON (Not Shown)

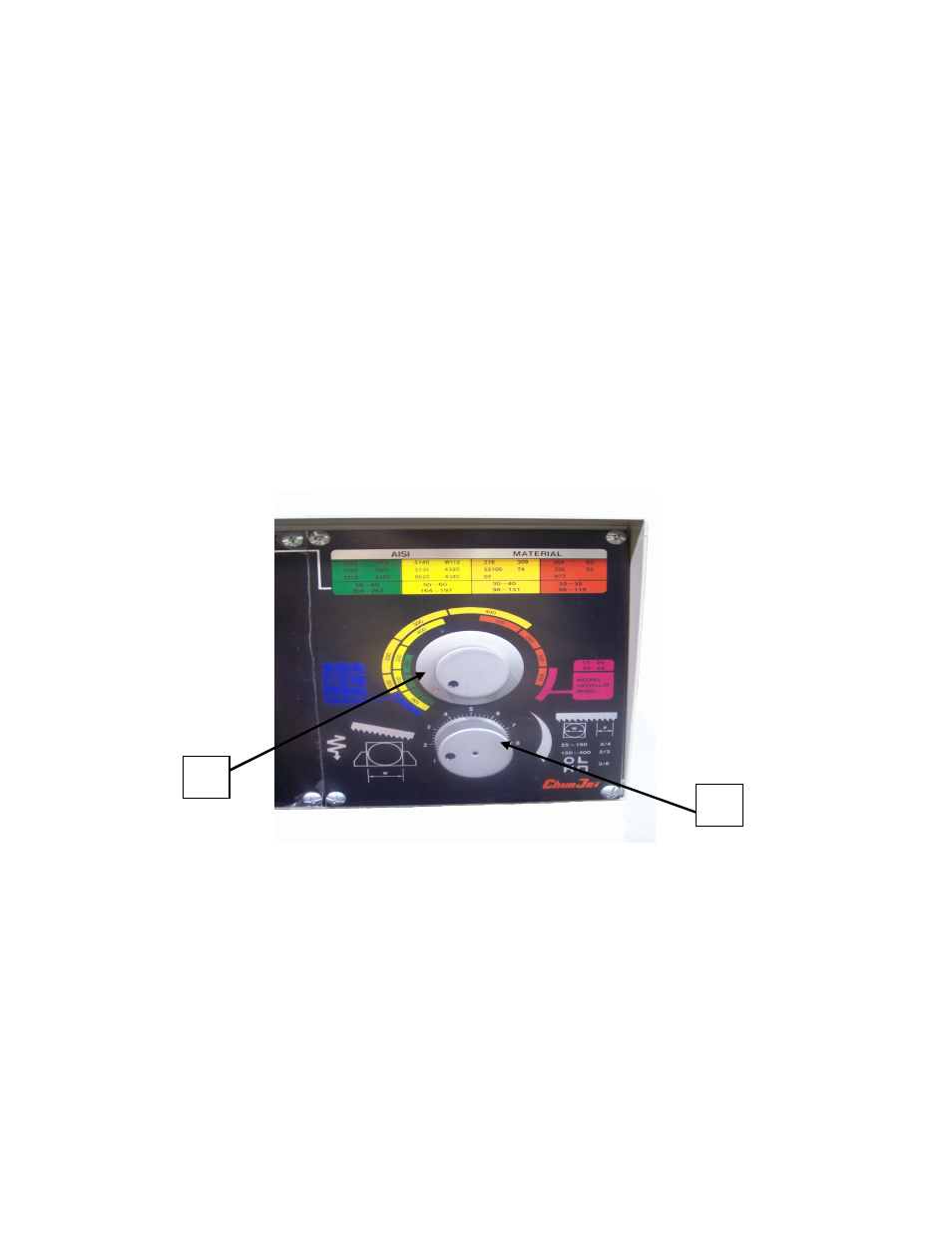

17. Blade feed
When this control is turned clockwise, the cutting feed is increased. When turned
counter clockwise the feed will decrease. Align the feed control with the zone which
corresponds to the materiel on the work piece to be cut.
18. CUTTING PRESSURE CONTROL & FLOW CONTROL.
When this control is turned clockwise, the cutting force of the saw blade increases;
when it is turned counterclockwise, the cutting force decreases. Align the pressure
control with the zone which corresponds to the material on the work piece to be cut.
17
18
