NOTE:
1. When setting the cutting length, be sure to turn the hand wheel
clockwise past the desired length, then turn it counter clock wise to
the desired length to prevent error due to the backlash.
c. Tighten the hand-wheel lock screw
4. If the required cutting length exceeds the maximum cutting length of 23.6 inches
(600mm), feed the work piece as many times as necessary, using the feed
times preset counter (item 14 page 11). For example: if a cutting length of 31.5
inches (800mm) is required.
a. Divide 31.5 by 2 =15.75
b. This will be the length of cut needed to make 31.5 inches.
c. Set the feed times counter at 2.
d. Now the material will be pushed forward two times, each time moving the
material forward 15.75 inches.
NOTE:
i. The cutting length preset device is factory adjusted to compensate
for the set width of the saw blade.
ii. When the feeding times preset counter is not in use, set it a 1.
iii. The feeding times preset counter is capable of feeding the work
piece nine times, up to a maximum cutting length of 212.5 inches
(5400mm).
5. How to set the number of required cuts on the cutting piece counter.
Warning!!!!!
Do not change the number of cuts during cutting operation.
a. Set the cutting piece counter switch (item 12 page 11) at “o” (OFF).
b. Press the reset button (on the bottom of the readout) to reset all white
numerals to zero.
c. On the top of this read out there are five black buttons, each button is a
different digit. Push these buttons to desired amount of pieces to be cut.
d. After the number of cuts has been set.
e. Set the counter ON/OFF switch at “| “(ON).

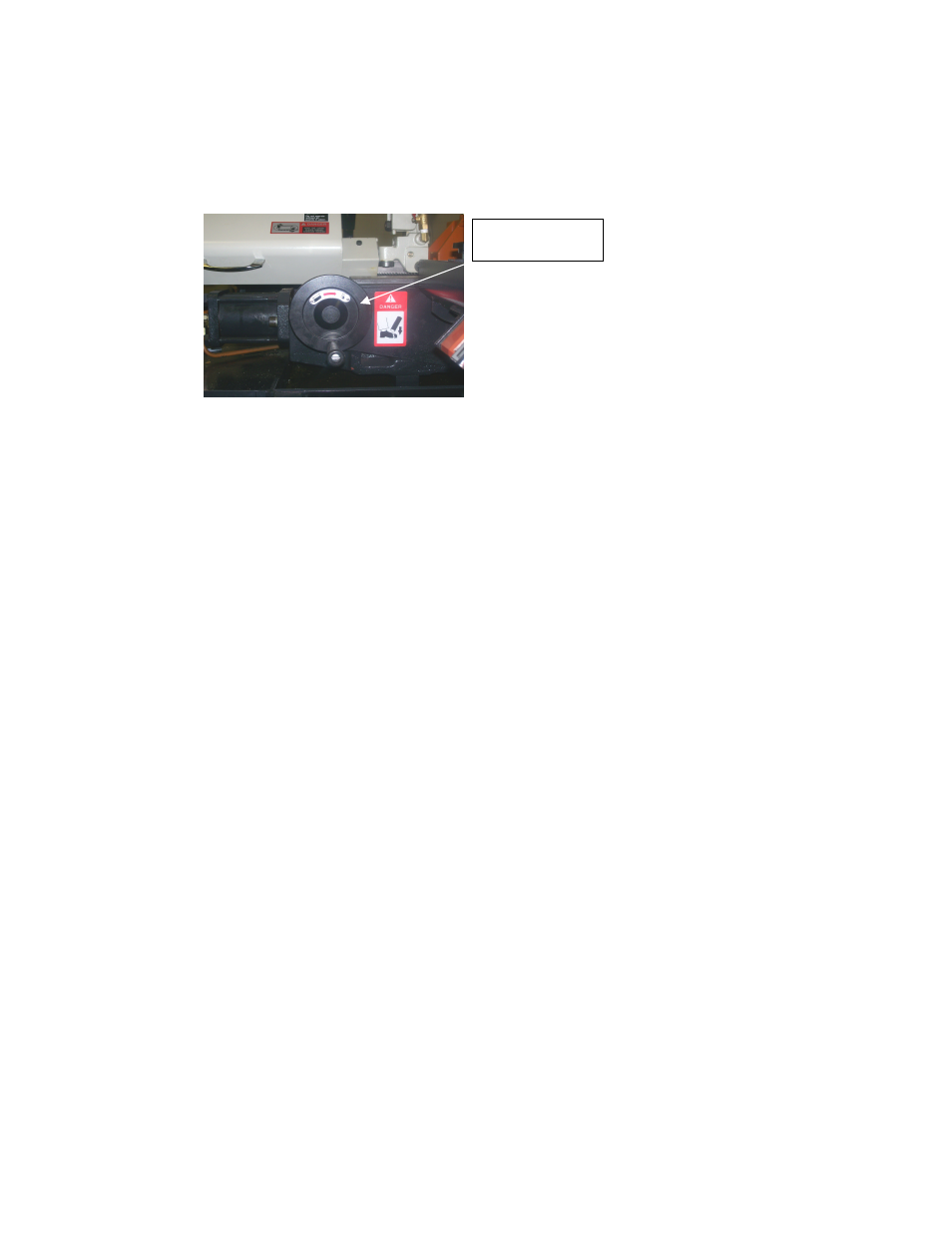

Hand wheel
