4.5 Blade speed change
3. Adjust the saw blade speed.

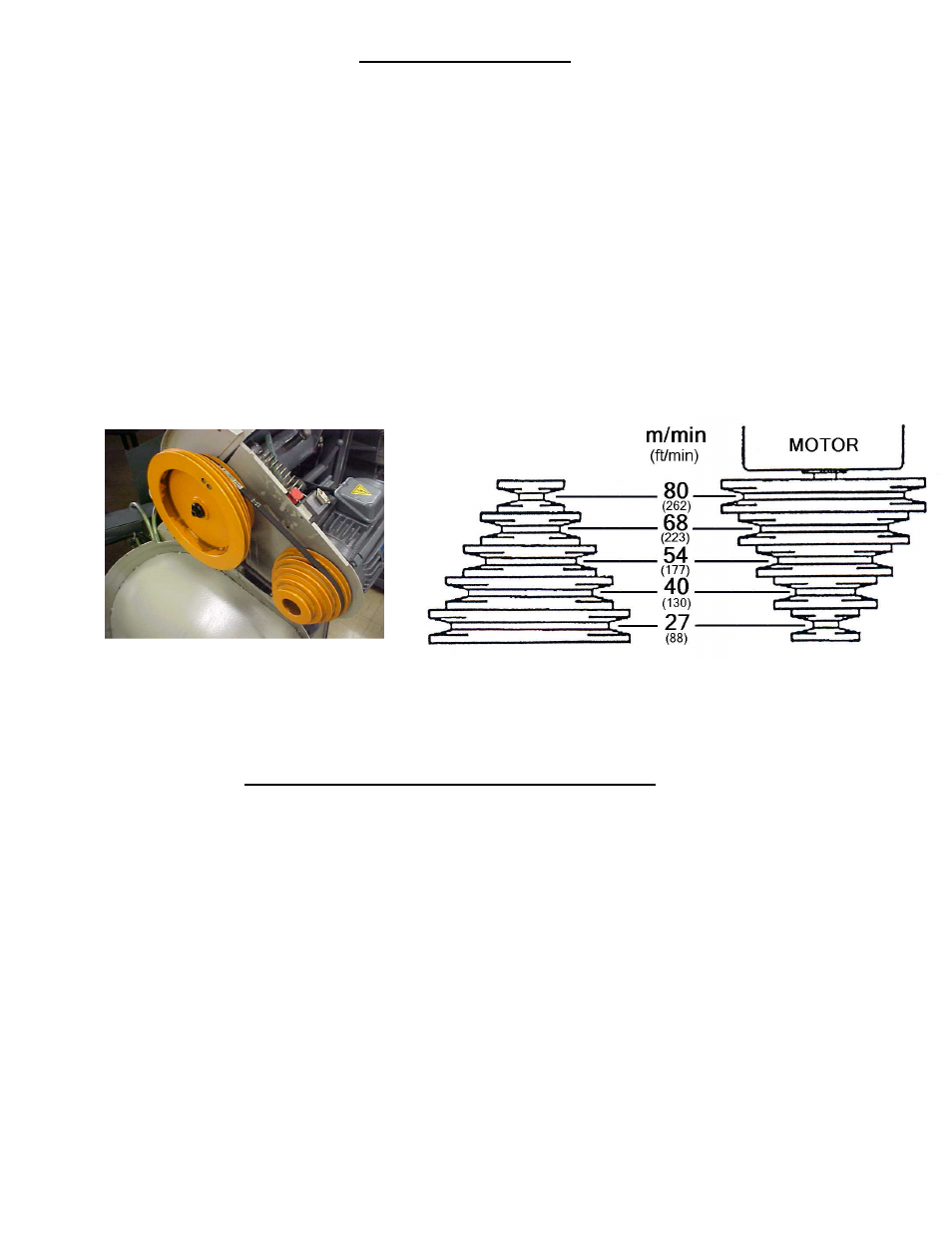

c. There is a handle just to the right of the motor, when loosened the
motor can be moved up and down. Move the motor up and move the
belt to the desired speed.
d. It is necessary to properly adjust the saw blade speed, depending
upon the material and shape of the work piece to be cut.
e. The blade drive uses a V-Belt: A-47 (60 Hz) and A-48 (50 Hz).
Blade speeds are 27, 40, 54, 68 and 80m/min
4.6 Part length set up and automatic operation
How to set the required cutting length on the cutting length counter.
WARNING!!!!!
Do not change the numerals (number of feeds) on the feeding times
preset counter during operation.
a. Loosen the hand-wheel lock screw.
b. Turn the hand-wheel to set the required cutting length on the cutting
length counter.
