IMPORTING BACKGROUND IMAGES

Background imagery can be imported into the project by selecting the ‘Import GeoTiff’ option
from the ‘File’ menu, or by right-clicking in the ‘GeoTiff Cells’ section of the file tree and
selecting ‘Add Layer’.

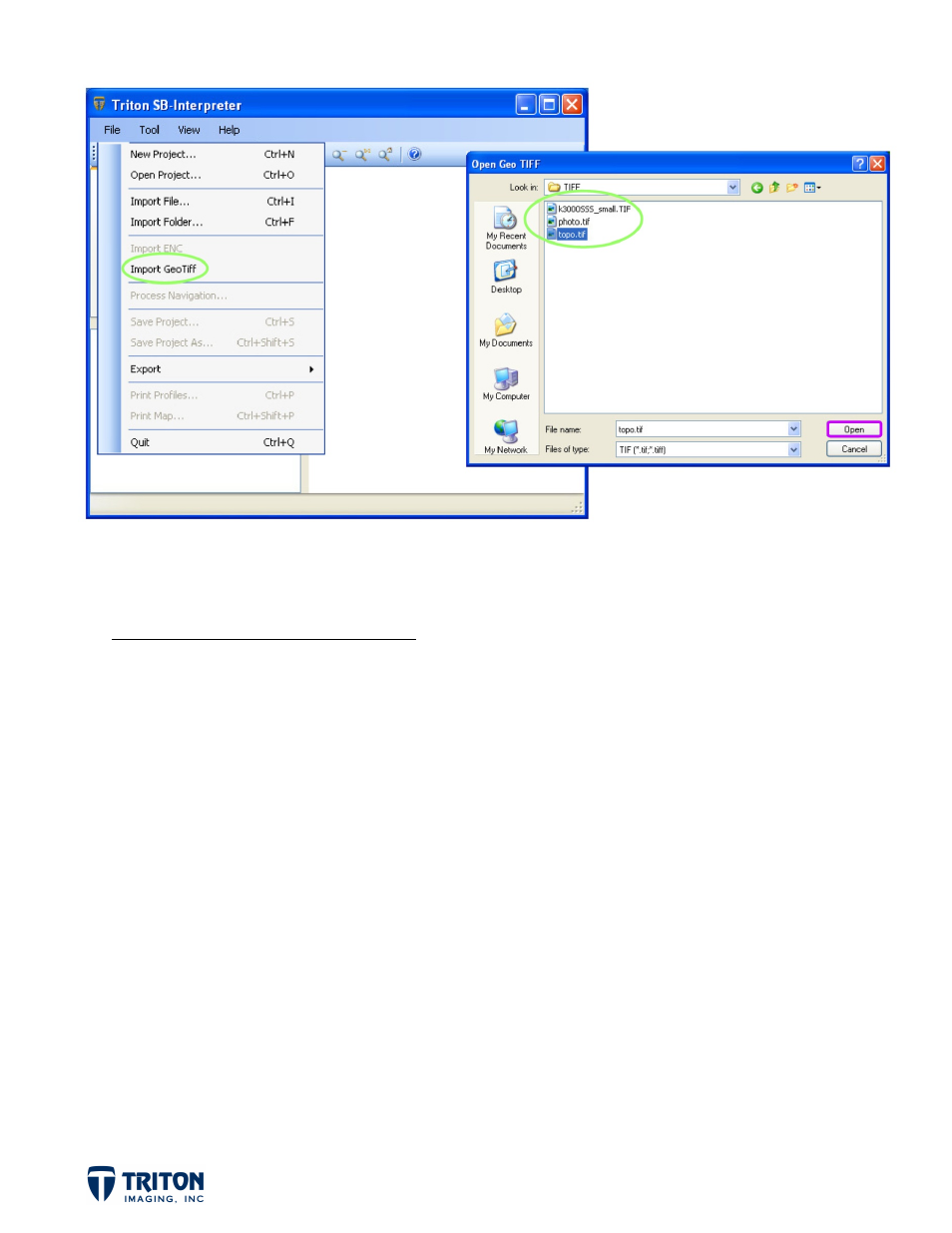

STEP 3A: Import Images:

Select ‘Import GeoTiff’ from the ‘File’ menu

Select the folder where the demo data was copied to on your hard drive

…/DemoFiles/SB-I_DemoFiles/TIFF

Select the file ‘Topo.tif’

For background imagery, the import projection must be manually set. This can be
accomplished prior to importing via the ‘Projections’ tab in ‘Application Settings’
(as mentioned previously) or at the time of import.
