Main door switch assembly – American Dryer Corp. D3030 User Manual
Page 9
450215-2
Telephone: 01422 822282 / Fax: 01422 824390
9

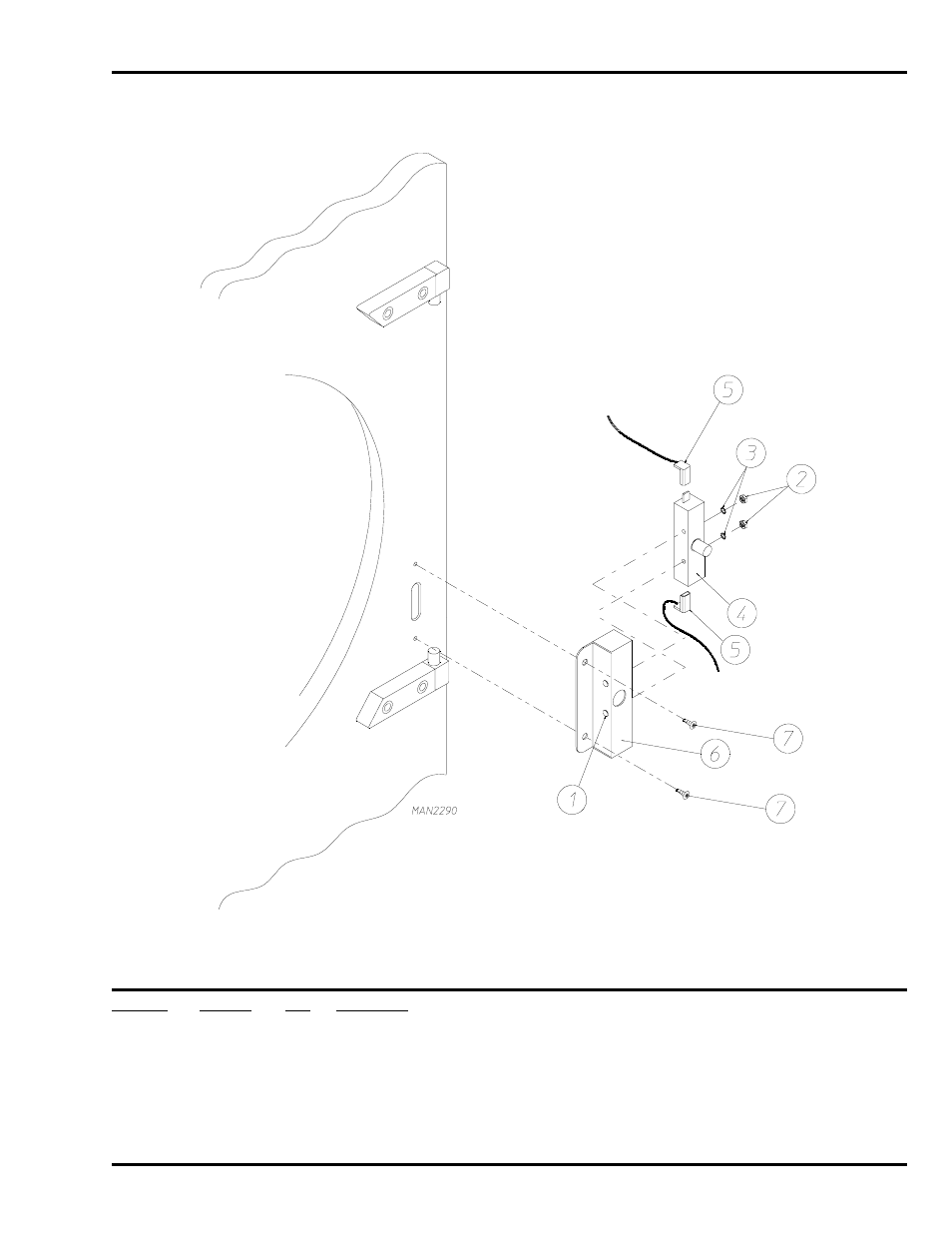

Main Door Switch Assembly
Illus. No.
Part No.
Qty.
Description
1
153566
2
#6-32 x 7/8” Clinch Stud
2
152013
2
#6-32 Hex Nut
3
153010
2
#6 Star Washer
4
137005
1
Single-Pole Door Switch
5
122636
2
Flag Terminal
6
881211
1
Main Door Switch Housing
7
150301
2
#8-18 x 7/16” Phillips Pan Head TEK Screw
