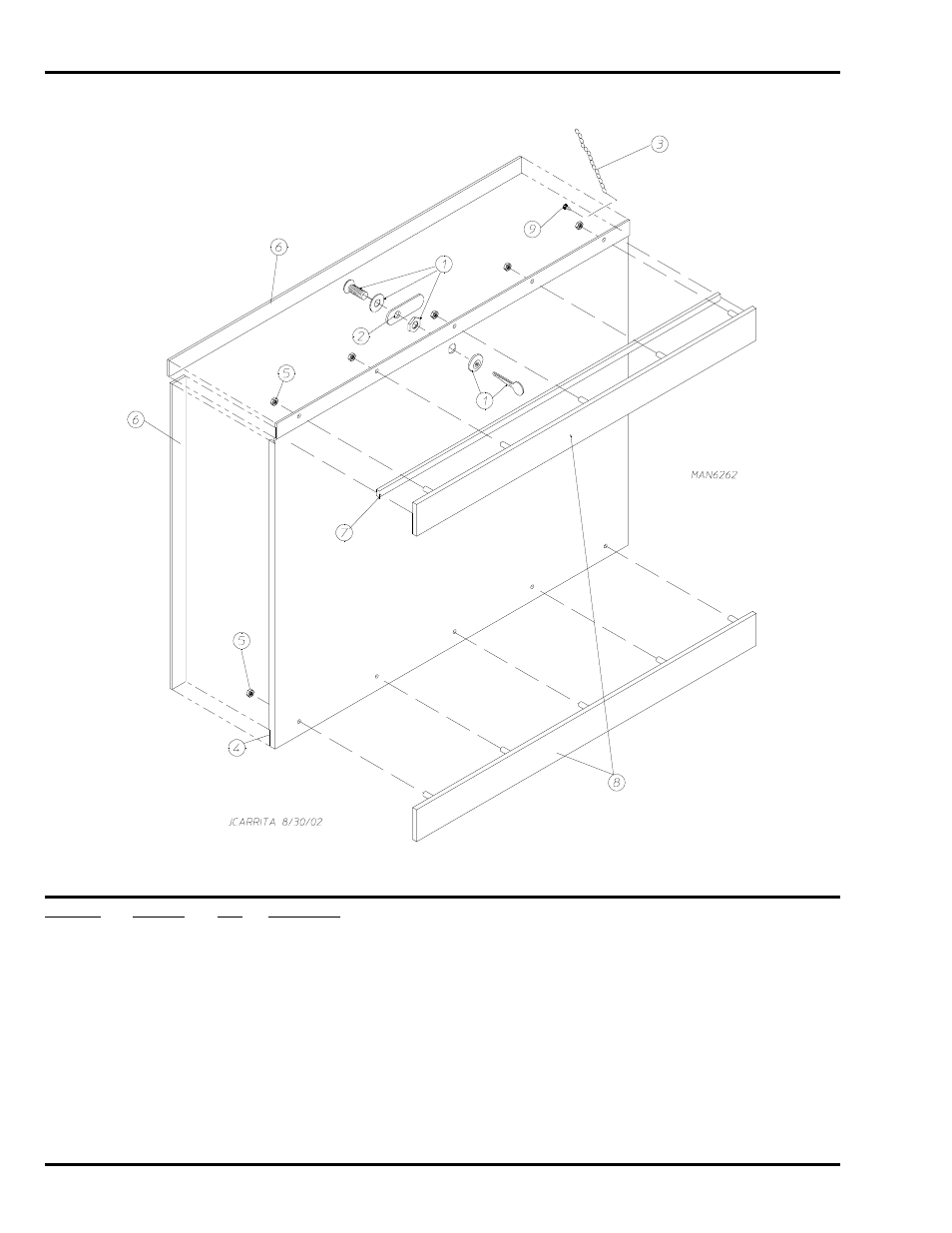

Drop Lint Door Assembly

Illus. No.

Part No.

Qty.

Description

1

160001

1

AD-100 Lock Assembly with Key (for coin models Only)

160103

1

AD-100 Key ONLY

2

160016

1

Lock Cam

3

108120

1

Chain for Drop Lint Door

4

883533

1

White Drop Lint Door Assembly
(includes illus. nos. 4 through 8)

5

152014

10

1/4-20 Hex Flange Nut

6

117604

7

Neoprene Sponge Tape (sold by the foot)

7

117603

3

Noise Suppressor Tape (sold by the foot)

8

883531

2

Black Trim / Kick Plate

9

150419

2

#6 x 1/2” Tamperproof TEK Screw

150418

1

Tamperproof Screw Hand Driver
