22 JLA Limited 450215-2

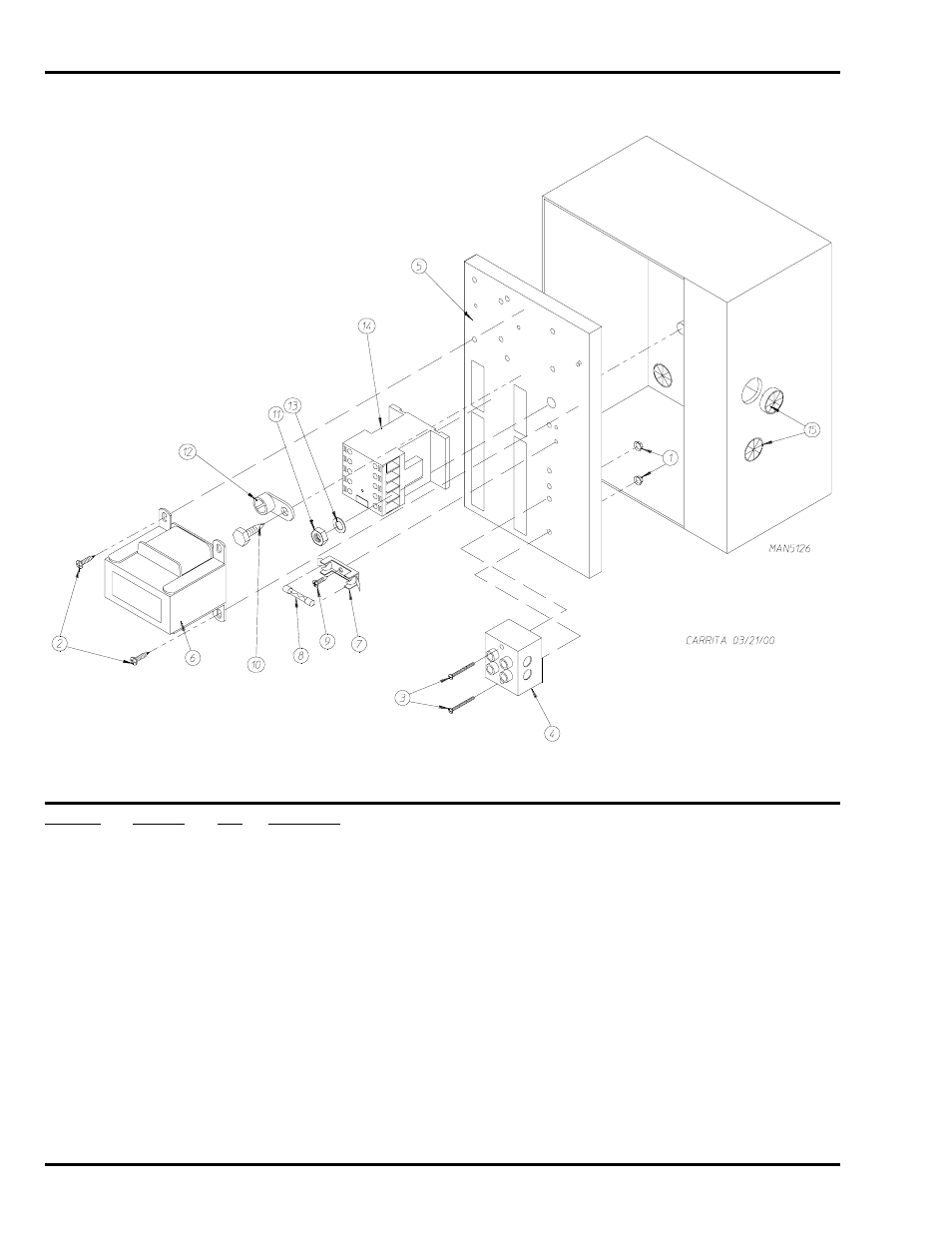

Rear Electric Relay Panel Assembly
Illus. No. Part No. Qty. Description
1 151000 2 #6-32 Pal Nut
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150008 2 #6-32 x 1-1/4” Phillips Pan Head Machine Screw
4 120716 1 2-Position Terminal Block
5 322812 1 Rear Electric Mounting Plate ONLY
830469 1 Rear Electric Panel Assembly Complete 208-230 Volt 1ø
(includes illus. nos. 1 through 14)
6 822799 1 Transformer Assembly – 230 Volt 1ø
7 136008 2 Fuse Holder
8 136057 2 1/2-Amp (Slo-Blo) Fuse
9 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
10 150297 1 #10 x 1/2” Green Hex Washer TEK Screw
11 152004 1 5/16-18 Hex Nut
12 121010 1 L-70 Ground Lug
13 153002 1 5/16” Lock Washer
14 132496 1 3-Pole Contactor
15 121300 3 Open / Close Bushing
