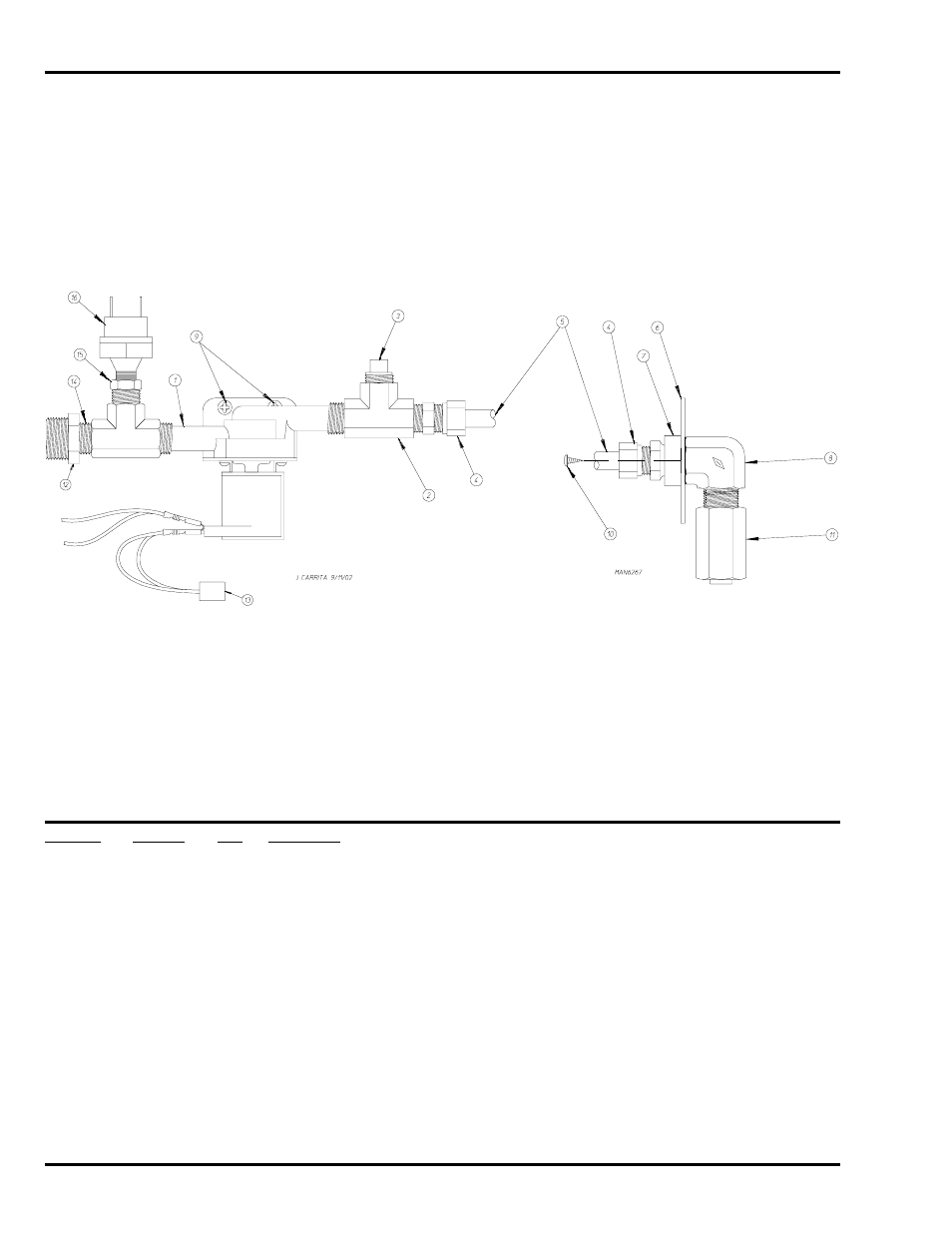

S.A.F.E. Solenoid and Piping Assembly
Illus. No. Part No. Qty. Description
1 165114 1 Sensor Activated Fire Extinguishing Solenoid Valve 24V 50/60 Hz
2 143220 1 3/8” F.P.T. Brass Tee
3 143251 1 3/8” M.P.T. Brass Plug
4 143208 2 3/8” Comp x 3/8” M.P.T. Brass Connector
5 143099 6’ 3/8” OD x 0.035 Wall Copper Tubing (sold by the foot)
6 311588 1 Sprinkler Head Mounting Plate
7 143303 1 3/8” N.P.T. Brass Locknut
8 143155 1 3/8” Brass Elbow 90°
9 150309 2 #10 x 1/2” Self-Drilling Screw
10 150301 2 #8-18 x 7/16” TEK Screw
11 143581 1 3 GPM 3/8” F.P.T. Spray Nozzle
12 143177 1 3/4” to 3/8” Bushing for Sensor Activated Fire Extinguishing Solenoid Valve
13 824081 1 R.C. Network Assembly
14 143241 1 3/8” x Close Brass Nipple
15 143315 1 3/8” M.N.P.T. x 1/8” F.N.P.T. Brass Bushing
16 136987 1 Water Jet Pressure Switch
