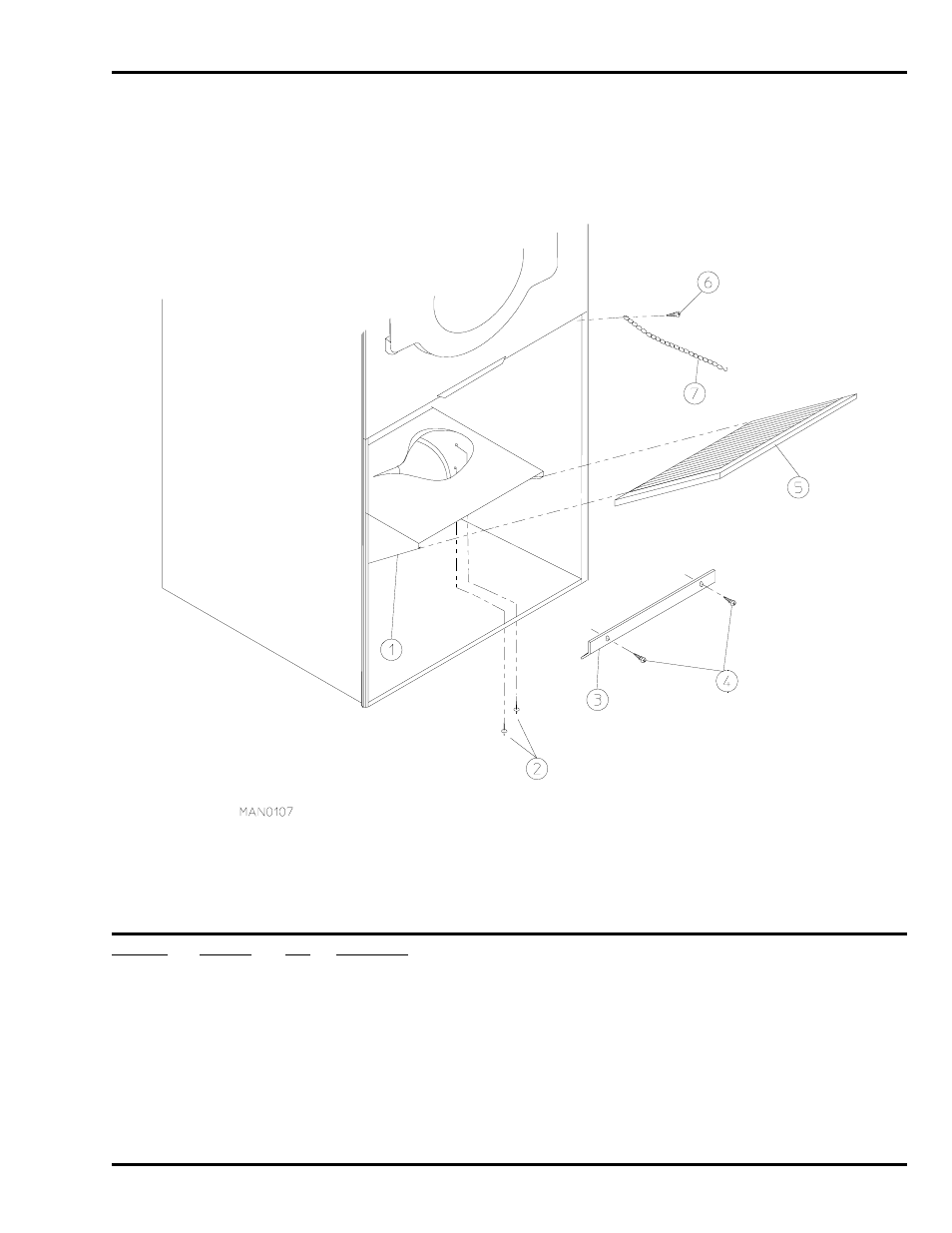

Lint Trap Assembly

Illus. No.

Part No.

Qty.

Description

1

800408

1

Lint Trap Assembly Complete
(includes illus. nos. 1 and 3 through 5)

800409

1

Lint Trap ONLY

2

154200

7

5/32” Pop Rivet

3

304102

1

Lint Screen Holder ONLY

4

150300

3

#10-16 x 1/2” Hex Washer TEK Screw

5

800503

1

Lint Screen

6

150419

2

#6 x 1/2” Tamperproof TEK Screw

7

108120

1

Chain for Drop Lint Door (10-1/2” length)

–

150418

1

Tamperproof Screw Hand Driver
