10 JLA Limited 450215-2

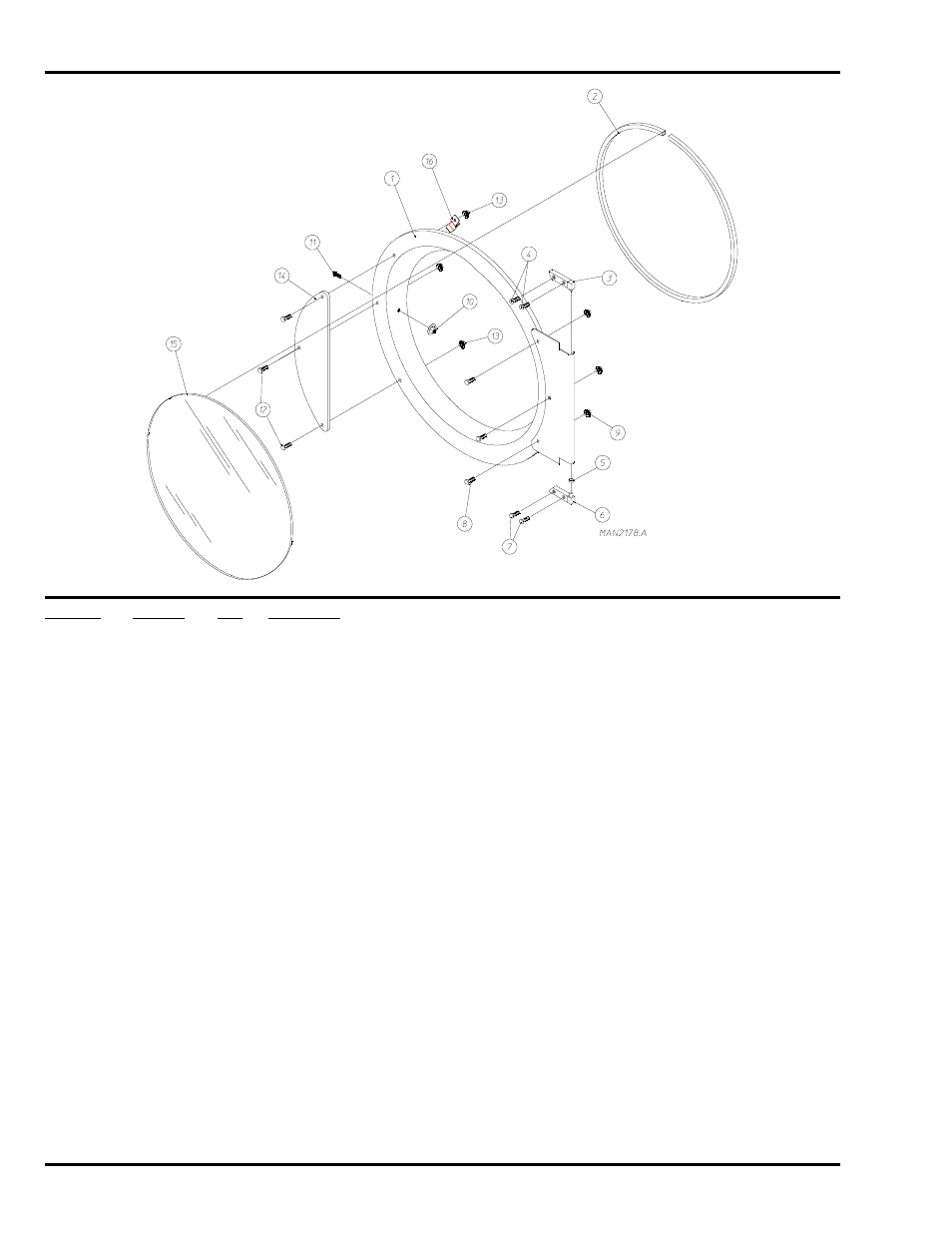

Main Door Assembly
Illus. No. Part No. Qty. Description
1 822661 1 Black Main Door Assembly Complete
(for models mfd. as of September 5, 2007)
(includes illus. nos. 1, 2, 8, 9, and 12 through 16)
881150 1 Black Main Door Assembly Complete
(for models mfd. prior to September 5, 2007)
(includes illus. nos. 1, 2, 8, and 9 through 15)
2 102354 1 Door Gasket
401010 1 Mastic Adhesive (5 oz. tube)
3 881152 1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 881151 1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5 through 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/4-20 Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
(for models mfd. prior to September 5, 2007)
11 150120 1 Door Screw
(for models mfd. prior to September 5, 2007)
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/4-20 Free Spin Wash Nut
14 881210 1 Black Main Door Handle ONLY
15 102211 1 20-7/16” Door Glass
170730 1 Adhesive (10.3 oz. cartridge)
16 319298 2 Magnet Bracket
(for models mfd. as of September 5, 2007)
