Front panel assembly – American Dryer Corp. D3030 User Manual

Page 8

background image

8

JLA Limited

450215-2

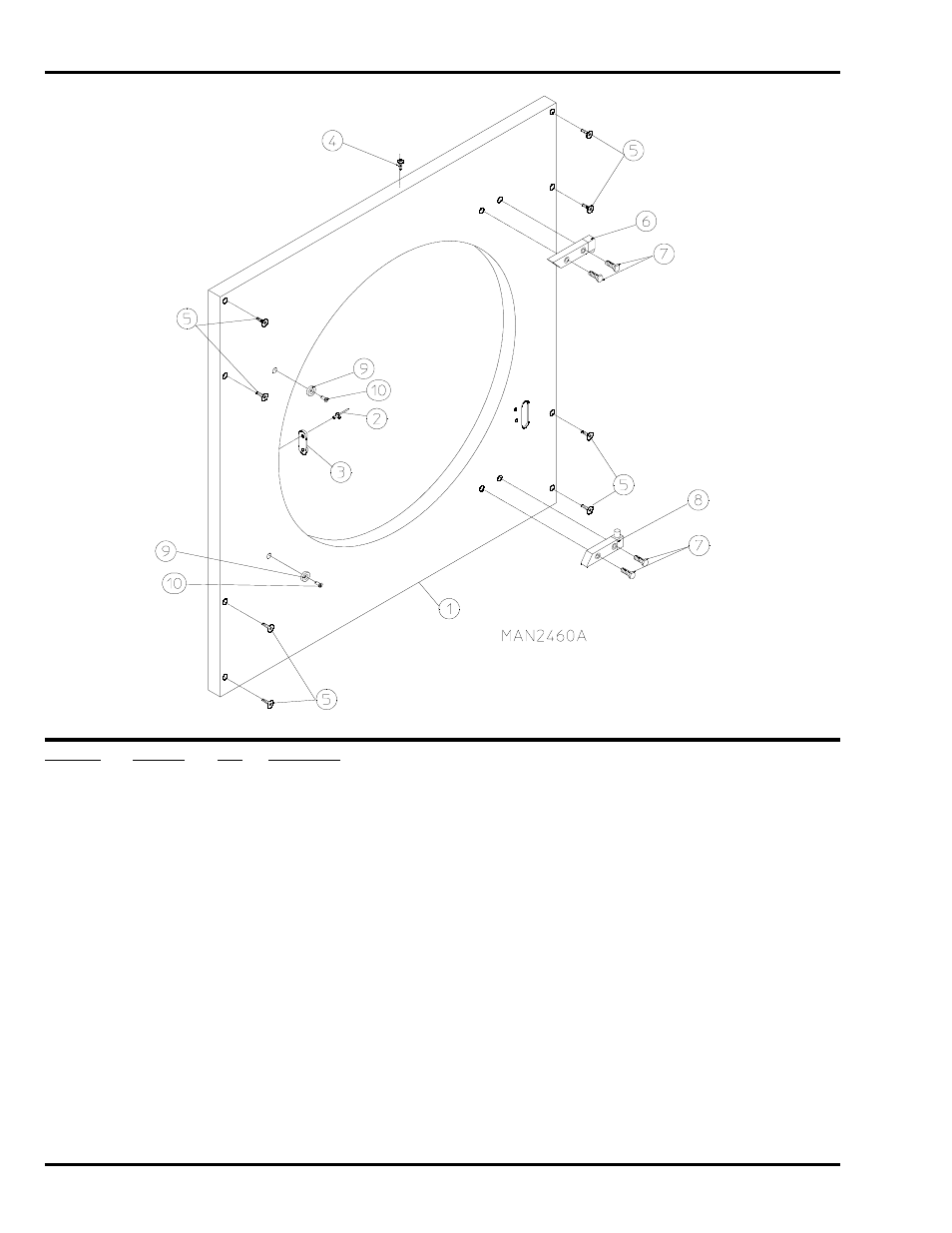

Front Panel Assembly

Illus. No.

Part No.

Qty.

Description

1

*

822855

1

Front Panel Assembly
(for models mfd. as of September 5, 2007)

800626

1

Front Panel Assembly
(for models mfd. prior to September 5, 2007)
(includes illus. nos. 1 through 3)

2

154215

2

1/8” Pop Rivet
(for models mfd. prior to September 5, 2007)

3

170330

1

Friction Door Latch
(for models mfd. prior to September 5, 2007)

4

150300

1

#10-16 x 1/2” Hex Washer TEK Screw

5

150301

8

#8-18 x 7/16” Phillips Pan Head TEK Screw

6

881152

1

Black Top Hinge Block Assembly

7

150445

4

1/4-20 x 7/8” Black Cap Head Setscrew

8

881151

1

Black Bottom Hinge Block Assembly

153031

1

1/4” Nylon Washer … Not Illustrated

9

102004

2

Door Magnet
(for models mfd. as of September 5, 2007)

10

152223

2

T-20 TORX

®

Screw

(for models mfd. as of September 5, 2007)

*

Specify color when ordering.
