Vi-D5000 IR Dome
Videoswitch Page 15 VD601A.DOC

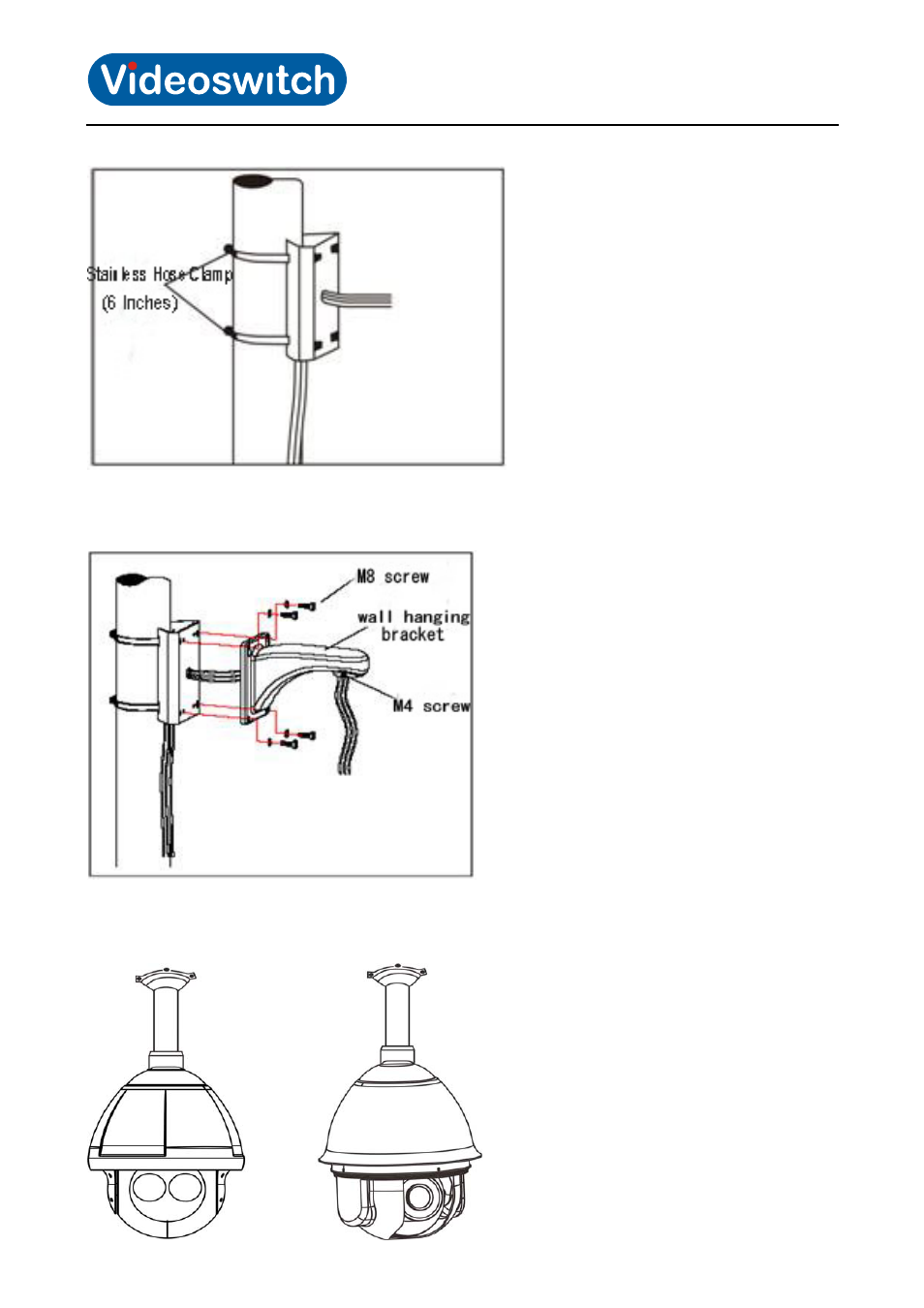

Fig 16
b. As shown in fig 17, fix the wall hanging bracket with all cables through it on the pole mounted attachment.
Fig 17
2.5.4 Vi-B15 Pendant (ceiling) Bracket
Fig 18
