Vi-D5000 IR Dome

Videoswitch Page

VD601A.DOC

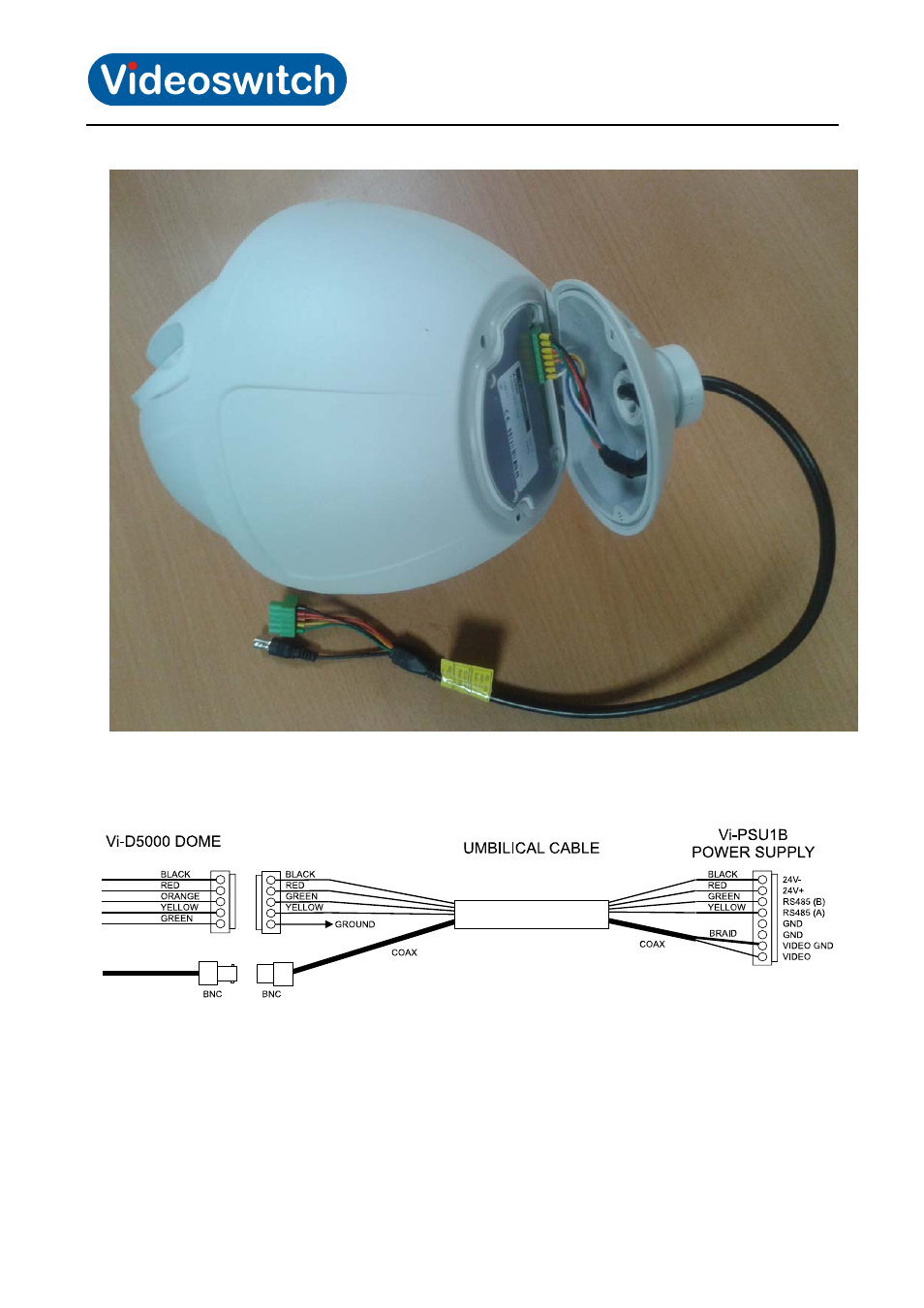

2.2 Connection Details

Note
A 5m umbilical cable is included

2.3 DIP Switch Settings

The dome has DIP switches for setting protocol, baud rate, termination and address. All these settings except
termination can be made from within the menu, so typically there is no need to access these switches. If
required, the DIP switches are accessible by removing a panel on the side of the dome just above the camera
lens. Ensure the waterproof seal is restored when replacing the panel.
