Vi-D5000 IR Dome
Videoswitch Page 14 VD601A.DOC

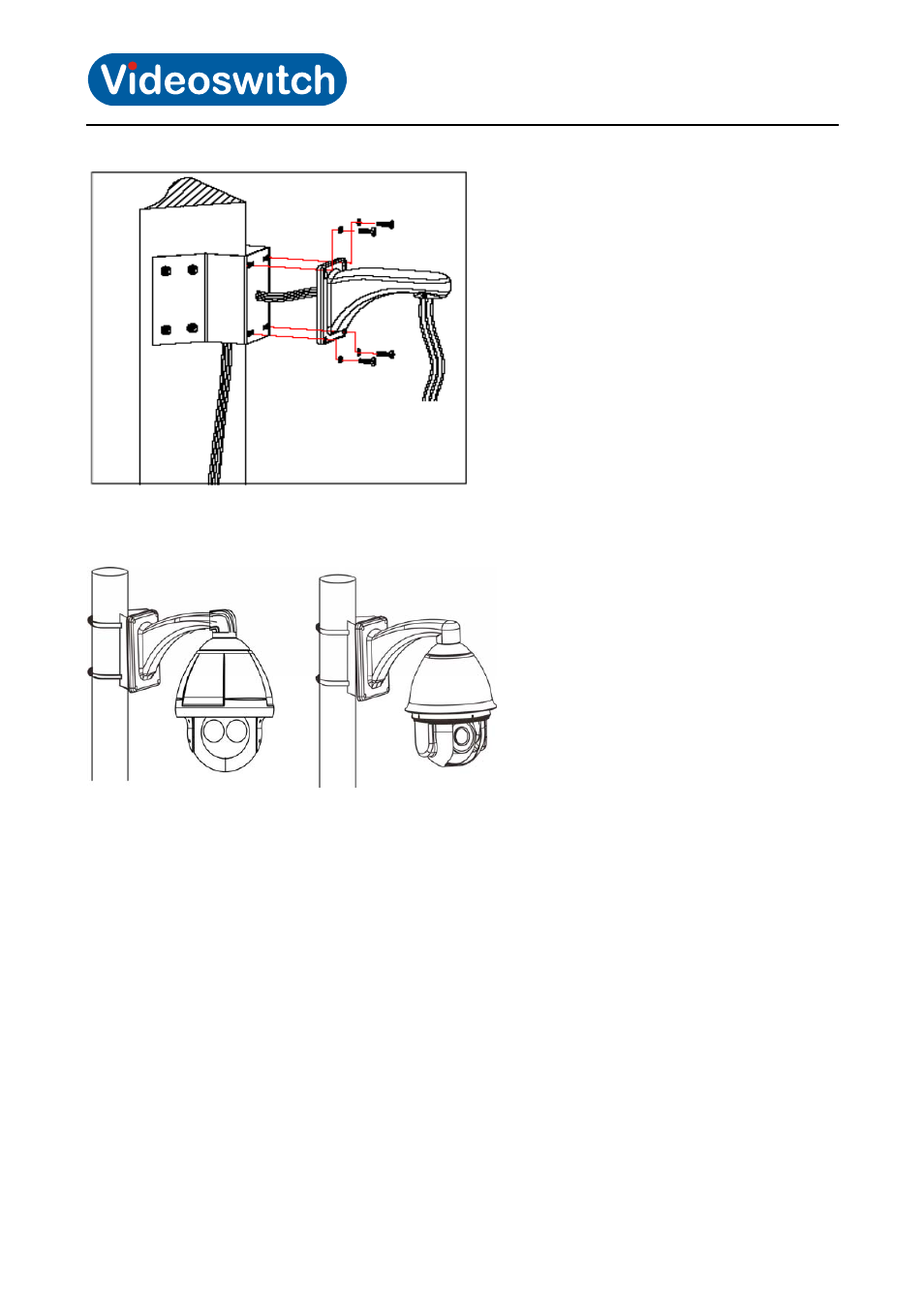

Fig 14
2.5.3 Vi-B14 Pole Mount Adaptor
Fig 15
Installation
Pole mounted dome can be used in the hard pole structure in indoor and outdoor environment whose diameter
should match the installation size of stainless hose clamps. Factory default is 6 inches stainless hose clamps
(fit φ130-152mm pillar). The pole structure can bear at least 4 times the weight of the dome. Install corner
mounted attachment and wall hanging bracket:
a. As shown in fig 16, use the stainless hose clamps to fix the pole mounted attachment with all cable through
it on the pole structure.
