2 Installing Power Supply
The CMOR dome runs from 24V DC. The Videoswitch Vi-PSU1 Power Supply must be
used to power the CMOR dome. The Vi-PSU1 is housed in a weatherproof box that may be
mounted externally or internally. Never apply 24AC to the standard DC dome.

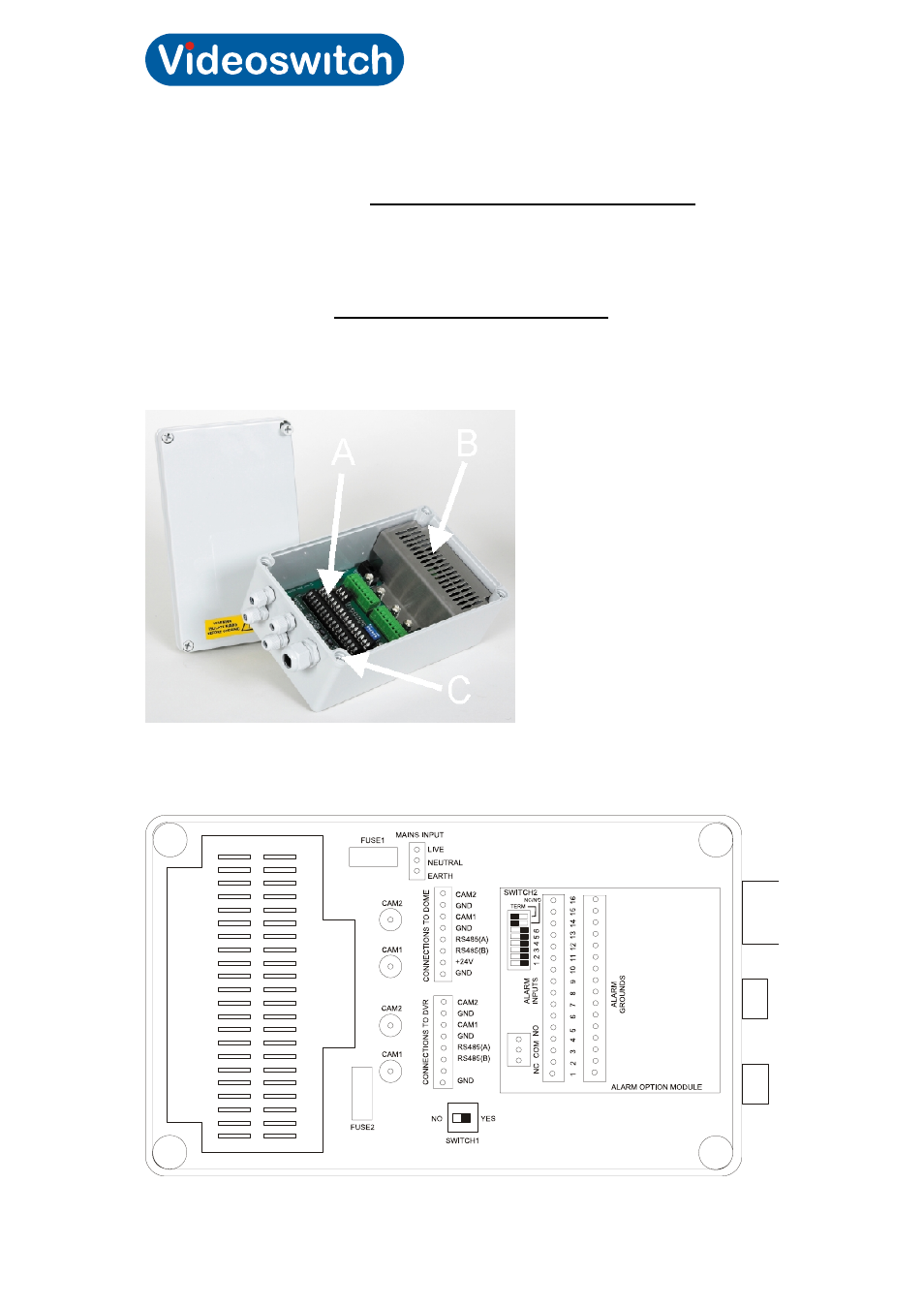

2.1 Fixing power supply to a wall
• Fit the optional alarm module (A) into the power supply using the 4 screws provided.
• For safety reasons never remove the slotted metal cover (B).
• Fix the power supply to a wall using a screw in each of the four corner holes (C).
2.2 Power Supply Connections
