PV200
Closed Loop Proportional Valve Controller
Application Examples

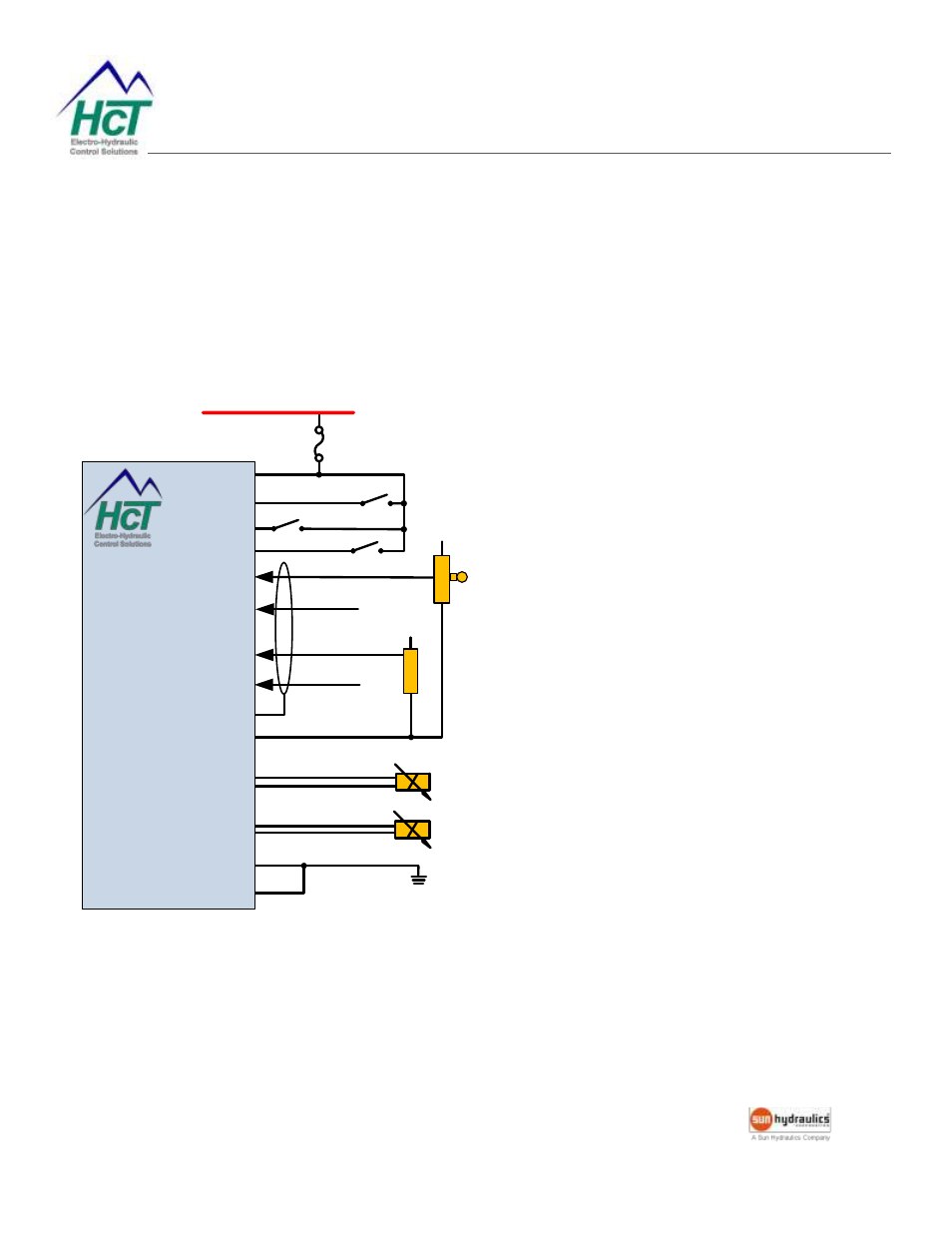

Dual Solenoid Control
The PV200 can drive two solenoids for closed-loop position control.
Set the dither and output settings according to the valve specifications.
FUSE
+V Power Input
12 - 30VDC
PWR 1
PV200
Electronic
Valve
Controller
PWR GND 2
Proportional PWM (Sourcing)
Dig I/P GND 13
Coil B 11 Proportional PWM (Sourcing)
Frame GND 7
TGTV 3
Coil A 9
POSV 4
TGTI 5
POSI 6
Target position (0-5V, or 0-10V)
Coil A 10
Coil B 12
ENB 14
FOR 15
ROR 16
Actual position (0-5V, or 0-10V)
m
A
I/
P
External
Voltage
Target position (4-20mA)
Sig GND 8
+V = enabled
Forward override
Reverse override
Actual position (4-mA)
External
Voltage
V
D
C
I/
P
