PV200
Closed Loop Proportional Valve Controller

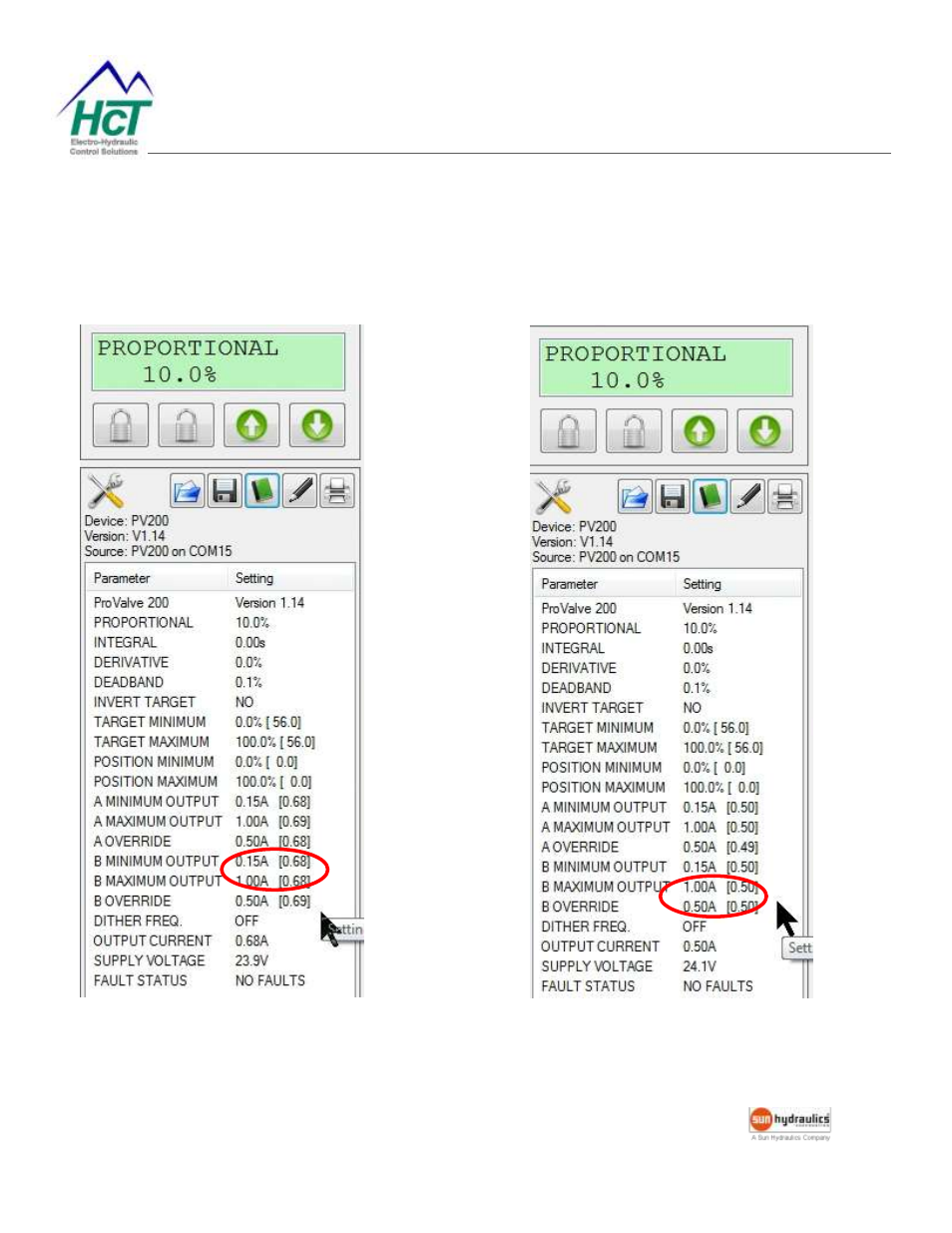

Before switching the “reverse override” ON,
coil B current is 0.68A because the actual
position is 0%, less than the target position
56%.
After switch ing the “reverse override” ON, the
PV200 becomes an open loop controller, coil
B current is set to the override current setting
of 0.5A.
