1

GENERAL DESCRIPTION

The NT series is a range of compact IEEE 802.3 layer two network switches

with automatic speed, duplex and cable sensing. The series features ultra-robust
construction, capable of withstanding environmental extremes for use in mission
critical applications.

These affordable, Class I, Division 2 switches feature redundant power

inputs, hardened metal enclosures, and 16 kV port protection. Each switch is
capable of auto negotiating 10/100 Mb and half/full duplex communications.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the

literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

For 108TX: Use 60/75°C rated copper wire, (0.22Nm) 2 inch-lbs. tightening

torque for field installed connectors.

For 104TX & 105TX: Use 95°C rated copper wire, (0.22Nm) 2 inch-lbs.

tightening torque for field installed connectors.

SPECIFICATIONS

1. POWER: 10-30 VDC

NT104TX/NT105TX: 215 mA max. @ 24VDC
NT108TX: 250 mA max. @ 24VDC

2. LEDs:

LED

COLOR

DESCRIPTION

ON

Power is Applied.

OFF

Power is OFF.

LNK/ACT

ON

Link established, no Activity on cable.

BLINKING

Link established, Activity on cable

OFF

No link activity on cable.

SPD

ON

Link is 100Mbps.

OFF

Link is 10Mbs.

3. ENVIRONMENTAL CONDITIONS:

Operating Temperature Range:
NT104TX/NT105TX: -40 to +80 °C
NT108TX: -40 to +70 °C
Storage Temperature Range: -40 to +85 °C
Operating Humidity: 10-95%, non-condensing
Altitude: Up to 3000 meters.

4. CONSTRUCTION: Brushed aluminum housing
5. CONNECTIONS:

Power: Removable wire clamp screw terminal block.
Wire Gage Capacity: 28 AWG to 16 AWG
Torque: 2 in/lb (0.22 Nm)
Ethernet: RJ-45 UTP ports

6. MOUNTING: Snaps onto standard DIN style top hat (T) profile mounting

rail according to EN50022 -35 x 7.5 and -35 x 15.

7. CERTIFICATIONS AND COMPLIANCES:

UL Listed (N-Tron Incorporated, Part numbers 104TX, 105TX, 108TX. File

#E214222)

Safety: Suitable for use in Class I, Division 2, Groups A, B, C and D

Hazardous locations, or non-hazardous locations only.

Immunity to Industrial Locations:

EMI: EN61000-6-4, EN55011 - Class A

FCC Title 47, Part 15, Subpart B - Class A
ICES-003 – Class A

EMS: EN61000-6-2

EN61000-4-2 (ESD)
EN61000-4-3 (RS)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
EN61000-4-6 (Conducted Disturbances)

8. WEIGHT:

NT104TX/NT105TX: 0.6 lbs. (0.27 Kg)
NT108TX0: 0.7 lbs. (0.31 Kg)

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

 UNMANAGED SWITCH REQUIRES NO CONFIGURATION

 SUPPORTS 10/100 MBPS NETWORKS

 AUTO HALF/FULL DUPLEX NEGOTIATION

 REDUNDANT POWER INPUTS

 AUTO-CROSSING DETECTION SUPPORTS STANDARD AND

CROSSOVER ETHERNET CABLES

Bulletin No. NT100-X
Drawing No. LP0871
Effective 06/11

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

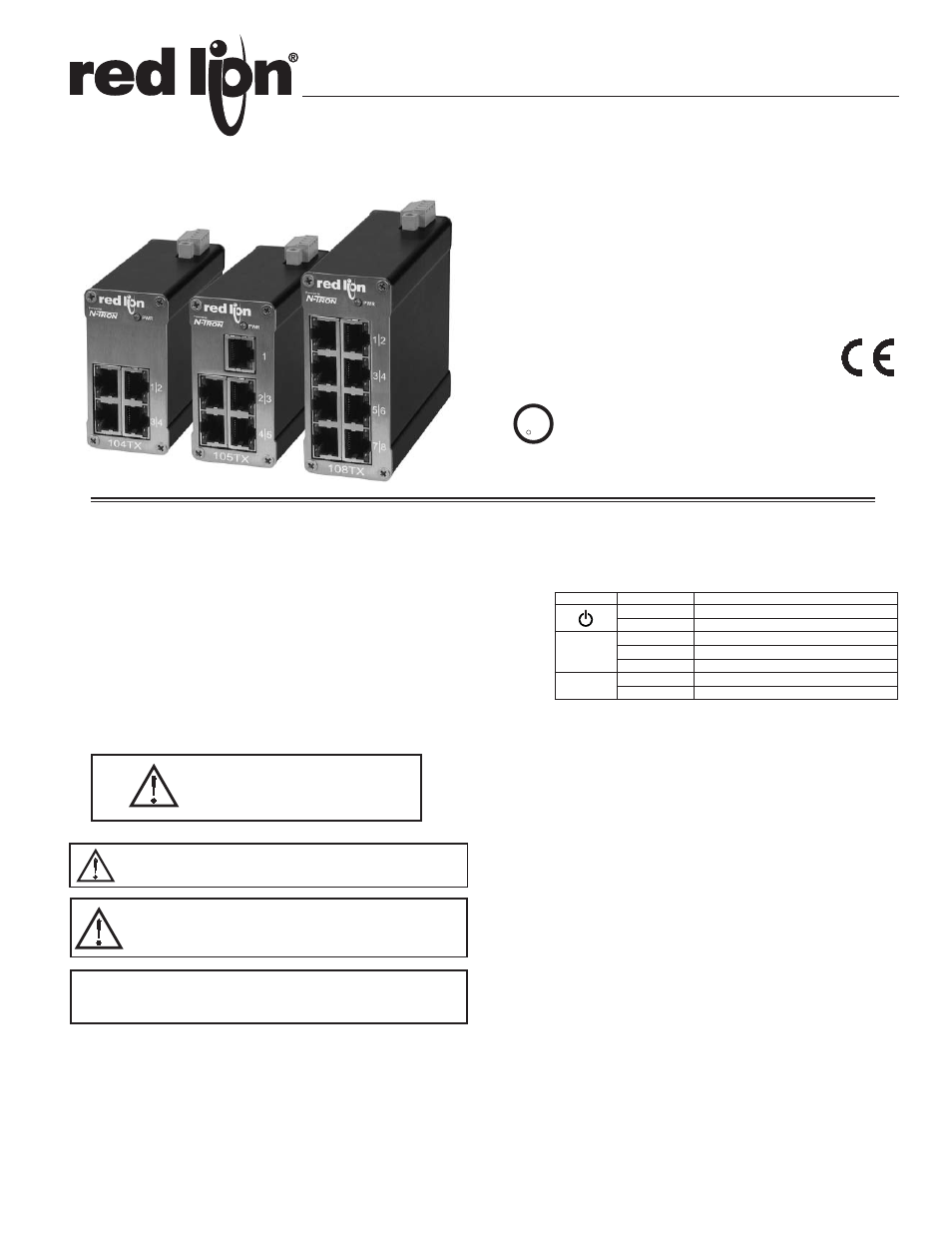

MODEL NT100 SERIES – UNMANAGED INDUSTRIAL ETHERNET SWITCHES

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA
IS KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT
UNLESS POWER HAS BEEN SWITCHED OFF OR AREA IS KNOWN TO BE
NON-HAZARDOUS.

CC

US

US

UL

R

LISTED

65SN

FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
or unclassified or non-hazardous locations only.
