USER'S GUIDE____________________________________________________________________
With the Hand-Held Humidity and
Temperature Meter HM70 or HMI41
Indicator and Calibration Cable
The HMM213 module can be calibrated with the Hand-Held Humidity
and Temperature Meter HM70 or HMI41 indicator and an appropriate
calibration cable (for HM70: 27159ZZ; for HMI41: 19164ZZ).
Connect the cable to the test connector of the HMM213 module and
insert the jumper as indicated in Figure 4 below. For detailed
instructions, see the following documents:
- Vaisala HUMICAP
®
Indicator HMI41 and Probes HMP41/45/46
User's Guide
- Vaisala HUMICAP® Hand-Held Humidity and Temperature Meter
HM70
- Calibration of Digital Transmitters with Vaisala HUMICAP®
Humidity Indicator HMI41 Cables 19164ZZ and 25917ZZ User's
Guide
1
2

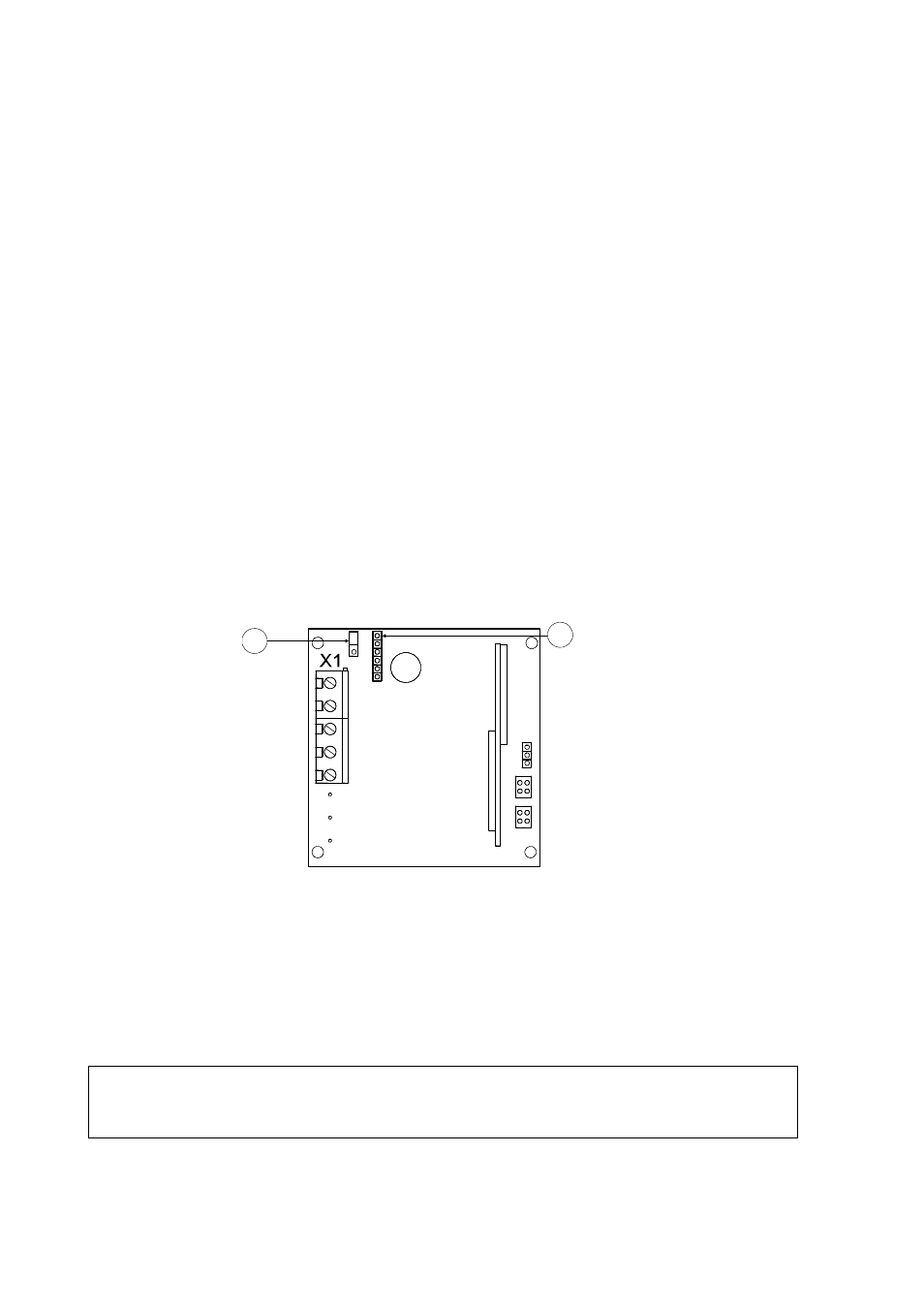

Figure 4 Calibration Connector for the HM70 or HMI41
The following numbers refer to Figure 4 above:
1 = For calibration with the HM70 or HMI41, insert the jumper as
indicated here.
2 = Calibration connector for the HM70 or HMI41
NOTE The serial communication parameters are:
1200 bauds, no parity, 8 data bits, 1 stop bit
34 ____________________________________________________________________ U339EN-1.3
