State PR6 75 XODS - Manual (Page 9)

9

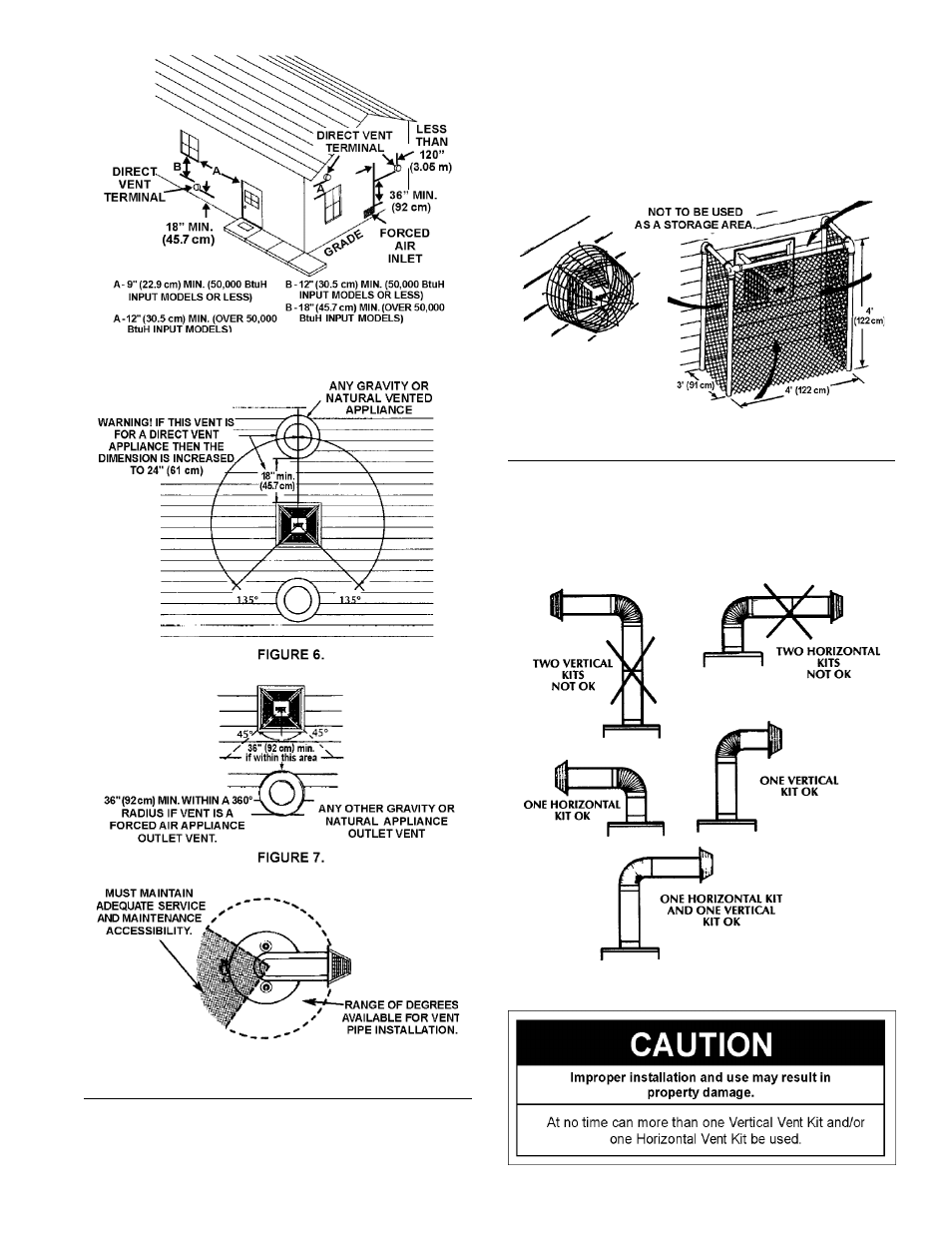

FIGURE 5.
FIGURE 8.
Optional Wire Grill
When the water heater vent cap is low enough to be touched
accidentally, or is accessible to small children, installation of a
protective vent cover is recommended. See Figure 9.
Some local codes may require a vent cap cover. Figure 9 shows the
optional wire vent cap protector available from the water heater
manufacturer.
A wire mesh chain link fence (see Figure 9) may be used instead of the
factory cover. Care should be taken to maintain adequate ventilation
around the vent cap. If a chain link fence is installed, it must not be used
as a storage area for items that may block proper ventilation.
FIGURE 9.
Flue Extensions
There are three optional extension kits available. Any combination of
the three kits can be chosen; however, only one kit can be used
vertically and/or horizontally, see Figures 10 & 11.
Unless otherwise specified at the time of ordering, a standard exten-
sion kit (9000687) is individually packaged and shipped within the water
heater carton.
FIGURE 10.
