TYPICAL INSTALLATION

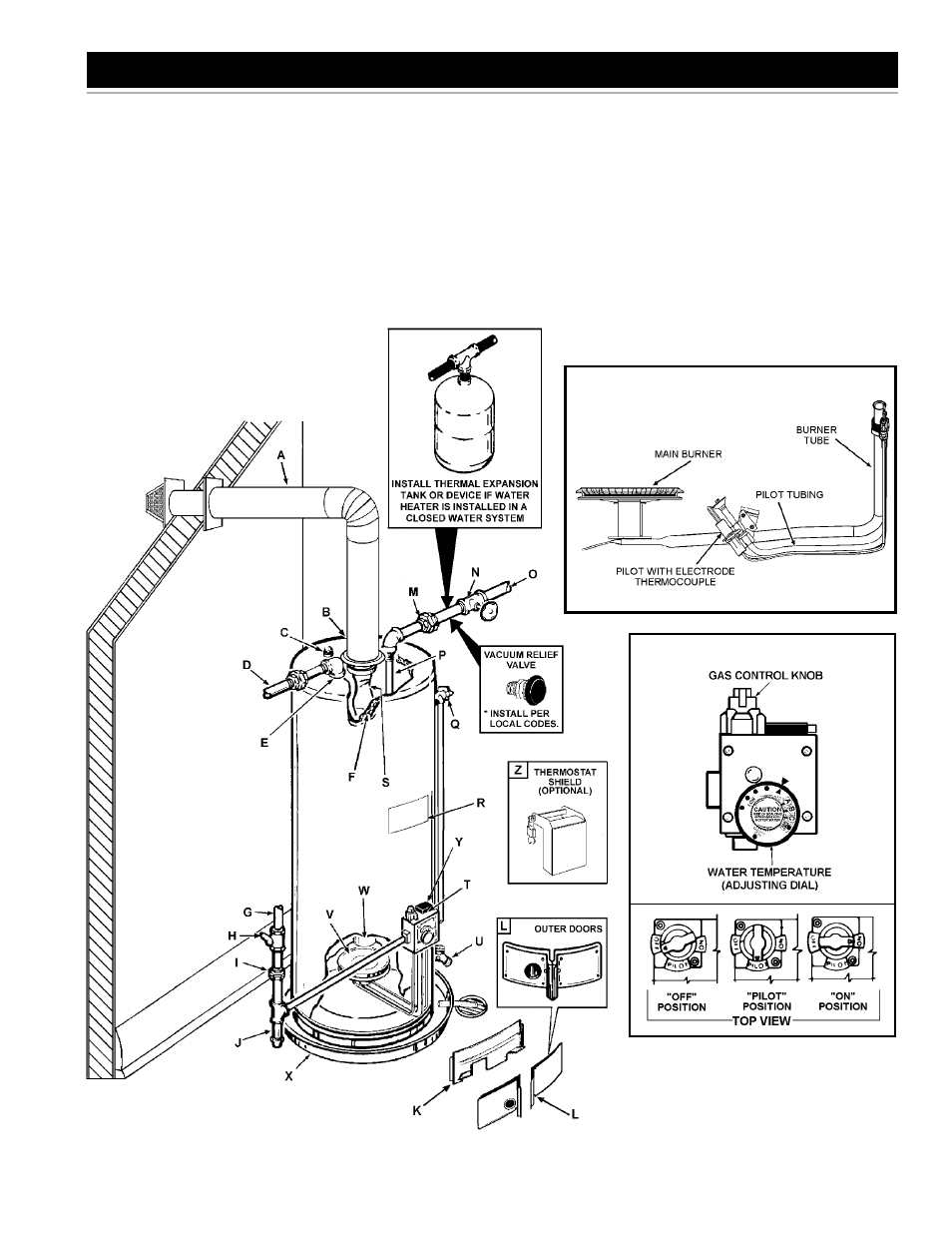

GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Assembly
B Flue Outlet
C
Anode
D Hot Water Outlet
E Outlet
F
Insulation
G Gas Supply
H Manual Gas Shut-off Valve
* INSTALL IN ACCORDANCE
WITH LOCAL CODES.
* DRIP LEG AS REQUIRED
BY LOCAL CODES.
FIGURE 1.
I Ground Joint Union
J Drip Leg (Sediment Trap)
K Inner Door
L
Outer Doors with Gaskets
M Union
N Inlet Water Shut-off Valve
O Cold Water Inlet
P Inlet Dip Tube
Q Temperature-Pressure Relief Valve
R Rating Plate
S
Flue Baffle
T Thermostat
U Drain Valve
V Pilot and Main Burner
W Flue
X Drain Pan
Y Piezo Ignitor
Z Thermostat Shield (optional)
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS.
(T) THERMOSTAT
(V) PILOT & MAIN BURNER
