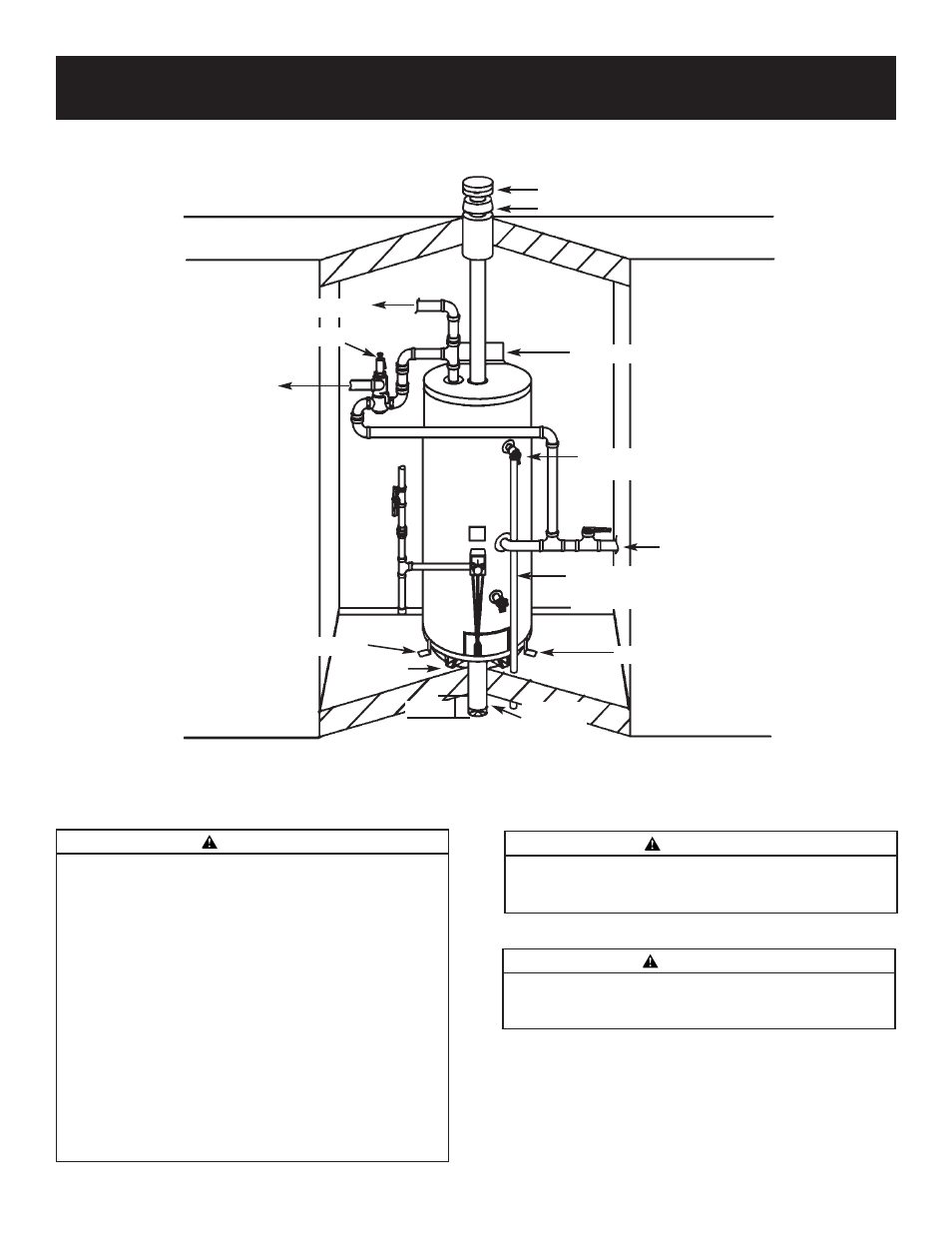

Typical Installation
MOUNTING BRACKET
COLD WATER INLET
HOT WATER OUTLET
TEMPERED WATER OUTLET
VENT CAP
GAS SUPPLY TEMPERATURE-PRESSURE
RELIEF VALVE
*MIXING VALVE
DISCHARGE PIPE
(Do not cap or plug. Must terminate beneath
manufactured home, unless drain pan is installed.)
MOUNTING BRACKET
DRAIN PAN
MOUNTING BRACKET
This appliance has been design certified as complying with ANSI Z21.10.1 • CSA 4.1 water heater standard and is consid-
ered suitable for water (potable) heating only.
NOTE: To protect against untimely corrosion of hot and
cold water fittings, it is strongly recommended that di-elec-
tric unions or couplings be installed on this water heater
when connected to copper pipe.
ROOF JACK
3 1 ⁄
2
″″ MIN.
DIAMETER
6
1 ″″ MIN.
* WARNING
HOTTER WATER CAN SCALD: Water heaters are intend-
ed to produce hot water. Water heated to a temperature
which will satisfy clothes washing, dish washing, and
other sanitizing needs can scald and permanently injure
you upon contact. Some people are more likely to be per-
manently injured by hot water than others. These include
the elderly, children, the infirm, or physically/mentally
handicapped. If anyone using hot water in your home fits
into one of these groups or if there is a local code or state
law requiring a certain temperature water at the hot
water tap, then you must take special precautions. In
addition to using the lowest possible temperature setting
that satisfies your hot water needs, a means such as a
mixing valve, should be used at the hot water taps used
by these people or at the water heater. Mixing valves are
available at plumbing supply or hardware stores. Follow
manufacturers instructions for installation of the valves.
Before changing the factory setting on the thermostat,
read the “Temperature Regulation” section.
WARNING
Toxic chemicals such as used for treatment of boilers or
non-potable water heating appliances shall never be
introduced into a potable water space heating system.
WARNING
This water heater shall not be connected to any heating
systems or component(s) previously used with a non-
potable water heating appliance.
