14
Installing the New Water Heater (cont’d)
6. The intake air vent piping can be installed with no
more than 3 elbows.
CUTTING OPENING THROUGH AN OUTSIDE WALL
AND COLLAR INSTALLATION
Determine the location of the opening in the wall and cut
a 3 3 /
4
″ hole (30 & 40 gal.) or 4 3 /
4
″ hole (50 gal.) through
an outside wall.
The 3 ″ or 4″ PVC, ABS or CPVC Schedule 40 vent pipe can be
run from the water heater through the wall or from the wall to
the water heater, whichever is most convenient. The vent pipe
must extend a minimum of 1 1 ⁄
2
″ through the exterior wall.
Note that the inside collar must be slipped over the vent pip-
ing before locating the pipe through the wall. Before securing
the inside and outside collars to the wall, use a silicone sealer
between pipe and opening to insure a water and air tight seal.

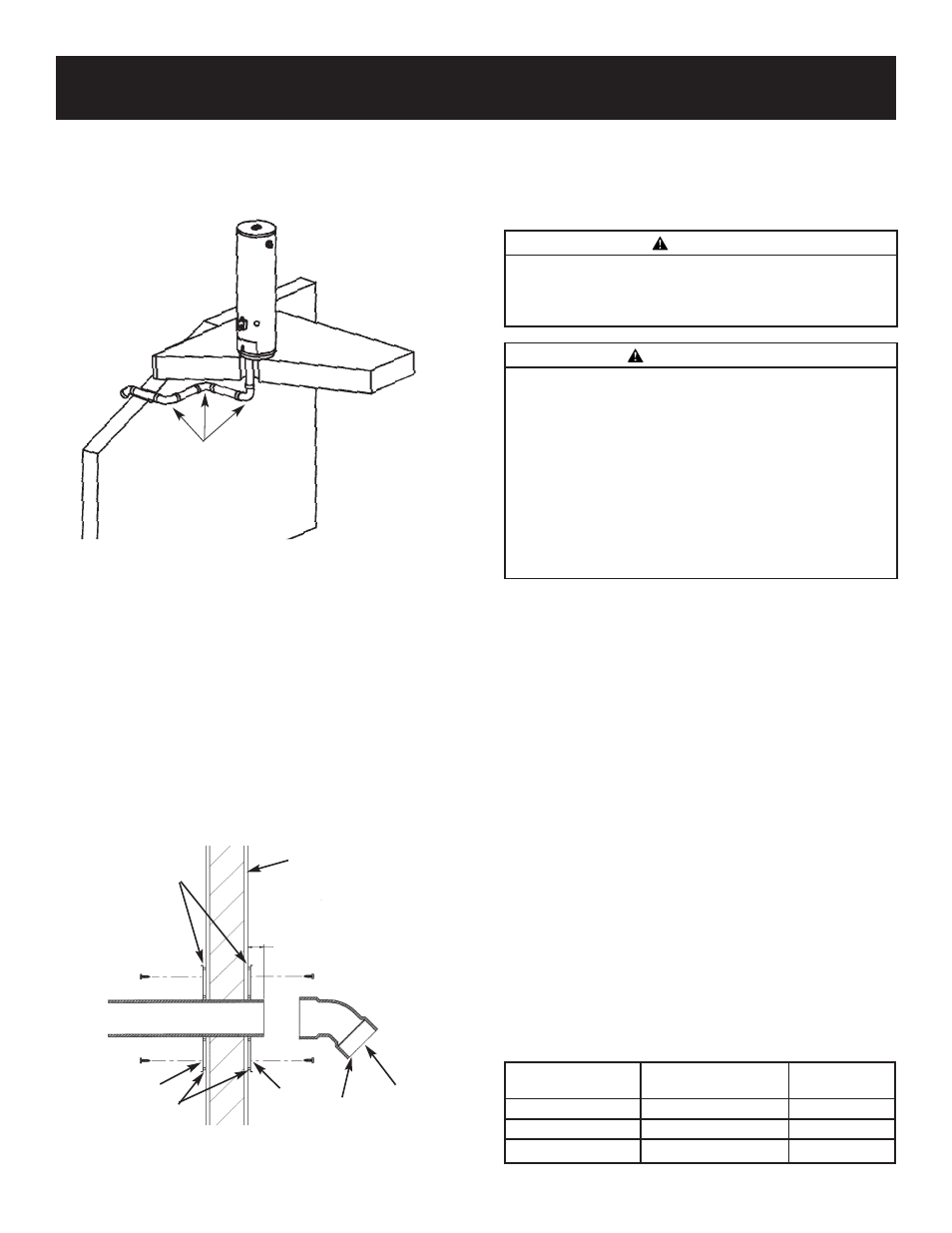

INSTALLATION SHOWING USE OF PVC, ABS OR
CPVC PIPE
EXTERIOR WALL SILICONE
SEALER
SILICONE SEALER
SCREW
SCREW
SCREW
SCREW
SCREEN COLLAR
VENT CAP MUST
BE POSITIONED
DOWNWARD
1 1 ⁄ 2
″″ MIN. EXTENSION
THROUGH
EXTERIOR WALL
COLLAR
APPROXIMATE SETTING TIME FOR 2 1 ⁄
2
″ TO 4″ PIPE
JOINTS
MOVEMENT COMPLETE
OF JOINT SET
90°F to 150°F 3 ⁄
4
hr. 8 hrs.
50°F to 90°F 1 hr. 15 hrs.
0°F to 50°F 1 1 ⁄
3
hr. 18 hrs.
Cementing PVC, ABS OR CPVC Pipe and Fittings
Read and observe all safety information printed on
primer, cleaner, and cement containers.
DANGER
Primer, cleaner, and cements are extremely flammable.
They are harmful or fatal if swallowed. The vapors are
harmful. They may irritate eyes and skin and can be
absorbed through the skin.
PRECAUTIONS
Always store primers, cleaner, and cements in cool, dry,
well ventilated places. Do not store them near heat,
sparks, or flames. Keep containers closed. Use them in
well ventilated areas. Wear impervious clothing while
handling. Do not smoke, eat, or drink while handling.
Wash thoroughly after handling and before eating. Wear
eye protection when handling. If swallowed, drink water,
do not induce vomiting, and call a physician or poison
control center immediately. If inhaled, get fresh air and
seek medical attention if ill feelings persist. In case of eye
and skin contact, immediately flush with plenty of water
for 15 minutes and seek medical attention if irritation
persists. KEEP OUT OF REACH OF CHILDREN.
All primers, cleaners, and cements must meet all local
codes and applicable standards of the American Society
For Testing Materials Standards.
Before using primers, cleaners, and cements, stir or shake,
making sure contents are liquid. Do not use if found to be
lumpy or jelly-like.
1. Cut pipe ends squarely removing all burrs and dirt.
2. Dry fit pipe and fittings to be connected for proper fit.
3. Clean pipe and fitting with a primer/cleaner.
4. Apply a thin coat of cement to fitting, avoiding
puddling inside.
5. Apply a liberal coat of cement to pipe leaving no voids.
6. QUICKLY assemble parts while cement is fluid! If you
wait too long, re-coat pipes.
7. Push pipe completely into socket of fitting, turning as it
goes until it bottoms.
8. Hold pipe and fitting together for 30 seconds. Then
carefully clean off excess with a cloth. Allow connec-
tions a sufficient time to cure before disturbing.
9. Remember that vent pipes must be adequately and
securely supported.
MAX. 3 ELBOWS
AIR INTAKE THROUGH AN OUTSIDE WALL (cont’d)
NOTE: Wall collars are for asthetic purposes and are not
required for the heater to operate.
