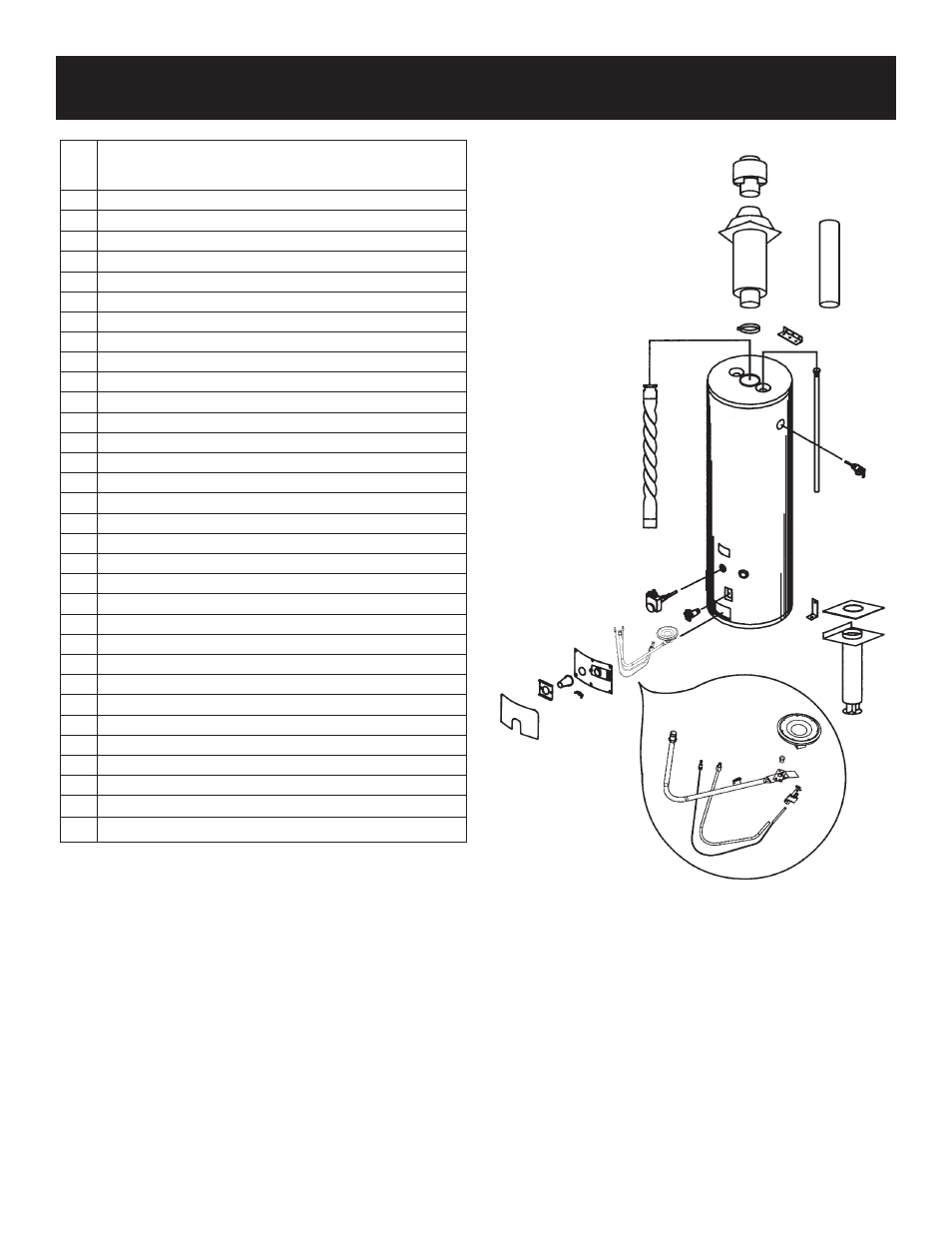

Repair Parts
KEY
NO. PART DESCRIPTION
1 Vent Cap
2 10 ″ Extension Pipe (Optional)
3 Roof Jack 12
″ (9002964)
3 Roof Jack 32 ″ (9002965)
3 Roof Jack 60 ″ (9002966)
3 Roof Jack 95 ″ (9002967)
4 Angle Bracket
5 Securing Clamp Assembly
6 Anode Rod
7 Flue Baffle
8 Temperature-Pressure Relief Valve
9 Drain Valve
# Drain Valve Washer (17/32 ″x13/64″x1/8″ thick)*
10 Outer Door
11 Air Duct Assembly (12 ″ to 24″ Long)
12 Combustion Chamber Door
13 Wing nut
14 Gas Control Valve
15 Burner
16 Pilot Burner (Natural Gas)
16 Pilot Burner [Propane (L.P). Gas]
17 Burner Orifice (Natural Gas)
17 Burner Orifice [Propane (L.P). Gas]
18 Pilot Tubing w/Fittings
19 Angle Bracket (2 Required)
20 Thermocouple
21 Burner Manifold
22 Grommet – Manifold
23 Bracket – Manifold
24 Gasket – Air Intake
# Optional 3 ″ Outside Wall Intake Air Vent Kit 9002986
# Optional 4 ″ Outside Wall Intake Air Vent Kit 9002987
Now that you have purchased this water heater, should a need ever exist for repair parts or service, simply contact the com-
pany it was purchased from or direct from the manufacturer listed on the rating plate on the water heater.
Be sure to provide all pertinent facts when you call or visit.
Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly.
The model number of your Gas Water Heater will be found on the rating plate located above the gas control valve.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
MODEL NUMBER TYPE GAS [NATURAL OR PROPANE (L.P.)]
SERIAL NUMBER PART DESCRIPTION
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
1
2
16
15 13
12
11
4
5
6
10
8
7
9
3
14
29
22 23
17
18
19
21
20
24
#Not Shown
*Also available at most hardware stores.
