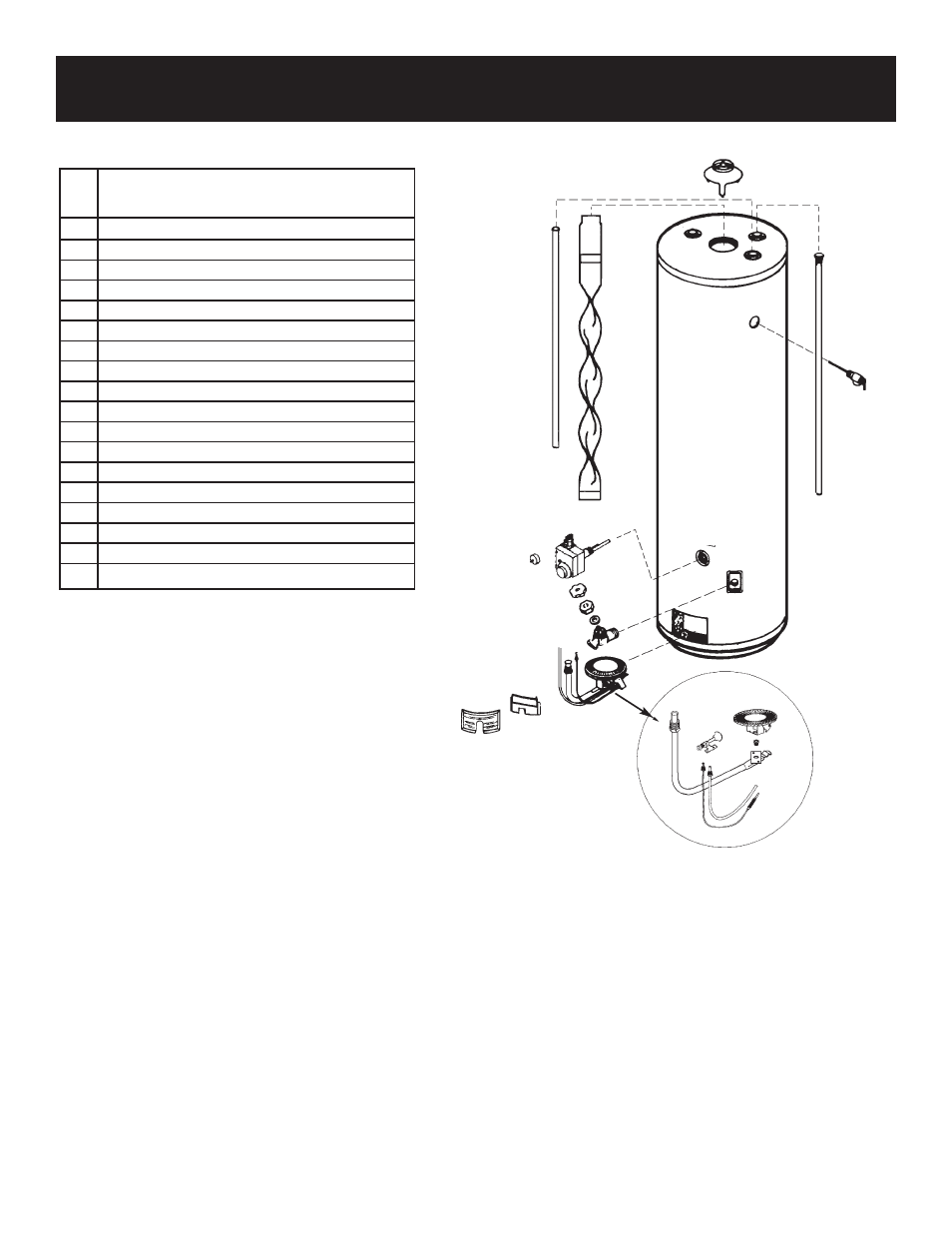

Repair Parts

*These parts are available at most hardware stores.

# Not

I

llustrated

Now that you have purchased this water heater, should a need ever exist for repair parts or service, simply contact the com-

pany it was purchased from or direct from the manufacturer listed on the rating plate on the water heater.

Be sure to provide all pertinent facts when you call or visit.
Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly.
The model number of your Gas Water Heater will be found on the rating plate located above the gas control valve.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

MODEL NUMBER

TYPE GAS [NATURAL OR PROPANE (L.P.)]

SERIAL NUMBER

PART DESCRIPTION

THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.

KEY
NO.

PART DESCRIPTION

1

Temperature-Pressure Relief Valve

2

Primary Anode Rod

3

Drain Valve*

4

Drain Valve Washer (

17

32

″ x

13

64

″ x

1

8

″ thick)*

5

Pilot

6

Thermocouple*

7

Pilot Tubing w/Fittings

8

Burner Orifice

9

Manifold

10

Burner

11

Outer Door

12

Inner Door

13

Gas Control Valve

14

Temperature Adjustment Knob*

15

Dip Tube

16

Flue Baffle

17

Draft Hood

#

Manual

13

14

15

16

17

1

2

3

4

5

6

7

8

9

10

11

12
