A.R.I. EnM-ODOR EN User Manual
Page 2
A.R.I. FLOW CONTROL ACCESSORIES Ltd.
www.arivalves.com [email protected] Tel: 972-4-6761899

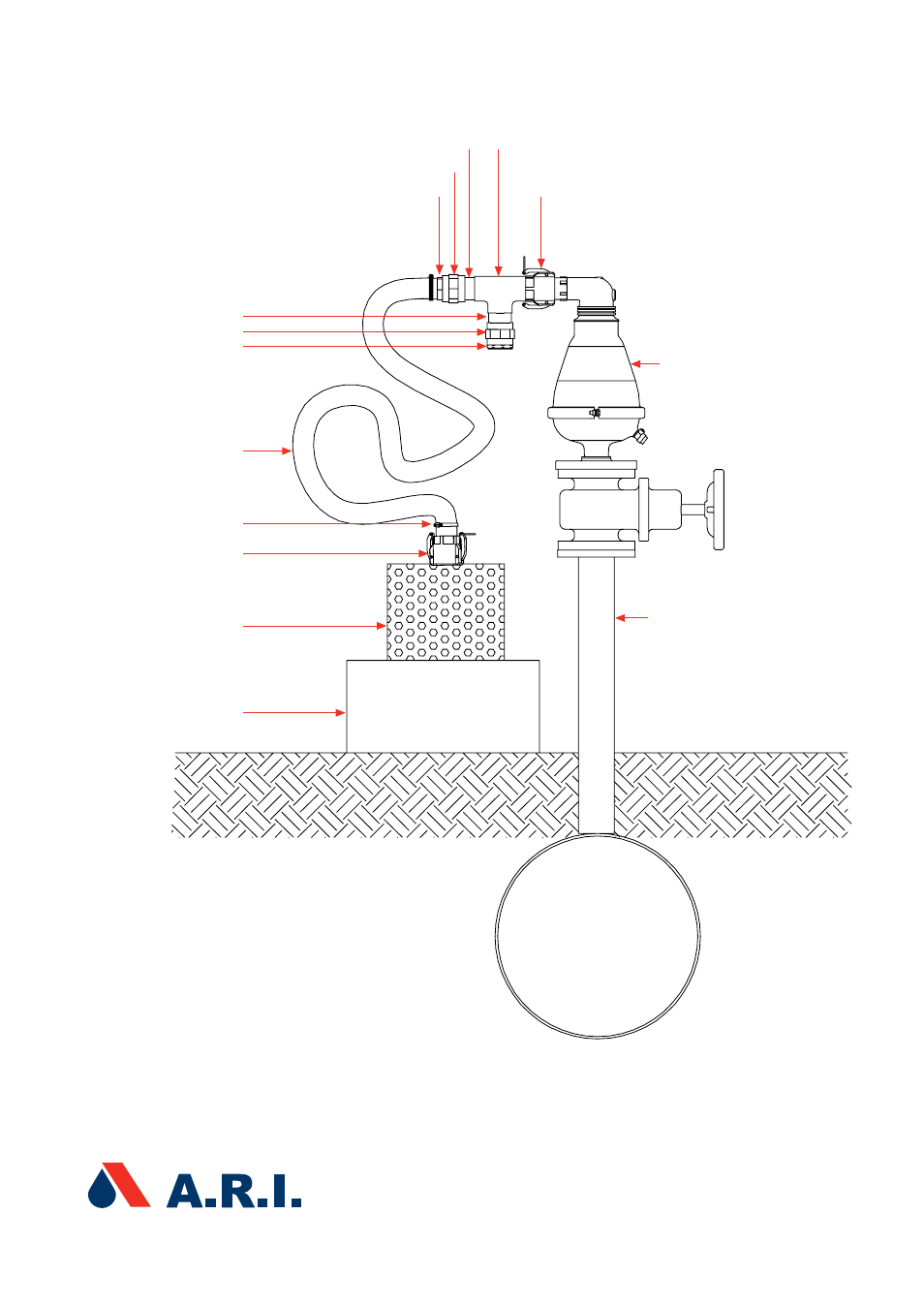

INSTALLATION DRAWING
MAINTENANCE INSTRUCTIONS ODOR
EnM-ODOR-13
3” Pipe
Combination Air Valve
For Wastewater
D-020 / D-025
Concrete Support Block
Filter
Coupler Hose Type C
Clamp
Hose
Check valve One Way In
Socket Threaded 1½”
Screen Assembly
Check valve One Way Out
Socket Threaded 1½"
Threaded Hose Nozzle 1½"
Threaded "T" 1½"
Male Threaded Coupler -B 1½" BSP
