UFR (Unmeasured-Flow Reducer) – Instructions for
Installation.
General – The "UFR - Unmeasured-Flow Reducer" should be installed in line, either in a
horizontal or vertical position, before or after the water meter. It is very important that the UFR
is installed so that the arrow on the UFR is in the direction of water flow.
The UFR - Unmeasured-Flow Reducer, does not require regular maintenance.
Options for installation (by model):
1. UFRs with a union nut connection can be connected directly to the water meter and
the threaded male or female connection on the other side of the UFR, directly to the
piping.
2. UFRs, with threaded male or female connections on either side of the UFR, can be
installed directly to the piping.
Installation instructions:
1. Installation of the UFR with a union nut connection directly to the water meter:
A. Close the shut off valves upstream and downstream of the region that the
UFR is to be installed.
B. Match the direction of the arrow on the UFR with the normal direction of
water flow in the piping.
C. Connect
the
UFR’s male or female threaded connections to the piping, seal
using a sealant that is generally used for potable water systems.
D. Insert the attached seal (fiber, rubber or plastic) into the union nut of the
UFR, connect the union nut to the water meter, and tighten the union nut to
the water meter.
E. Open the shut off valves upstream and downstream and check for seal
tightness.

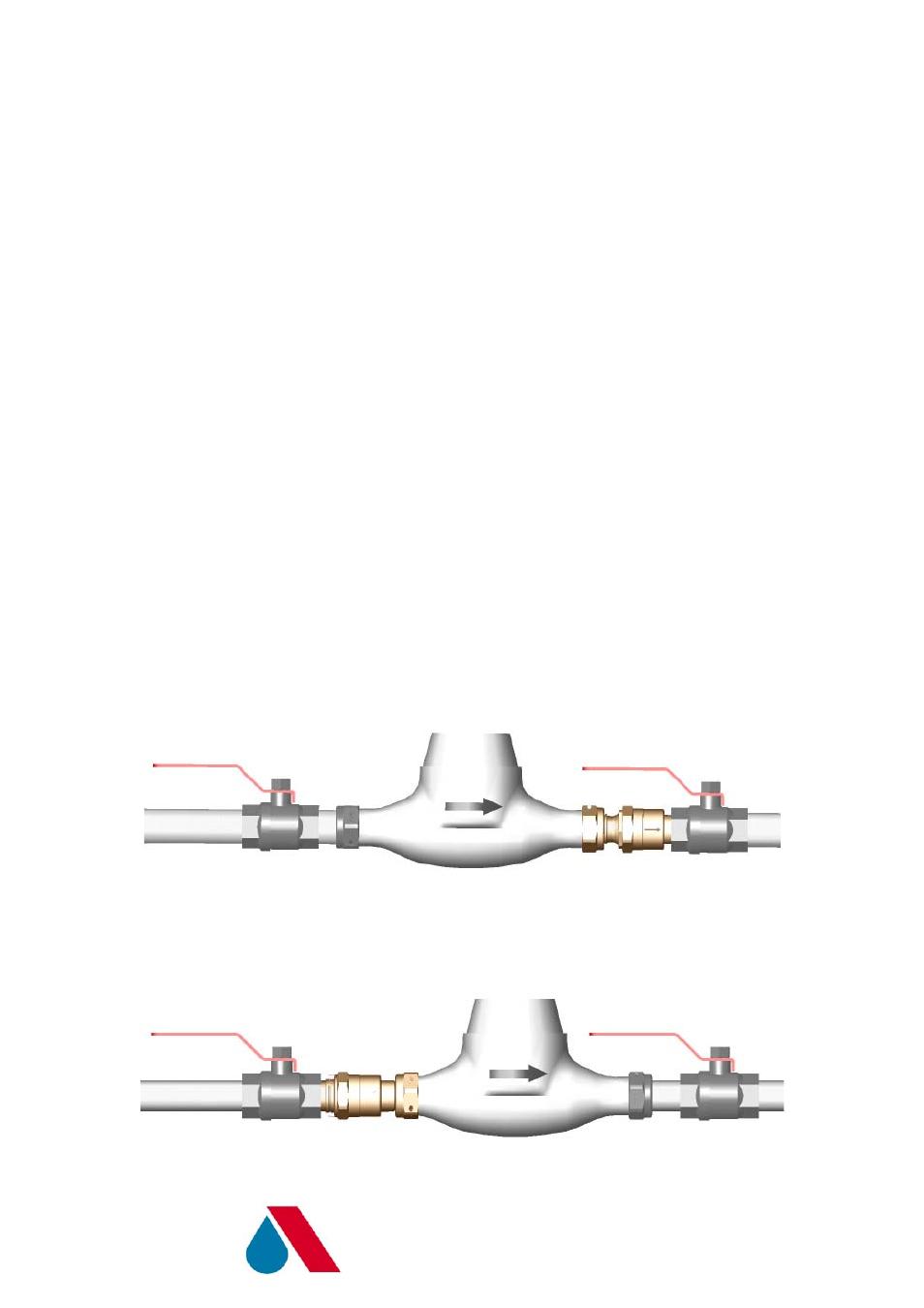

Figure 1 Connection of UFR with union nut connection, downstream of the water meter.
Figure 2 – Connection of UFR with union nut connection, upstream of the water meter.
