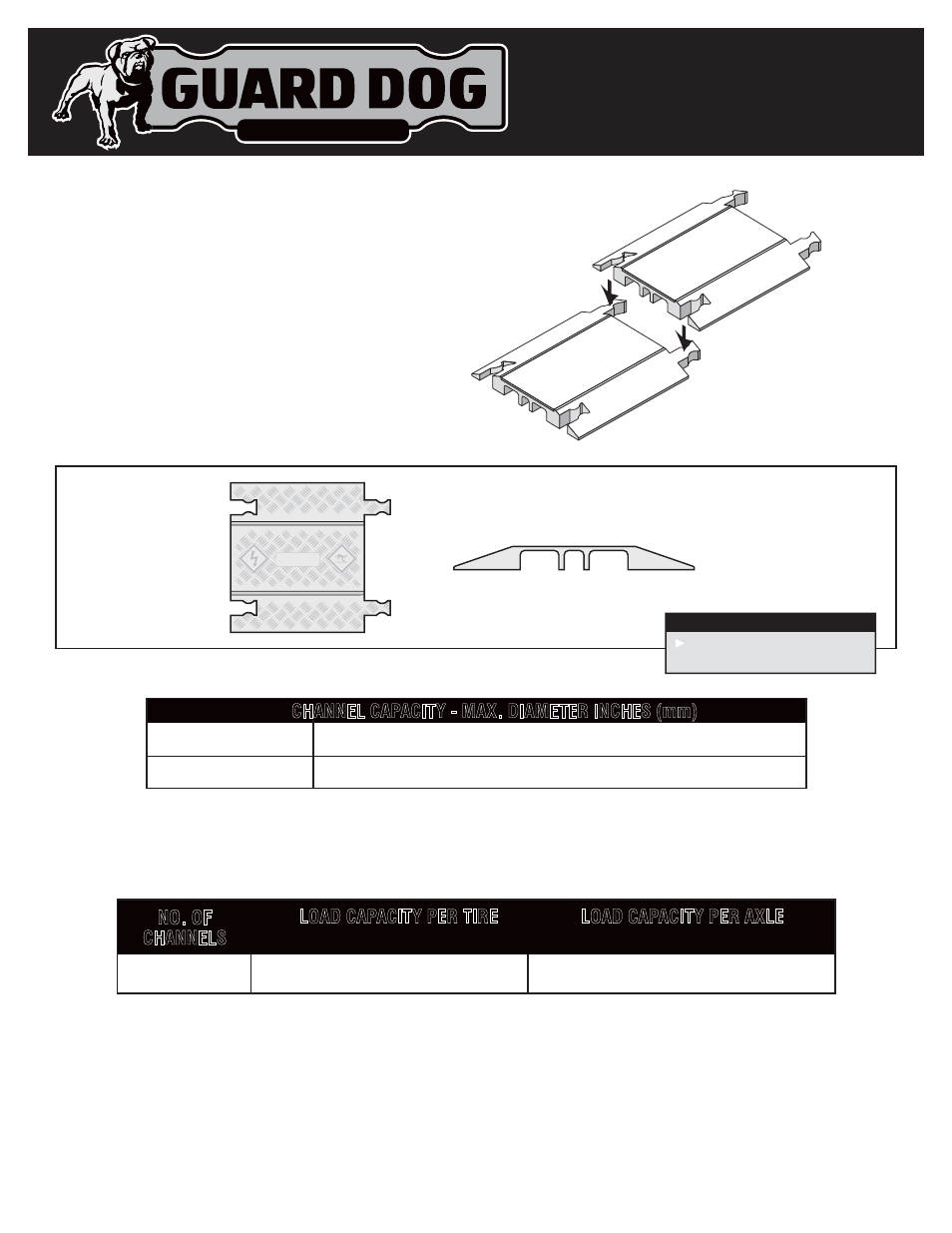

HEAVY DUTY 3 CHANNEL
DROP OVER SYSTEM
ASSEMBLY:
• Inspect areas for safety hazards
• Place protector over cables
• Assemble sections by aligning female connectors over male connectors
• Press with foot to secure female connectors to male connectors
• Test installation for intended use
• Periodically inspect installation
CHANNEL CAPACITY:
LOAD CAPACITY:
The Cable/Hose Protection System has different load supporting capabilities depending on type of vehicle and
temperature. Suitability must be verified by testing under actual conditions.
OPERATING TEMPERATURE:
-40
˚
F to 120
˚
F (-40
˚
C to 48
˚
C)
CHEMICAL RESISTANCE:
Tested for compatibility with common motor oils, gasoline and diesel fuel.
Limited resistance to brake fluids and other chemicals.
MATERIAL:
UV-stabilized polyurethane elastomer
NO. OF
CHANNELS
3 Channel
10,500 lbs./Tire (4,763 kg)
LOAD CAPACITY PER TIRE
MAX LOAD 70
˚
F (21
˚
C)
21,000
lbs./Axle (9,526 kg)
LOAD CAPACITY PER AXLE
MAX LOAD 70
˚
F (21
˚
C)
CABLE/HOSE MANAGEMENT COMPONENTS
CABLE PROTECTORS
®
ASSEMBLY INSTRUCTIONS
Simply interlock with
Dog Bone connectors to
extend protection length.
CHANNEL CAPACITY - MAX. DIAMETER INCHES (mm)
2 Channels
1 Channel (center)
3.2 in. (81.6 mm) width x 1.56 in. (39.8 mm) height
1.65 in. (42.1 mm) width x 1.56 in. (39.8 mm) height
Drop over protectors do not prevent
abrasion to cable from below.
WARNING!
#ZIS-GD3-DO
Ver: 2/11
