Installation and Owner’s Manual | TP Series Solar LED Lighting System
2.6 Mounting Battery Enclosure (B.E.) and B.E. Channel
1. Secure B.E. channel using 2x 3/4-10 x 12” bolts.
2. Loosely fasten 4x 1/4”–20 x 1/2” hex head bolts to the B.E. Channel.
3. Route PV and LED cables through B.E. into the access holes on the battery box
(see next step).
4. Mount B.E. on bolts and securely tighten each bolt. (Figure 8).
Helpful Hint #2: Wrap harness
plugs together with tape to
easily pull them through the
drilled hole. Helpful Hint #3: If mounting
Battery Enclosure near base of
pole, extension harnesses will be
supplied

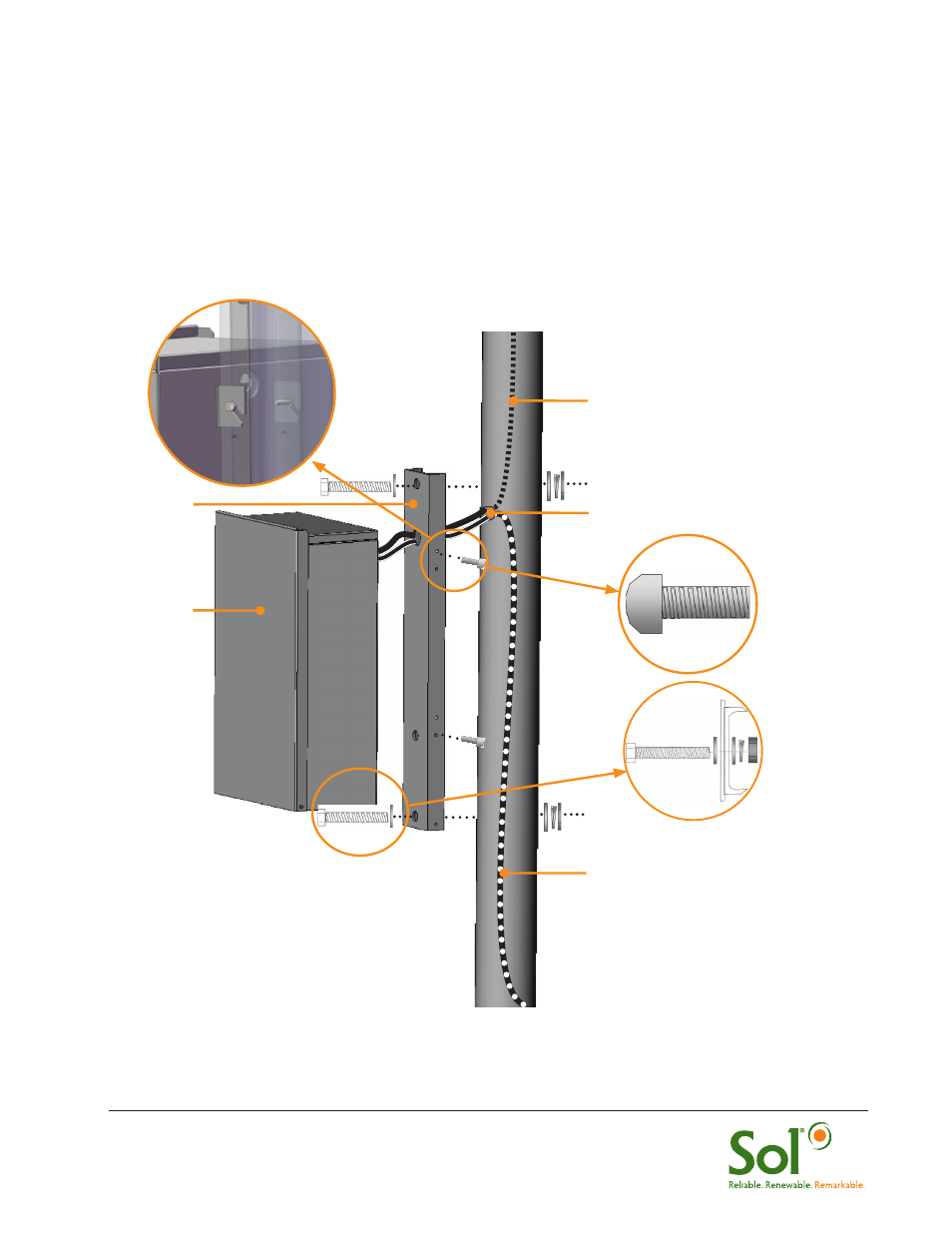

FIGURE 8 MOUNTING B.E. & ROUTING CABLES
2x
4x
Wiring hole for PV &
LED harness
PV Harness to/from B.E.
Luminaire Harness to/from B.E.
Battery Enclosure
(B.E.)
B.E. Channel
