LED Fixture Precautions
The Cobrahead and Shoebox fixtures contain the following warning label:
This lamp (LED) is in excess of the Exempt Risk Group defined in IEC
62471:2006-07. This lamp (LED) has been found to be in the Risk Group 2
classification at an exposure distance of 20 cm or less from the glass surface
of the lamp. Care should be taken to avoid exposure when operating and
installing this lamp.
2.9 Installing the NRGLife™ Battery
Do not allow ends of the wires to touch each other or grounded metal parts
while the harness is being connected.
1. Connect the red terminal of the battery harness to the positive (red) terminal of
the battery (Figure 13).
2. Connect the black terminal of the battery harness to the negative (black) terminal
of the battery (Figure 13).
Connect the positive (red) terminal first. Prevent the free (unconnected)
ends of the battery harness from touching other metal parts so they
will not accidentally cause a short.
3. Tighten the connection on both terminals, then slide the red battery terminal
boot over the positive terminal.
4. Place the battery and the connected battery harness in the battery box.
If you receive a Deka battery, a terminal adaptor kit will be provided with
the battery.

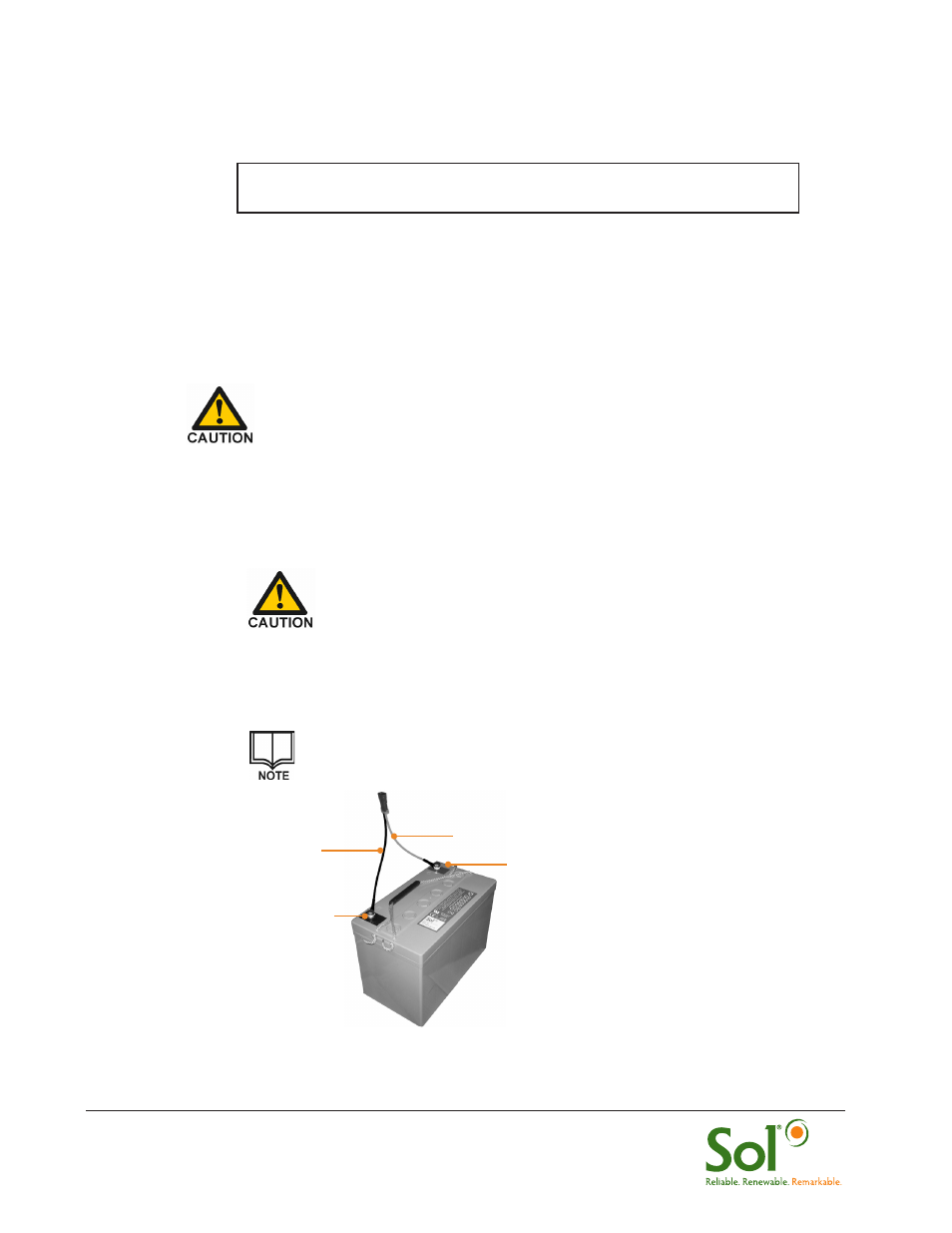

FIGURE 13 CONNECTING THE BATTERY HARNESS TO THE BATTERY
Positive (Red)
Battery Terminal
Negative (Black)
Battery Terminal
Red Wire
Black Wire
CAUTION: Possible Hazardous LED Radiation Emitted From This Product.
Do Not Stare Directly Into Beam. Disconnect Power Before Servicing.
