6 rev.1011 MKTG-IM-TP-12-002
Installation and Owner’s Manual | TP Series Solar LED Lighting System
3. Place tenon adaptor over TP mount and ensure PV module is angled at 45° or
designated angle for your location. Top bolt determines angle.
4. Secure tenon adaptor to TP mount with 2 x 5/8-11 x 6” screws. Connect MC
connectors of PV Arrays and PV harness, then route through tenon adaptor
(Figure 4).
2.4 Mounting TP Assembly to Your Pole
1. Place TP Assembly with tenon adaptor into pole (facing Equator) and match drill
hole in tenon with tenon adaptor.
2. Secure with a 5/8-11 x 6” bolt and 3x 3/8-16 x 1/2” cup point set screws
(Figure 5).

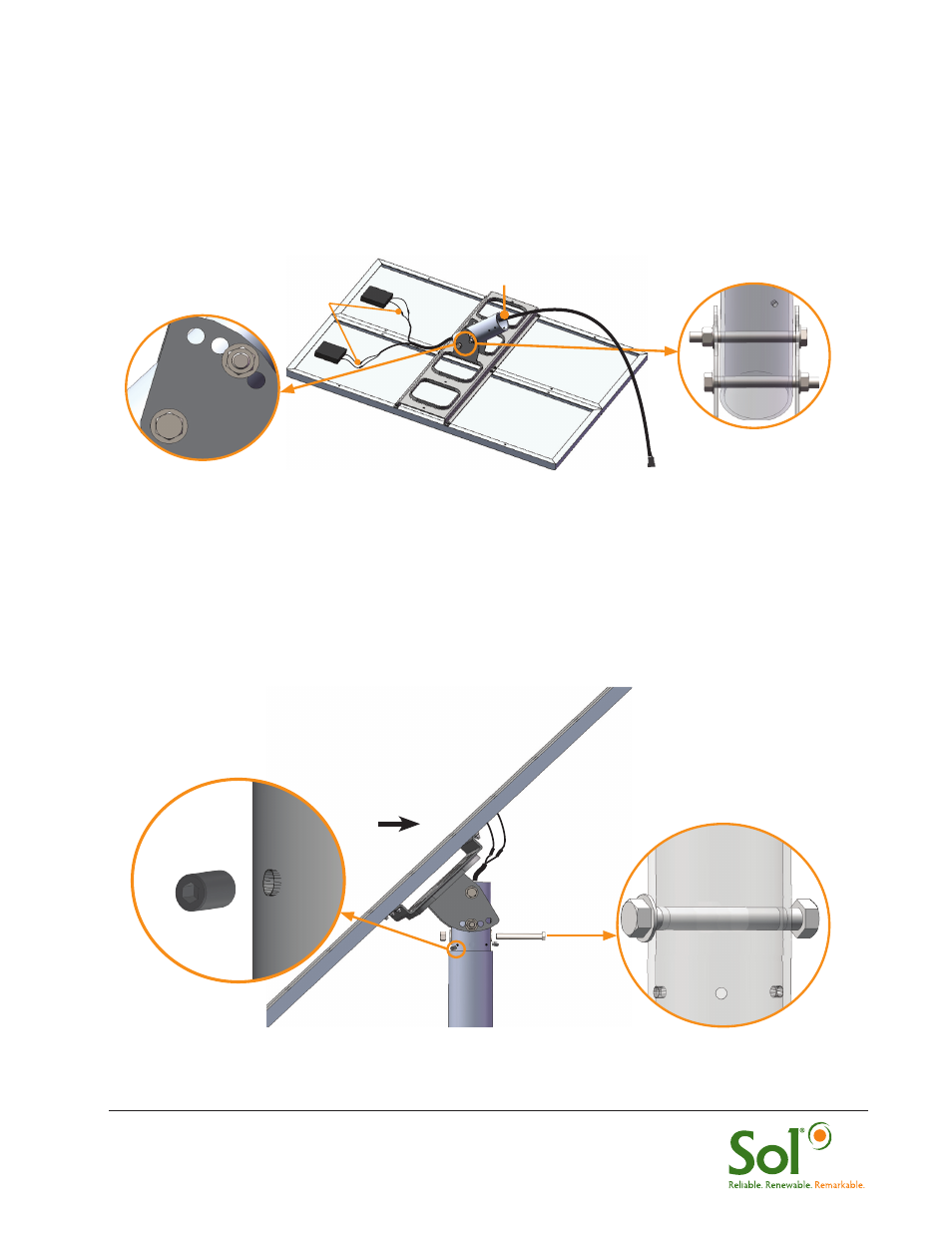

FIGURE 4 SECURING TP TENON ADAPTOR
45°
30°
60°
15°
MC Connectors
PV Harness can be routed outside
or through tenon adaptor and pole.
FIGURE 5 MOUNTING TP ASSEMBLY TO POLE
PV Modules- Always facing
EQUATOR (South in Northern Hemisphere)
N S
x 3
